375kva 300kw Cummins Diesel Generators With Stamford Alternator Silent Type

Place of Origin WUXI , China
Brand Name POWER FRIEND
Certification ISO9001/ISO14001/CE/PVOC Certification
Model Number B-CC375S
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Plywood case
Delivery Time 25 working day
Payment Terms L/C, T/T
Supply Ability 500 Set / Month
Product Details
Rated Power 300kw / 375kva Standby Power 330kw / 413kva
Voltage 220/380v 230/400v 240/415v Engine Cummins / Original Cummins
Alternator Original Stamford / Mecc Alte Controller Deepsea, Smartgen, Harsen For Optional
MCCB ABB Or Delixi Cooling System Water Cooled
Generator Type Silent Type / Soundroof Type ATS Optional
Warranty 1 Year Or 1000 Hours
High Light

cummins power generator

,

cummins diesel genset

Leave a Message
Product Description

About of our cummins diesel generators workshop / test room photos:



375kva 300kw Cummins Diesel Generators With Stamford Alternator Silent Type 0


Cummins diesel generator with stamford alternator 300kw Scope of supply:



1. Engine / Alternator / Radiator unit on a common baseframe

2. Integral rubber anti- vibration mounts

3. Lead acid battery & industrial silencer

4. Exhaust flexible & industrial silencer

5. Standard factory load test and test report

6. 1 set of operating manuals

7.  Controller panel: DeepSea / SmartGen and so on brand



 375kva 300kw cummins diesel generator specification:



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model B-CC375S
1.2 Prime at 50HZ, 40℃ ambient 300KW 375KVA
1.3 Standby at 50HZ, 40℃ ambient 330KW 412KVA
1.4 Rated Gen-set output 230/400V  50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 4500×1650×2550mm
1.7 Weight 5177kg
1.8 Fuel consumption 100% prime load 83L/h
1.9 Total heat radiated to ambient 76KW
1.10  Noise Level at 7m (Normal/Super) 78/70dB
1.11 Structure of Gen-set

The Gen-set adopt

 integrative structure,

 engine is fix on high strength

 steel basic frame, anti

vibration instrument between

the engine and basic frame,

 cooling fan have protecting

 cap, control cabinet and

 circuit breaker installed

 on Gen-set.

1.12 Control system (Optional)

Basic control panel or

Advanced control panel

 with automatically

start-up function

 and other function.

2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Cummins
2.2 Engine Model KTA19-G2
2.3 Governor/Class Electrical
2.4 Cylinder NO. 6
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration

Turbocharged

/Aftercooled

2.9 Cooling mode

Radiator cooled

 (enclose water)

2.10  Bore and stroke 159×159mm
2.11 Compression ratio 14.5:1
2.12 Displacement 19L
2.13 Engine Prime Power at 1500rpm 336KWm
2.14 Engine Standby Power at 1500rpm 369KWm
2.15 Battery capacity 190A/hr
2.16 Starting/Min temperature 7℃
2.17 Lubrication oil capacity 50L
2.18

Coolant  capacity  -

 radiator  and engine (40℃)

91L
2.19 Exhaust temp - full load prime 524℃
2.20  Exhaust gas flow - full load prime 4298m3/h
2.21 Exhaust gas back pressure max 76mmHg
2.22 Air flow - radiator (40℃  ambient) 10.6 m  3/s
2.23 Pusher fan head (duct allowance) 40℃ 13mmH 2O
2.24 Air   intake   -   engine-   full   load prime 1555m3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type

#0 Diesel

(Natural temperature)

2.27 Filter system

Adopt  whole  changeable

 lubricating  oil, fuel

   filter and air filter

2.28 Exhaust system

Adopt  industrial  high

  efficiency  muffler

 and ripple pipe

3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model Stamford/HCI444FS
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10  Phase & wires 3 phase 12 wires
3.11 Rated currency 548.5A
3.12 Efficiency 0.937
3.13 Insulation class H
3.14 Protection class IP23

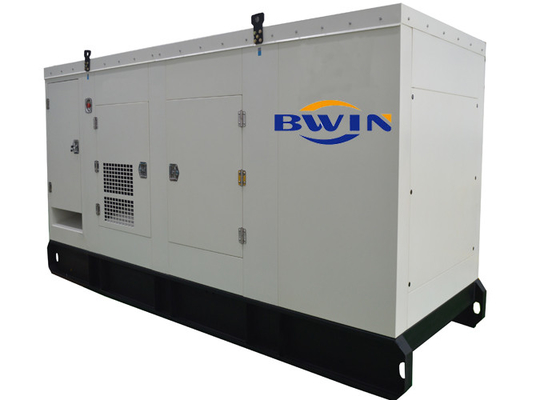

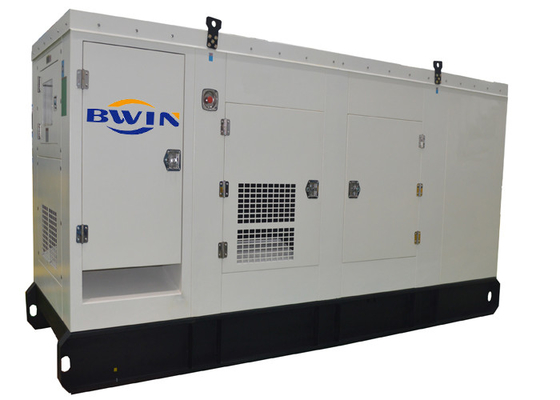

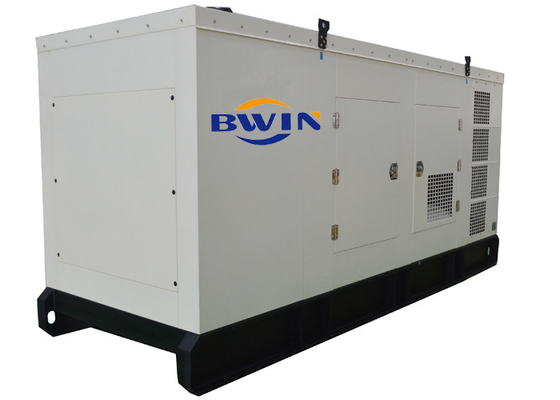

Photos of 375kva 300kw silent type generators:



375kva 300kw Cummins Diesel Generators With Stamford Alternator Silent Type 1





Advantages:



1. Original Cummins engine

2. Original Stamford alternator

3. Super silent type

4. Big base fuel tank keep working 8 hours /24 hour and 72 hours



Cummins engine in stock photos:



375kva 300kw Cummins Diesel Generators With Stamford Alternator Silent Type 2
