FAWDE 30KVA 24KW Silent Generator Set Electric Start For Boat USE

Place of Origin WUXI
Brand Name POWER FRIEND
Certification ISO9001/ISO14001/CE/PVOC
Model Number PF-FW33S
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details poly wooden case
Delivery Time 25 days
Supply Ability 500 sets / Month
Product Details
Power(Prime/Standby) 30KVA/ 24KW Frequency 50HZ / 60HZ
Current 50A Voltage 220/380V 230/400V
Engine Cummins / 4B3.9-G1 Controller Smartgen / DeepSea/ Compa
MCCB Delixi /ABB Sound Level/db 63dB 7 Meter
Warranty 1 Year Or 1000 Hours Alternator Original Stamford
High Light

power generating set

,

silent diesel generators

Leave a Message
Product Description



FAWDE 30KVA ultra silent generator set 63dB electric start



30KVA FAWDE silent generator specification:



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model PF-FW33S
1.2 Prime at 50HZ, 40℃ ambient 24KW 30KVA
1.3 Standby at 50HZ, 40℃ ambient 26KW 33KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) Open: 1750*800*1100,
Silent: 2300*1120*1200
1.7 Weight Open: 800kg, Silent: 1200kg
1.8 Fuel consumption 100% prime load 7
1.9 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
2 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand FAWDE
2.2 Engine Model 4DX21-45D
2.3 Governor/Class Mechanical or Electronic
2.4 Cylinder NO. 4
2.5 Engine build Line
2.6 Emission compliant Stage II
2.7 start-up method 24V, electric
2.8 Air intake type Natural
2.9 Cooling mode Water Cooling
2.10 Bore and stroke 102×118 mm
2.11 Compression ratio 17:01
2.12 Displacement 3.86
2.13 Engine Prime Power at 1500rpm 33KWm
2.14 Engine Standby Power at 1500rpm 36KWm
2.15 Lubrication oil capacity 12.5L
2.16 Oil consumption 0.06
2.17 Dry weight of base 350Kg
2.18 Dry weight of Gen Pac 375Kg
2.19 Overall dimension(G.P) 1155×680×835(mm)
2.2 Overall dimension(base) 810×680×800(mm)
2.21 27℃ air consumption ( m³/ min) 2.6
2.22 Fuel type #0 Diesel (Natural temperature)
2.23 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.24 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTERNATOR
3.1 Alternator Model PI 144G
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 45.1A
3.12 Efficiency 0.862
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1,NEMA1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 156㎏



Description:


1. Chinese famous brand --FAW engine

2. Alternator: Italy Mecc alte / Stamford

3. Controller: Deepsea or Smartgen with or without AMF.

4. Options: remote controller, synchronizing.

5. ATS cabinet

6. Type: Silent type, weather proof, Trailer type

Applications:

1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake

Competitive Advantage:


1. User friendly with low emissions

2. More power reserve, better performance

3. Fast delivery. Big quantity of Engines in stock.

4. Good parts commonality

5. Original EURO ITALY engine , good quality , good price.

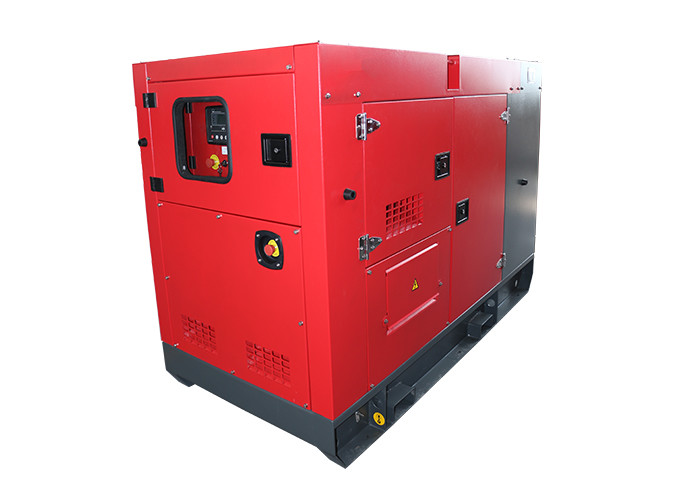

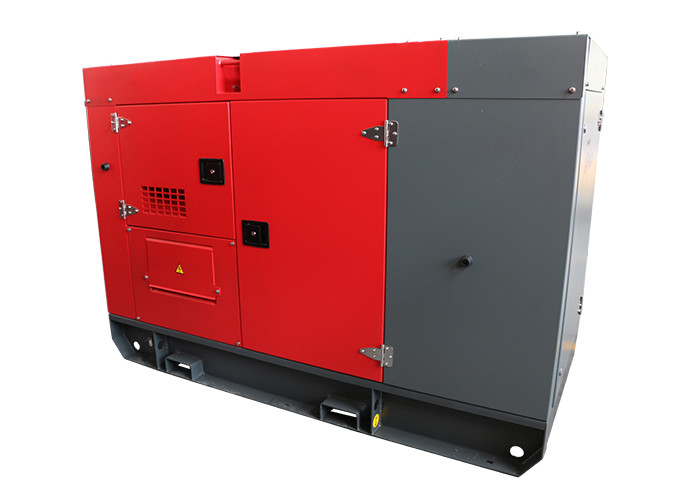

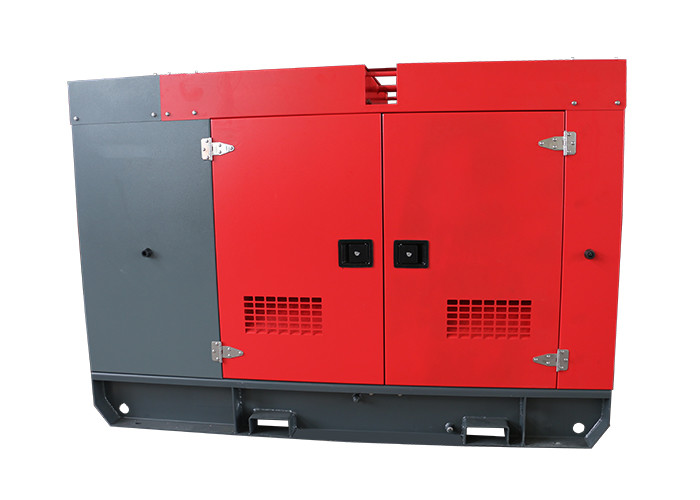

30kva Silent generators photos:





FAWDE 30KVA 24KW Silent Generator Set Electric Start For Boat USE 0
