Soundproof 300kw Cummins Power Generator Electric Generating Set 375kva

Place of Origin Jiangsu of China
Brand Name Power Friend
Certification ISO,CE Certification
Model Number PF-CC375
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Plywood or Plastic packing
Delivery Time 15 - 20 working day
Payment Terms L/C, T/T
Supply Ability 300 Set / Month
Product Details
Output Power 300kw Frequency 50/60HZ
Voltage 220v - 690v Optional Engine Cummins, Perkins, Deutz, Iveco, Chinese Brand For Optional
Alternator Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional Controller Deepsea, Smartgen, Harsen For Optional
MCCB ABB Or Delixi Cooling System Water Cooled
Genset Type Open Type, Silent Type, Container Type, Trailer Type For Optional ATS Optional
High Light

cummins diesel genset

,

emergency diesel generator

Leave a Message
Product Description

Soundproof 300kw Cummins diesel generator electric generating set 375kva



Prime Power

300KW/375KVA

Standby Power

330KW/412KVA

 Freqency

50HZ

Phase number

3

Power factor

0.8 COSØ

Rated Voltage

400/230V

Net Weight

3600KG

Dimention

3500*1400*1900mm (length*width*height)

Engine Mode

NTA855-G7

Engine Speed

1500RPM

Genset Structure

Ultra Silent

Noise Level

68 dB(A)/7m

Cylinders

12-cylinders,  direct injection

Bore/Stroke

135*150mm

Cooling

Water cooled

Compression Ratio

18:1

Cubic Capacity

26.8 L

Fuel tank Capacity

65 L

Fuel Comsuption

≤206g/kwh

Alternator model

Stamford HCI444FS

Starting Mode

 24V Electric Starter

Run Time (50% Load)

10-12 hours

Coupling

SAE Disc-coupling

Phase/Poles

3 Phase 4 pole

Excitation

Brushless,self-excitation(AVR)

Insulation System

Class H

Protection Class

IP23



Cummins / Stamford Genset Features:

1. Engine: Cummins industrial diesel engine

2. Heat Dissipation: Radiator 40°C max, fans are driven by belt, with safe guard

3. Protective Operation: Choice of manual/auto and AMF control panels and protection systems

4. Control Panel: Digital auto-start LED panel

5. Shakeproof: Anti Vibration Suspension Absorber

6. Safe Filter: Dry type air filter, fuel filter, oil filter

7. Breaker: Mould case circuit breaker

8. Power: 24V DC start motor and storage battery

9. Nozzle: Ripple flex exhaust pipe, exhaust siphon, flange, and muffler

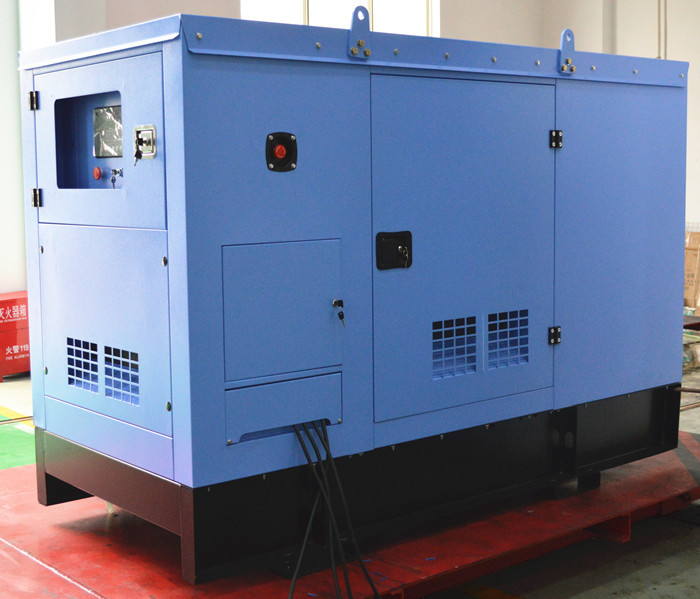

Soundproof 300kw Cummins Power Generator Electric Generating Set 375kva 0

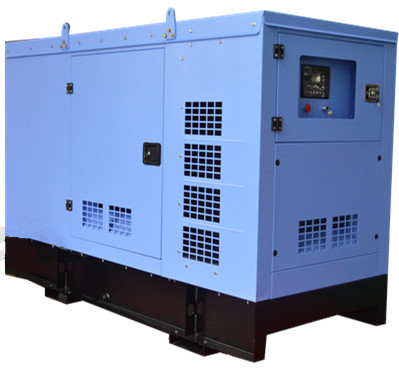

Soundproof 300kw Cummins Power Generator Electric Generating Set 375kva 1

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running

automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional.

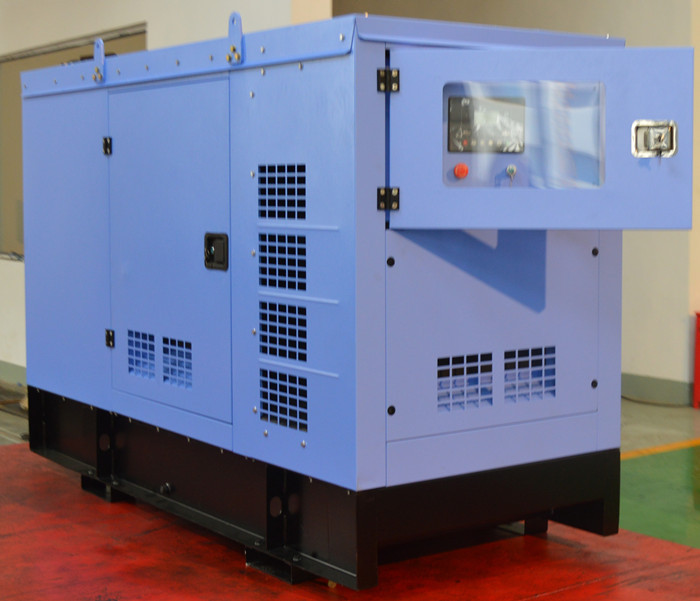

Soundproof 300kw Cummins Power Generator Electric Generating Set 375kva 2





Advantages:

. A strong R&D team with rigorous selection and trainning

. Several years experiences in desinging and manufacturing diesel generator sets.

. Good reputation for reliable quality and reasonable price

. Advanced production line with skilled workers



Sales Promises:

. Our company provides a full line of brand new and high quality products which are strictly tested before shipment

. Quality warranty is according to our standard conditions: One year or 1000 running hours



If have any questions, please contact us. Your inquiry would be appreciated.
