160kw Diesel Generator Set With Italy PFT FPT Engine DeepSea Controller

1 SET
MOQ
negotiation
Price
160kw Diesel Generator Set With Italy PFT FPT Engine DeepSea Controller
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Power: 160KW
Standby Power: 176KW
Engine: Italy Brand FPT C9
Alternator: Stamford / MECC ALTE
Controler Panel: DeepSea / Smartgen
Air Breaker: MCCB DLIXI 3 Pole Or 4 Pole
Warranty: 1 Year Or 1000 Hours
Certificate: ISO/CE/ PVOC
ATS: AISKAI / Socommec
High Light:

emergency diesel generator

,

silent diesel generator set

Basic Infomation
Place of Origin: WUXI city China
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE
Model Number: GP220FPS
Payment & Shipping Terms
Packaging Details: POLY WOODEN CASE
Delivery Time: 25 DAYS
Supply Ability: 500/SETS/ MONTH
Product Description



160kw Diesel Generator Set With Italy PFT FPT Engine DeepSea Controller



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP220FPS
1.2 Prime at 50HZ, 40℃ ambient 160KW / 200KVA
1.3 Standby at 50HZ, 40℃ ambient 176KW / 220KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 2510X960X1600mm
1.7 Weight 1800kg
1.8 Fuel consumption 100% prime load 45L/h
1.9 Total heat radiated to ambient 17KW

1.11 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.12 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Italy PFT FPT
2.2 Engine Model C9
2.3 Governor/Class Electrical
2.4 Cylinder NO. 6
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged
2.9 Cooling mode Radiator cooled (enclose water)
2.10 Bore and stroke 114×135 mm
2.11 Compression ratio 17.3:1
2.12 Displacement 8.3 L
2.13 Engine Prime Power at 1500rpm 183KWm
2.14 Engine Standby Power at 1500rpm 203KWm
2.15 Battery capacity 100A/hr
2.16 Starting/Min temperature 4℃
2.17 Lubrication oil capacity 16L
2.18 Coolant capacity - radiator and engine (40℃) 28L
2.19 Exhaust temp - full load prime 498℃
2.20 Exhaust gas flow - full load prime 1020m 3/h
2.21 Exhaust gas back pressure max 76mmHg
2.22 Air flow - radiator (40℃ ambient) 2.1 m 3/s
2.23 Pusher fan head (duct allowance) 40℃ 10mmH 2O
2.24 Air intake - engine- full load prime 248m 3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type #0 Diesel (Natural temperature)
2.27 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.28 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model Stamford / UCI274H
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 144.3A
3.12 Efficiency 0.903
3.13 Insulation class H
3.14 Protection class IP23



Description:



1. Power Range: 160KW to 176KW

2. Engine: Original Italy brand FPT

3. Alternator: Stamford / Mecc Alte

4. Controller: Deepsea or Smartgen

5. Type: Open type, Soundproof type, weatherproof type, Trailer type, Container type, etc

      7. Color: Can be customized



Applications:



1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,

6. Standby power or main power, indoor or outdoor using.



Competitive Advantage:



1. Engine low fuel consumption.

2. All genuine engines and alternators.

3. The components we use are in high quality.

4. Fast delivery. Big quantity of Engines in stock.

5. The generator set is mounted on a heavy duty fabricated steel skid type base–        frame with anti vibration mounting pads.

6. Use high standard of sponge to make soundproof.

7. The canopy design is user friendly, and easy for maintenance.

8. Pre and after sales service is provided.

9. Fast response for the inquires, service, etc.

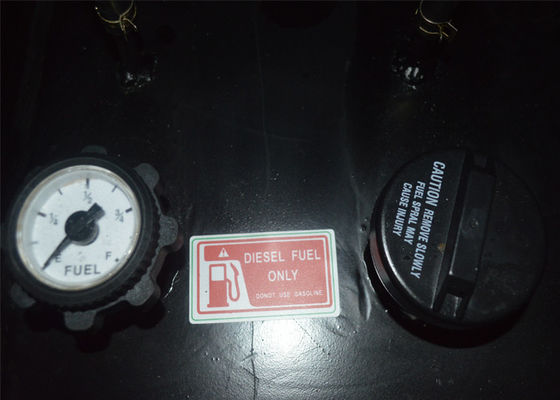

generator photos:

160kw Diesel Generator Set With Italy PFT FPT Engine DeepSea Controller 0



160kw Diesel Generator Set With Italy PFT FPT Engine DeepSea Controller 1
