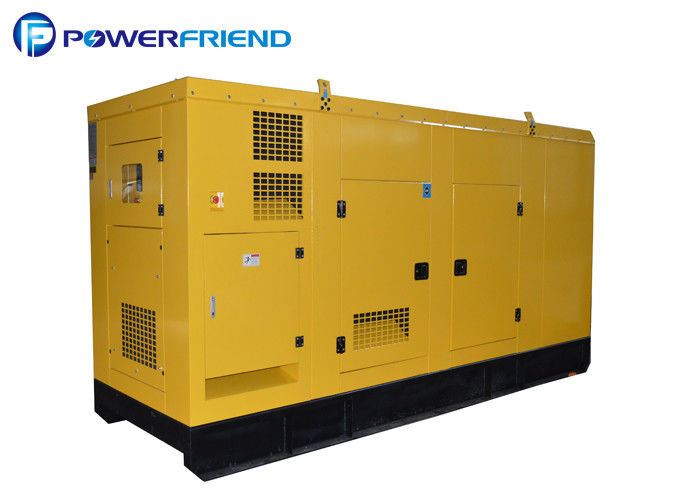

625kva super silent Cummins Diesel Generators 500kw Water cooled

1 SET
MOQ
Negotiation
Price
625kva super silent Cummins Diesel Generators 500kw Water cooled
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Power: 500KW/625KVA
Standby Power: 550KW/ 688kva
Voltage: 220/380v 230/400v 240/415v
Engine: Cummins KTAA19-G6A
Alternator: Original Stamford HCI544FS
Controller: Deepsea 7320
MCCB: Delixi
Cooling System: Water Cooled
Generator Type: Silent Type / Soundroof Type
ATS: AISKAI
Warranty: 1 Year Or 1000 Hours
High Light:

cummins diesel genset

,

emergency diesel generator

Basic Infomation
Place of Origin: WUXI , China
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE
Model Number: GP688CCS
Payment & Shipping Terms
Packaging Details: Poly bag
Delivery Time: 25 working day
Payment Terms: L/C, T/T
Supply Ability: 500 Set / Month
Product Description

625kva super silent Cummins Diesel Generators 500kw Water cooled



Technical specification
Genset Model GP688CCS
Prime Power 500KW/625KVA
Standby Power 550KW/688KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 902A
Genset Structure SILENT
Dimension 5000×1800×2450mm
Net Weight 5500KG
Noise level 83dB at 7 meters
Fuel Tank Capacity 800L
Engine Model KTAA19-G6A
Engine Features 6-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 159mm × 159mm
Displacement 18.9L
MAX Power(kw) 575KW/1500
Fuel Consumption L/H 129.5L/H
Compression Ratio 13:01
Governor type ELECTIC
Alternator Model STAMFORD /HCI544FS
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
Deepsea 7320 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator



625kva super silent Cummins Diesel Generators 500kw Water cooled 0

There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.



ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.

Standard Supply Scope:


Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card



Optional supply scope:


1.ATS

2. SynchronizationSystem

3. External daily fuel tank

4. Silent Canopy

5. Trailer

6. Auto Fuel Pump

7. Fuel and Water Separator

8. Lub Oil Heater

9. Coolant Heater

10. Fuel Drain Pump



Advantages:



. We are a powerful and unity sales team:

. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

90% of our sales team members are with more than 5 years of experience in the generator field.

. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.

. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.

. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.



If have any questions, please contact us. Your inquiry would be appreciated.

625kva super silent Cummins Diesel Generators 500kw Water cooled 1

625kva super silent Cummins Diesel Generators 500kw Water cooled 2
