12KW 15KVA Three Phase FAWDE Diesel Generator Set Super Silent

1 set
MOQ
Negotiation
Price
12KW 15KVA Three Phase FAWDE Diesel Generator Set Super Silent
Features Gallery Product Description Request A Quote
Features
Specifications
Power(Prime/Standby): 15kva
Current: 21.6A
Voltage: 220/380V
Engine: Chinese Engine FAWDE
Alternator: Original Stamford / Mecc Alte
Controller: Smartgen / DeepSea /ComAp
MCCB: Delixi / ABB 3 Pole Or 4 Pole
Warranty: 1 Year Or 1000 Hours
ATS: Option
Battery: 60A Battery
Heater: Fuel Heater , Water Heater Option
High Light:

emergency diesel generator

,

silent diesel generator set

Basic Infomation
Place of Origin: WUXI city ,China
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: PF-FW17S
Payment & Shipping Terms
Packaging Details: poly wooden case
Delivery Time: 20 days
Supply Ability: 500 sets / Month
Product Description


Diesel power generator with Chinese FAW engine selection:



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP17FWS
1.2 Prime at 50HZ, 40℃ ambient 12KW 15KVA
1.3 Standby at 50HZ, 40℃ ambient 13.2KW 16.5KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) Open: 1500*700*1050,
Silent: 2000*940*1200
1.7 Weight Open: 700kg, Silent: 1100kg
1.8 Fuel consumption 100% prime load 4
1.9 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
2 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand FAWDE
2.2 Engine Model 4DW81-23D
2.3 Governor/Class Machanical or Electronic
2.4 Cylinder NO. 4
2.5 Engine build Line
2.6 Emission compliant Stage II
2.7 start-up method 12V, electric
2.8 Air intake type Natural
2.9 Cooling mode Water Cooling
2.10 Bore and stroke 85×100 mm
2.11 Compression ratio 17:01
2.12 Displacement 2.27
2.13 Engine Prime Power at 1500rpm 17KWm
2.14 Engine Standby Power at 1500rpm 19KWm
2.15 Lubrication oil capacity 7.8L
2.16 Oil consumption 0.05
2.17 Dry weight of base 220Kg
2.18 Dry weight of Gen Pac 240Kg
2.19 Overall dimension(G.P) 920×610×760(mm)
2.2 Overall dimension(base) 750×555×680(mm)
2.21 27℃ air consumption ( m³/ min) 1.4
2.22 Fuel type #0 Diesel (Natural temperature)
2.23 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.24 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model Stamford/PI 044G
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 23A
3.12 Efficiency 81.70%
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1,NEMA1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 99kg



Description:



1. Chinese brand-  FAWDE engine

2. Alternator: Copy Stamford

3. Controller: Smartgen / DeepSea

5. ATS is optional

6. Type: Soundproof type, weather proof, Trailer type

      7.  Battery: maintenance-free battery

      8.  With battery charger

      9.   Radiator with Antifreezing







Applications:



1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow





Competitive Advantage:



1. Low fuel consumption

2. Good quality engine and alternator

3. Fast delivery. Big quantity of Engines in stock.

4. The generator set is mounted on a heavy duty fabricated steel skid type base–              frame with anti vibration mounting pads.

5. Use high standard of sponge to make soundproof.

6. The canopy design is user friendly, and easy for maintenance.

7. Pre and after sales service is provided.

8. 365 days, 24 hours after sale service

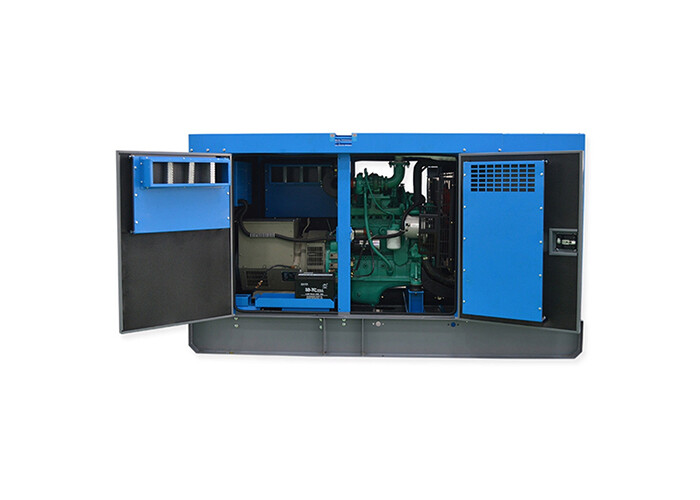

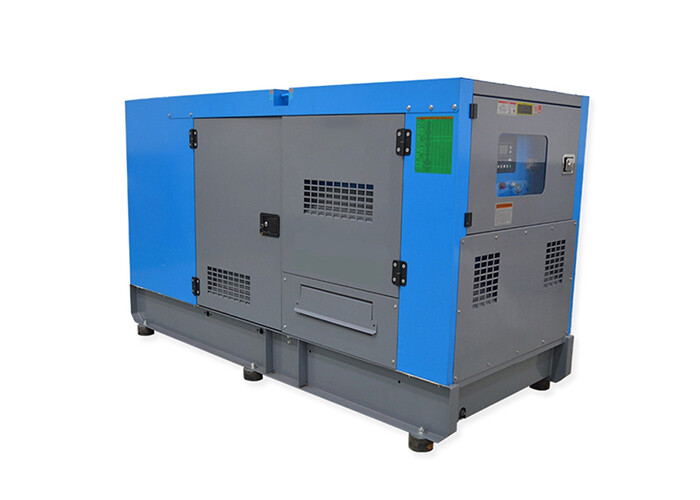

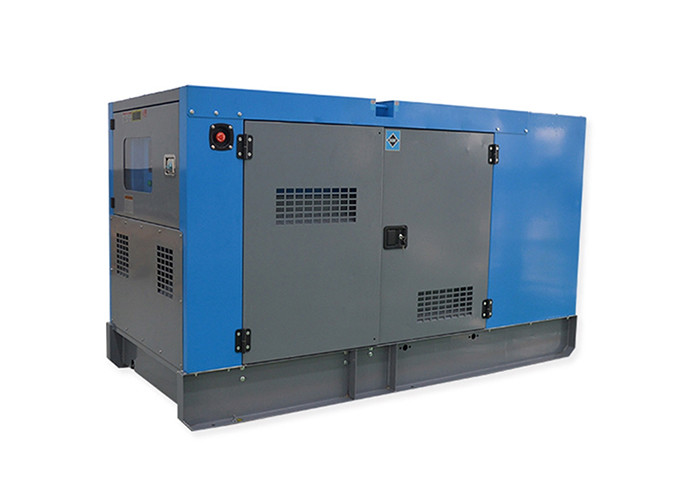

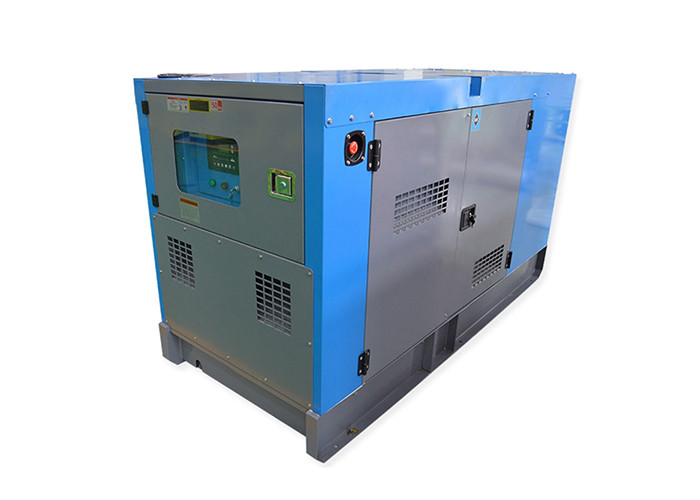

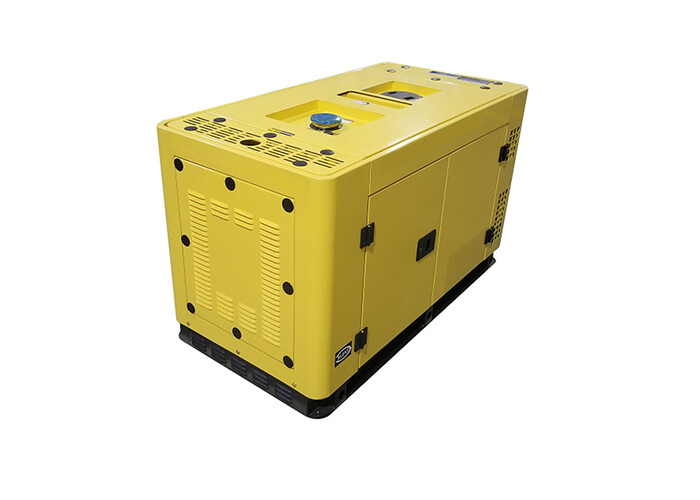

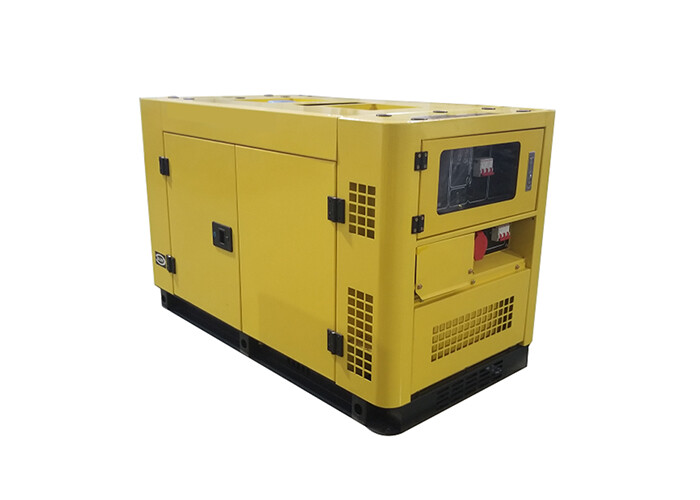

Mass generators photos:



12KW 15KVA Three Phase FAWDE Diesel Generator Set Super Silent 0



12KW 15KVA Three Phase FAWDE Diesel Generator Set Super Silent 1
