7kw Electric Start Small Portable Generators Ultra Silent Type With 192F Engine

China 7kw Electric Start Small Portable Generators Ultra Silent Type With 192F Engine supplier
7kw Electric Start Small Portable Generators Ultra Silent Type With 192F Engine supplier 7kw Electric Start Small Portable Generators Ultra Silent Type With 192F Engine supplier 7kw Electric Start Small Portable Generators Ultra Silent Type With 192F Engine supplier

Large Image :  7kw Electric Start Small Portable Generators Ultra Silent Type With 192F Engine

Product Details:

Place of Origin: WUXI CITY CHINA
Brand Name: POWER FRIEND
Certification: ISO9001 / ISO14001 / CE
Model Number: PD8500T

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Carton box
Delivery Time: 14 days
Supply Ability: 1000 sets / Month
Contact Now
Detailed Product Description
Power(Prime/Standby): 7KVA / 7.7KVA Frequency: 50/60HZ
Current: 20A Voltage: 220/230/240v
Engine: 192FAE Diesel Fuel Alternator: 100% Copper
Controller: Electric Start Sound Level/db: 68dB At 7 Meters
Warranty: 1 Year Or 1000 Hours Speed: 3000rpm / 3600rpm



7kw portable generator diesel ultra silent type with 192F engine electric start



SUPER SILENT 7KW GENERATOR SET SPECIFICATION:



  Model NO. 8500E(Open type) 8500T (Silent type)
Generator
set
Rated frequency(Hz) 50/60 50/60
Rated voltage(V) 220V 220V
Rated current(A) 19.6 41.7/20.8 19.6 41.7/20.8
Rated output power(kW) 7KVA/7.7KVA 7KVA/7.7KVA
Rated rotation speed(rpm) 3000/3600 3000/3600
DC output 12V 32A 12V 32A
Power factor(cosφ) 1 1
Phase number Single phase Single phase
Noise level[dB(A)@7m] 75-77 75-77
Overall dimension(L*W*H)[mm] 780x500x650mm 950x560x750mm
Net weight(kg) 110 170
Engine Engine type 192F 192F
Structure type Single cylinder, in-lined,4-stroke,
air cooled, direct injection
Single cylinder, in-lined,4-stroke,
air cooled, direct injection
Bore*stroke[mm(in)] 92x75 92x75
Displacement[ml(cu. in)] 499 499
Engine speed(rpm) 3000/3600 3000/3600
Compression ratio 19:1 19:1
Rated output power[kW/rpm] 7.7/3000 , 8.5/3600 7.7/3000 , 8.5/3600
Lubrication system Pressure splashed Pressure splashed
Lube oil brand

Above CD SAE

10W-30,15W-40

Above CD SAE

10W-30,15W-40

Starting system 12 V Electric starter 12 V Electric starter
Starting motor capacity 12V 0.8KW 12V 0.8KW
Charging generator capacity 12V 3A 12V 3A
Battery capacity 12V 36AH 12V 36AH
Fuel consumption rate[g/kW.h] 3000rpm:315 , 3600rpm: 320 3000rpm: 315 , 3600rpm: 320
Fuel type

Diesel 0#(summer)

or-10#(winter),-35#(cold)

Diesel 0#(summer)

or-10#(winter),-35#(cold)

Fuel tank capacity(L) 15 15
Continuous running time(H) 8 8





1. Air cooled 192FA diesel engine

2. Generator power rated power 7kw, Max power 7.7kw

3. Electric start

4. 100% copper

5. Super silent , noise 68dB at 7 meters





Applications:



1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway

2. Home use: personal use for home, camping, party, etc

3. Island, Desert or any place without electricity

4. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow







Competitive Advantage:



1. Use 100% copper alternator

2. 24 hours/7 days after sale service

3. 14 days delivery time

4. Produce engines / canopy and assemble by ourselves.

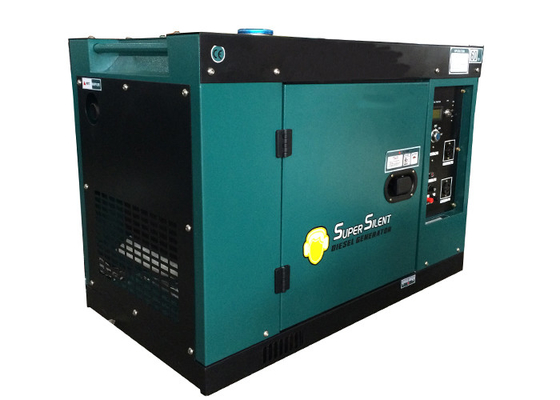

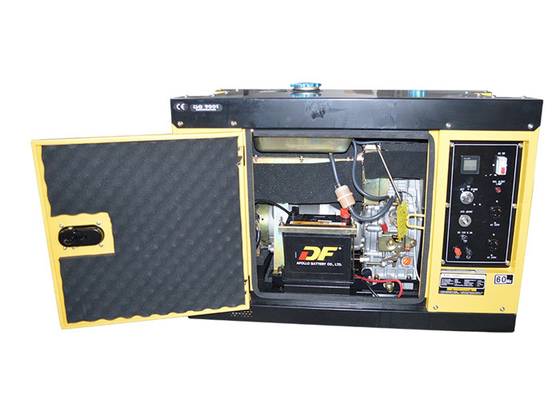

Workshop super silent 7kw diesel portable generators photos:



7kw Electric Start Small Portable Generators Ultra Silent Type With 192F Engine



7kw Electric Start Small Portable Generators Ultra Silent Type With 192F Engine
