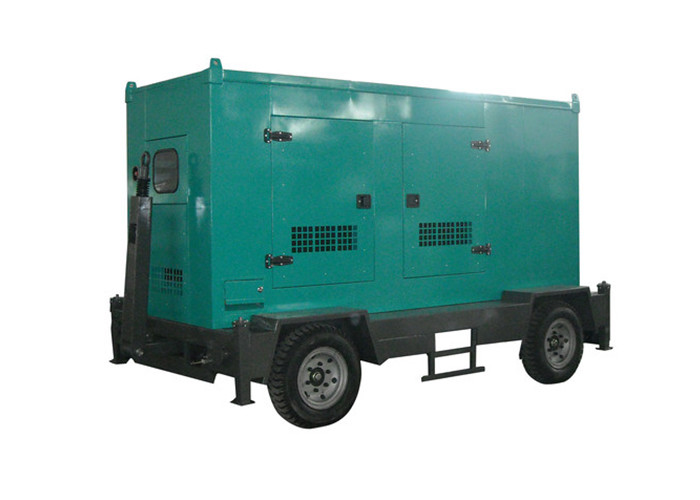

Continuous Movable Cummins Backup Generator With Trailer , Out Door Used

1 set
MOQ
Negotiation
Price
Continuous Movable Cummins Backup Generator With Trailer , Out Door Used
Features Gallery Product Description Request A Quote
Features
Specifications
Power(Prime/Standby): 300KW/375KVA
Frequency: 50HZ / 60HZ
Current: 540A
Voltage: 220/380V
Engine: Cummins / NTA855-G7
Controller: Smartgen / DeepSea
MCCB: Delixi /ABB
Sound Level/db: 72dB 7 Meter
Warranty: 1 Year Or 1000 Hours
Alternator: Original Stamford
High Light:

cummins power generator

,

emergency diesel generator

Basic Infomation
Place of Origin: Wuxi, China
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: GP413CCT
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: 25-30 days
Supply Ability: 500 sets / Month
Product Description

Continuous Movable Cummins Backup Generator With Trailer , Out Door Used



Technical specification
Genset Model GP413CCT
Prime Power 300KW/375KVA
Standby Power 330KW/413KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 541A
Genset Structure SILENT
Dimension 4300×1600×2000mm
Net Weight 4000KG
Noise level 82dB at 7 meters
Fuel Tank Capacity 620L
Engine Model NTA855-G7
Engine Features 6-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 140mm × 152mm
Displacement 14L
12-hour Power(kw) 460KW/1500
Fuel Consumption L/H 78L/H
Compression Ratio 14:01
Governor type ELECTIC
Alternator Model STAMFORD /HCI444FS
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
Smartgen 6110 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator



Continuous Movable Cummins Backup Generator With Trailer , Out Door Used 0

Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!
