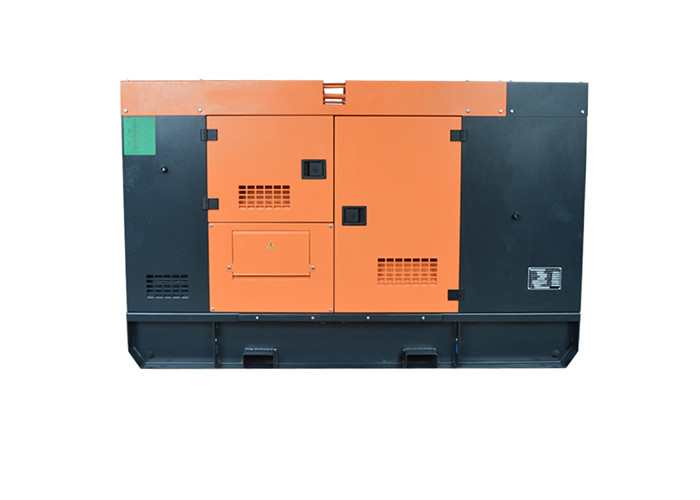

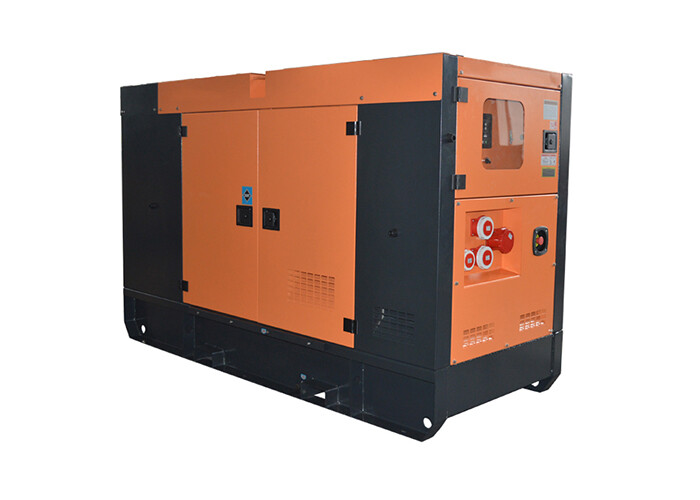

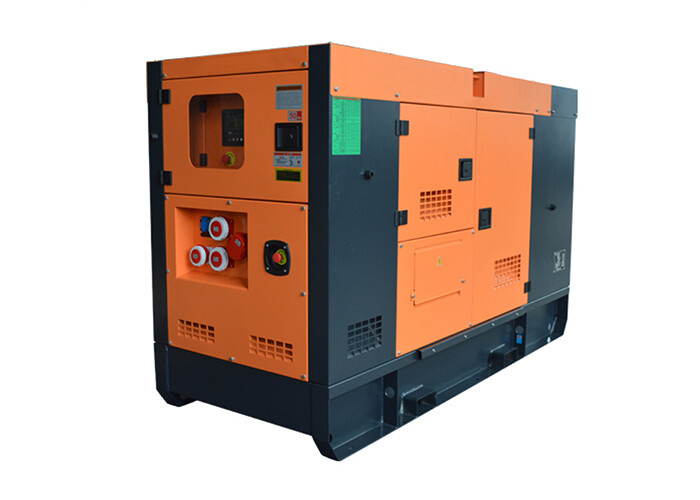

AC Three Phase Diesel Generator Set

Place of Origin China
Brand Name POWERFRIEND
Certification CE/SONCAP/SASO
Model Number PF
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plywood case
Delivery Time 30 days
Payment Terms L/C, T/T
Supply Ability 300 sets per month
Product Details
Engine FAWDE Alternator China Stamford
Controller Smartgen 6110 Phase 3 Phase
Warranty 12 Months/ 1 Year Cooling System Water-cooled System
Options ATS Type Silent Type
Colour Customized
High Light

emergency diesel generator

,

silent diesel generator set

Leave a Message
Product Description

GENERATOR SET SPECIFICATION:



1. SPECIFICATIONS OF FAWDE 50KVA GENERATOR
Set Model PF-FW55S
Prime at 50HZ, 40℃ ambient 40KW 50KVA generator
Standby at 50HZ, 40℃ ambient 44KW 55KVA generator
Rated Gen-set output 230/400V 50Hz
Rated Relative humidity ≤ 60 %
Dimension (L×W×H) Silent: 2320*1100*1200MM
Weight Silent: 1200kg
2. SPECIFICATIONS OF FAW ENGINE
Engine Brand FAWDE
Engine Model 4DX21-45D
Governor/Class Electronic
Cylinder NO. 4
Engine build Line
Emission compliant Stage II
start-up method 24V, electric
Air intake type NATURAL
Cooling mode Water Cooling
Bore and stroke 102×118 mm
Compression ratio 17:01
Displacement 3.86
Engine Prime Power at 1500rpm 39KWm
Engine Standby Power at 1500rpm 43KWm
Lubrication oil capacity 13L
Oil consumption 0.06
Dry weight of base 380Kg
Dry weight of Gen Pac 405Kg
Overall dimension(G.P) 1155×680×835(mm)
Overall dimension(base) 810×680×800(mm)
27℃ air consumption ( m³/ min) 3.2
Fuel type #0 Diesel (Natural temperature)
Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTERNATOR
Alternator Model UP224D
Alternator Type A.C. Synchronous
Rated Voltage 230/400V
Rated Frequency 50HZ
Rated speed 1500 RPM
Voltage regulation mode Auto
Alternator voltage regulation ±0.5%
Exciting mode Brushless self exciting
Power factor 0.8 (lagging)
Phase & wires 3 phase 12 wires
Rated currency 54.1A
Efficiency 86.60%
Insulation class H
Protection class IP23
Single load step to NFPA110 100%
Standards IEC34-1,NEMA1
Max. Ambient Temperature 40℃
Min. Ambient Temperature - 20℃
Max. altitude 1000m
Weight 216kg



AC Three Phase Diesel Generator Set 0

AC Three Phase Diesel Generator Set 1

AC Three Phase Diesel Generator Set 2



AC Three Phase Diesel Generator Set 3





AC Three Phase Diesel Generator Set 4



Company Information



JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.



Being in  the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients. We supply Generator Sets from 2kva to 3000kva.



AC Three Phase Diesel Generator Set 5



power friend projects



AC Three Phase Diesel Generator Set 7

AC Three Phase Diesel Generator Set 8



AC Three Phase Diesel Generator Set 9

FAQ

Q1: What is your warranty period?

A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).



Q2: Does your generator have global warranty?

A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.



Q3: What is your payment terms?

A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.

L/C Irrevocable L/C at sight.



Q4: What is your delivery time?

A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.



Q5: Can the generators be customized?

A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.



Q6: Can you use our logo?

A6: Yes. For mass orders, we can use customer's logo instead of ours.
