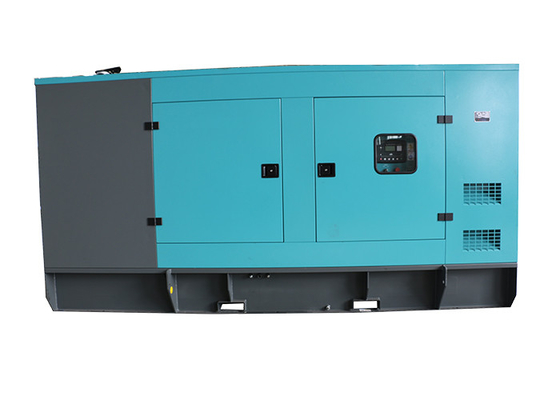

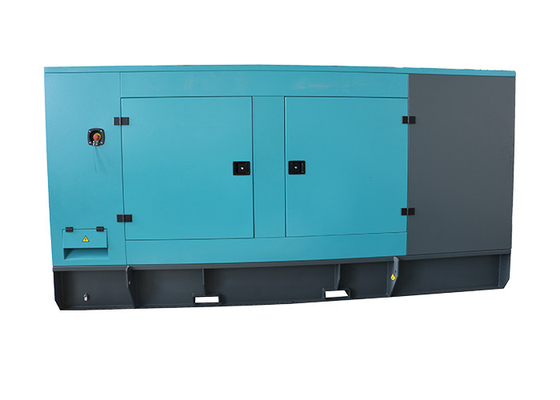

Lovol Engine Sound Proof Silent Diesel Generator Set 120kw 150kva AC 3 Phase

1 set
MOQ
Negotiation
Price
Lovol Engine Sound Proof Silent Diesel Generator Set 120kw 150kva AC 3 Phase
Features Gallery Product Description Request A Quote
Features
Specifications
Engine: CUMMINS / FPT / PERKINS
Alternator: Copy Stamford
Controller: Smartgen 6110
Phase: 3 Phase
Warranty: 12 Months/ 1 Year
Cooling System: Water-cooled System
Options: ATS
Type: Silent Type
Colour: Customized
High Light:

emergency diesel generator

,

silent diesel generator set

Basic Infomation
Place of Origin: China
Brand Name: GPRO
Certification: CE/SONCAP/SASO
Model Number: GP165LVS
Payment & Shipping Terms
Packaging Details: Plywood case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 300 sets per month
Product Description



Lovol Engine Sound Proof Silent Diesel Generator Set 120kw 150kva AC 3 Phase



1. SPECIFICATIONS OF UNITED POWER GENERATOR
Set Model GP165LVS
Prime at 50HZ, 40℃ ambient 120KW 150KVA
Standby at 50HZ, 40℃ ambient 132KW 165KVA
Rated Gen-set output 230/400V 50Hz
Rated Relative humidity ≤ 60 %
Dimension (L×W×H) 3300X1140X1490mm
Weight 1850kg
Fuel consumption 100% prime load 10L/H
Structure of Gen-set

The Gen-set adopt integrative structure, engine is

fix on high strength steel basic frame, anti

vibration instrument between the engine

and basic frame, cooling fan have protecting cap,

control cabinet and circuit breaker installed on Gen-set

Control system (Optional)

Basic control panel or Advanced control

panel with automatically start-up

function and other function

2. SPECIFICATIONS OF ENGINE
Engine Brand Lovol
Engine Model 1006C-P6TAG2
Governor/Class Electronical
Cylinder NO. 6 IN LINE
Engine build Vertical
Fuel spray pattern PB direct injection
Aspiration Turbocharged
Cooling mode Radiator cooled (enclose water)
Bore and stroke 100×127 mm
Compression ratio 17.5:1
Displacement 5.98L
Engine Prime Power at 1500rpm 130KWm
Engine Standby Power at 1500rpm 143KWm
start-up method 12V, electric
Battery capacity 120A/hr
Starting/Min temperature -15℃
Lubircating oil consumption 0.0795L/h
Lubrication oil capacity 8.5L
Coolant capacity – radiator and engine (40℃) 22.2L
Exhaust temp - full load prime 561℃
Exhaust gas flow – full load prime 786m3/h
Exhaust gas back pressure max 76mm/Hg
Air flow - radiator (40℃ ambient) 1.4m3/s
Pusher fan head ( duct allowance ) 40 ℃ 13mmH2O
Air intake – engine - full load prime 271.2m3/h
Standard Air intake temp 25℃
Fuel type #0 Diesel (Natural temperature)
Filter system

Adopt whole changeable lubricating

oil,fuel filter and air filter

Exhaust system

Adopt industrial high efficiency

silencer and flexible bellows

Engine derating - altitude

Above the sea-level 1525m high,

a fall of 4% from a rise of 300m.

Engine derating- temperature

Above the ambient temperature 40℃ high,

a fall of 2% from a rise of 11%.

3. SPECIFICATIONS OF ALTENATOR
Alternator Model united power generator /GP274F
Alternator Type A.C. Synchronous
Rated Voltage 230/400V
Rated Frequency 50HZ
Rated speed 1500 RPM
Voltage regulation mode Auto
Alternator voltage regulation ±0.5%
Exciting mode Brushless self exciting
Power factor 0.8 (lagging)
Phase & wires 3 phase 12 wires
Rated currency 104.7A
Efficiency 89.90%
Insulation class H
Protection class IP23
Single load step to NFPA110 100%
Standards IEC34-1,NEMA1
Max. Ambient Temperature 40℃
Min. Ambient Temperature - 15℃
Max. altitude 1000m
Weight 310kg

Lovol Engine Sound Proof Silent Diesel Generator Set 120kw 150kva AC 3 Phase 0



Lovol Engine Sound Proof Silent Diesel Generator Set 120kw 150kva AC 3 Phase 1









Company Information



Wuxi Gpro Power Solution Co., Ltd is focus on power generator products and service in China.



Being in  the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients. We supply Generator Sets from 2kva to 3000kva.





FAQ

Q1: What is your warranty period?

A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).



Q2: Does your generator have global warranty?

A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.



Q3: What is your payment terms?

A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.

L/C Irrevocable L/C at sight.



Q4: What is your delivery time?

A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.



Q5: Can the generators be customized?

A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.



Q6: Can you use our logo?

A6: Yes. For mass orders, we can use customer's logo instead of ours.
