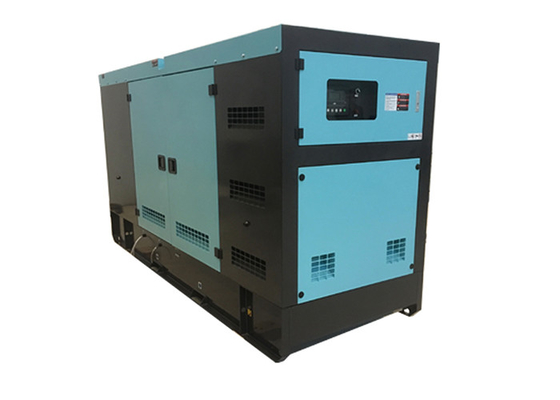

120KW / 150KVA American Cummins Diesel Generators With Good Silent Shell

1 SET
MOQ
Negotiation
Price
120KW / 150KVA American Cummins Diesel Generators With Good Silent Shell
Features Gallery Product Description Request A Quote
Features
Specifications
Output Power: 120KW 150KVA
Frequency: 50/60HZ
Voltage: 220v - 690v Optional
Engine: Cummins/6CTAA8.3-G2
Alternator: Stamford
Controller: Deepsea, Smartgen, Harsen For Optional
MCCB: ABB Or Delixi
Cooling System: Water Cooling
Genset Type: Silent Type
Color: Optional
High Light:

cummins power generator

,

emergency diesel generator

Basic Infomation
Place of Origin: Jiangsu of China
Brand Name: GPRO
Certification: ISO,CE Certification
Model Number: GP165DCS
Payment & Shipping Terms
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
Product Description

120KW / 150KVA American Cummins Diesel Generators With Good Silent Shell



Technical specification
Genset Model GP165DCS
Prime Power 120KW/150KVA
Standby Power 132KW/165KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 216.5A
Genset Structure SILENT
Dimension 3400×1280×1785mm
Net Weight 2350KG
Noise level 75dB at 7 meters
Fuel Tank Capacity 240L
Engine Model 6CTA8.3-G2
Engine Features 6-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 114mm × 135mm
Displacement 8.3L
12-hour Power(kw) 163KW/1500
Fuel Consumption L/H 31.8L/H
Compression Ratio 17.3:1
Governor type ELECTIC
Alternator Model STAMFORD /UCI274F
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
Smartgen 6110 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator



120KW / 150KVA American Cummins Diesel Generators With Good Silent Shell 0

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional



Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!

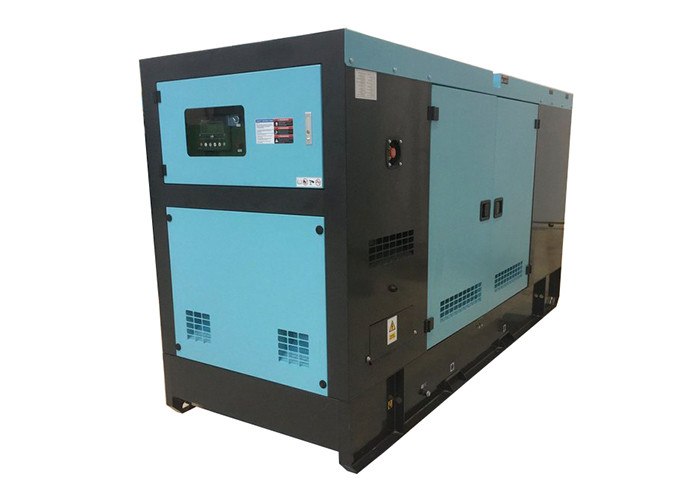

120KW / 150KVA American Cummins Diesel Generators With Good Silent Shell 1

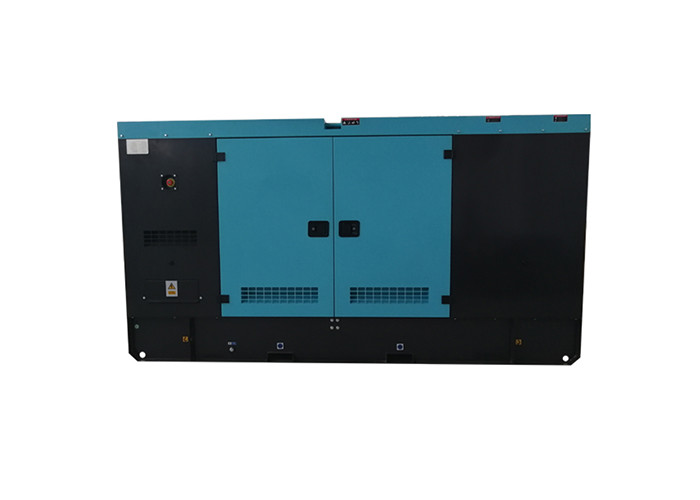

120KW / 150KVA American Cummins Diesel Generators With Good Silent Shell 2
