Super Silent 4 Cylinder Diesel Generator 24kw Powered By FAWED Engine

1
MOQ
3830-4184
Price
Super Silent 4 Cylinder Diesel Generator 24kw Powered By FAWED Engine
Features Gallery Product Description Request A Quote
Features
Specifications
Generator Type: Silent Type
Engine Model: 4DW92-39D
Structure Type: Four Cylinder,in-lined,4-stroke,water Cooled
Noise Level DB@7m: 65 DB(A)
Alternator: Stamford Type, Brushless, 100% Copper
Protection Class: IP23
Controller: Deepsea/comp/Smartgen
Base Fuel Tank: At Least For 8-hour Contunuous Running
Warranty: 12 Months/1000 Hours
High Light:

power generating set

,

silent diesel generators

Basic Infomation
Place of Origin: China
Brand Name: GPRO
Certification: ISO9001/ ISO14001/ CE
Model Number: GP33FWS
Payment & Shipping Terms
Packaging Details: Ply wooden case or Nude packing
Delivery Time: one month
Product Description

Super Silent 4 Cylinder Diesel Generator 24kw Powered By FAWED Engine



SPECIFICATIONS



1.1 Set Model GP33FWS
1.2 Prime at 50HZ, 40℃ ambient 24KW 30KVA
1.3 Standby at 50HZ, 40℃ ambient 26KW 33KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) Open: 1750*800*1100,
Silent: 2300*1120*1200
1.7 Weight Open: 800kg, Silent: 1200kg
1.8 Fuel consumption 100% prime load 7
1.9 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
2 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand FAWDE
2.2 Engine Model 4DW92-39D
2.3 Governor/Class Mechanical or Electronic
2.4 Cylinder NO. 4
2.5 Engine build Line
2.6 Emission compliant Stage II
2.7 start-up method 24V, electric
2.8 Air intake type Natural
2.9 Cooling mode Water Cooling
2.10 Bore and stroke 102×118 mm
2.11 Compression ratio 17:01
2.12 Displacement 3.86
2.13 Engine Prime Power at 1500rpm 33KWm
2.14 Engine Standby Power at 1500rpm 36KWm
2.15 Lubrication oil capacity 12.5L
2.16 Oil consumption 0.06
2.17 Dry weight of base 350Kg
2.18 Dry weight of Gen Pac 375Kg
2.19 Overall dimension(G.P) 1155×680×835(mm)
2.2 Overall dimension(base) 810×680×800(mm)
2.21 27℃ air consumption ( m³/ min) 2.6
2.22 Fuel type #0 Diesel (Natural temperature)
2.23 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.24 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTERNATOR
3.1 Alternator Model G184G
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 45.1A
3.12 Efficiency 0.862
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1,NEMA1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 156㎏

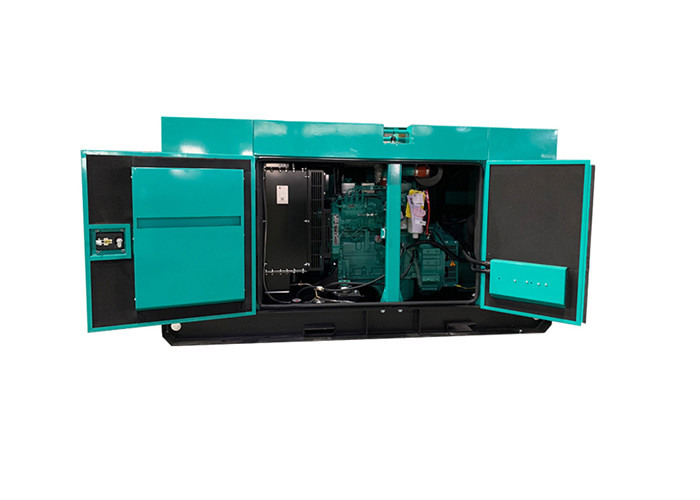

Super Silent 4 Cylinder Diesel Generator 24kw Powered By FAWED Engine 0

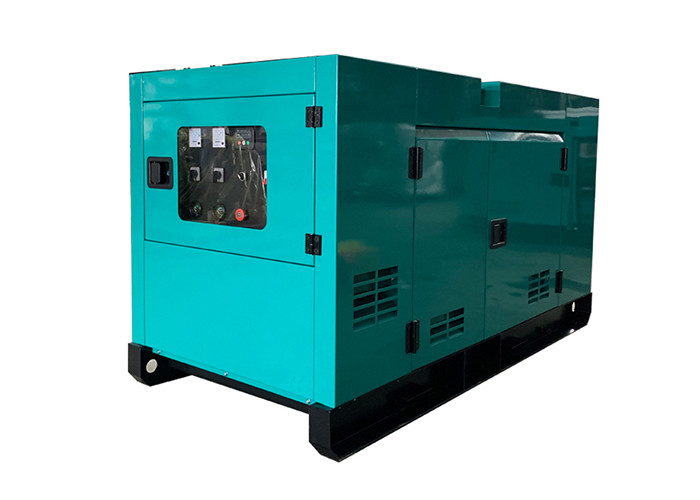

Super Silent 4 Cylinder Diesel Generator 24kw Powered By FAWED Engine 1

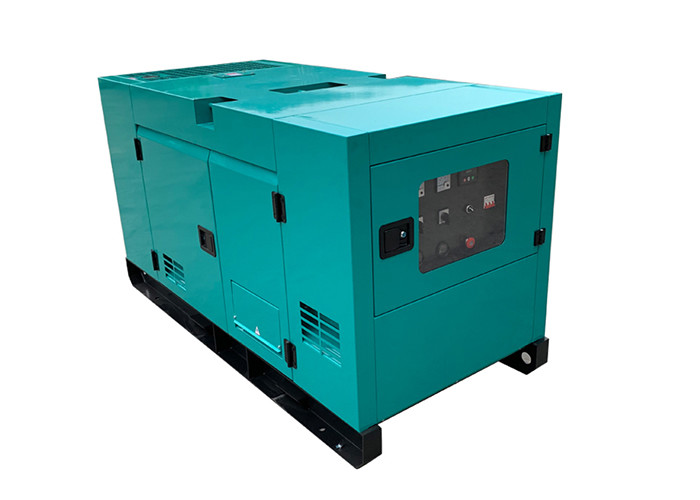

Super Silent 4 Cylinder Diesel Generator 24kw Powered By FAWED Engine 2



There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.



ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.



Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card



Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump

Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers

Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours



If have any questions, please contact us. Your inquiry would be appreciated.
