400 Kw 500kva Cummins Diesel Generator Set , Water Cooled Soundproof Diesel Generator

1
MOQ
negotiable
Price
400 Kw 500kva Cummins Diesel Generator Set , Water Cooled Soundproof Diesel Generator
Features Gallery Product Description Request A Quote
Features
Specifications
Power Power: 500KVA 400KW
Frenquency: 50/60HZ
Voltage: 220v-690v For You Choose
Engine: USA Cummins
Alternator: Marathon
Controller: Deepsea/Smartgen
MCCB: ABB/Delixi
Warranty: 1 Year Or 1000hrs
Cooling: Water Cooled
Typo: Soundproof
High Light:

emergency diesel generator

,

silent diesel generator set

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: GPRO
Certification: ISO, CE
Model Number: GP550CCS
Payment & Shipping Terms
Packaging Details: Plywooden box or plastic poly
Delivery Time: 25 days after deposit
Payment Terms: T/T or L/C
Supply Ability: 500pcs/ Month
Product Description

400 Kw 500kva Cummins Diesel Generator Set , Water Cooled Soundproof Diesel Generator



Specification of 550KVA Cummins diesel generator



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP550CCS
1.2 Prime at 50HZ, 40℃ ambient 400KW 500KVA
1.3 Standby at 50HZ, 40℃ ambient 440KW 550KVA
1.4 Rated Gen-set output 230/400V  50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 4900×1650×2550mm
1.7 Weight 5357kg
1.8 Fuel consumption 100% prime load 107L/h
1.9 Total heat radiated to ambient 88KW
1.10  Noise Level at 7m (Normal/Super) 78/70dB
1.11 Structure of Gen-set

The Gen-set adopt integrative structure,

 engine is fix on high strength

steel basic frame, anti vibration

instrument between the engine

 and basic frame, cooling fan

 have protecting cap,

control cabinet and circuit

breaker installed on Gen-set.

1.12 Control system (Optional)

Basic control panel or

 Advanced control panel

 with automatically  start-up

 function and other function.

2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Cummins
2.2 Engine Model KTA19-G4
2.3 Governor/Class Electrical
2.4 Cylinder NO. 6
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged/Aftercooled
2.9 Cooling mode

Radiator cooled

 (enclose water)

2.10  Bore and stroke 159×159mm
2.11 Compression ratio 14.5:1
2.12 Displacement 19L
2.13 Engine Prime Power at 1500rpm 448KWm
2.14 Engine Standby Power at 1500rpm 504KWm
2.15 Battery capacity 190A/hr
2.16 Starting/Min temperature 0℃
2.17 Lubrication oil capacity 50L
2.18 Coolant  capacity  -  radiator  and engine (40℃) 91L
2.19 Exhaust temp - full load prime 538℃
2.20  Exhaust gas flow - full load prime 5162m3/h
2.21 Exhaust gas back pressure max 76mmHg
2.22 Air flow - radiator (40℃  ambient) 13.7 m  3/s
2.23 Pusher fan head (duct allowance) 40℃ 13mmH 2O
2.24 Air   intake   -   engine-   full   load prime 1912m3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type #0 Diesel (Natural temperature)
2.27 Filter system

Adopt  whole  changeable

  lubricating  oil, fuel

    filter and air filter

2.28 Exhaust system

Adopt  industrial  high

efficiency  muffler and ripple pipe

3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model Marathon
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10  Phase & wires 3 phase 12 wires
3.11 Rated currency 721.7A
3.12 Efficiency 0.938
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20  Weight 1250kg

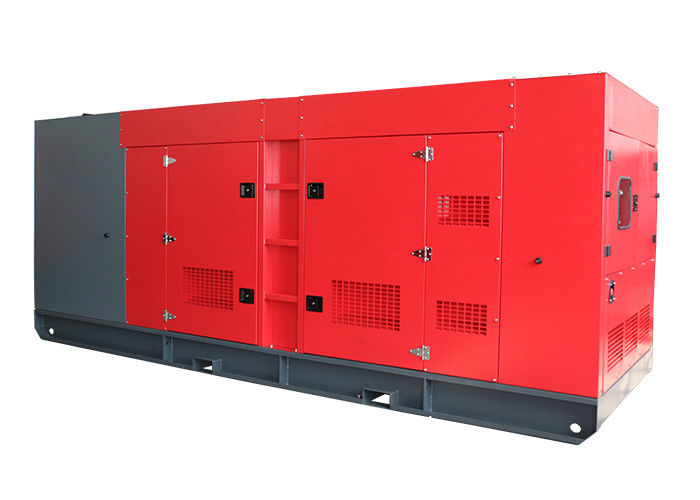

The photo of 500kva Cummins Generator :

400 Kw 500kva Cummins Diesel Generator Set , Water Cooled Soundproof Diesel Generator 0

400 Kw 500kva Cummins Diesel Generator Set , Water Cooled Soundproof Diesel Generator 1



Description:



1.    Power Range: 20-2500kw

2.    Engine: DCEC Cummins, CCEC Cummins, USA Cummins

3.    Alternator: Genuine Stamford, Marathon, Meccalte, etc

4.    Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.

5.    ATS is optional

6.    Type: Open type, Soundproof type, Trailer type, Container type, etc

7.    Color: Can be customized



Applications:

1.    Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc

2.    Home use: personal use for house, camping, party, etc

3.    Telecom, Mobile tower, etc

4.    Island, Desert or any place without electricity

5.    As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,

6.    Standby power or main power, indoor or outdoor using.

7.    Rental field.



Competitive Advantage:

1.    Full power range.

2.    All genuine engines and alternators.

3.    The components we use are in high quality.

4.    Fast delivery. Big quantity of Engines in stock.

5.    The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.

6.    Use high standard of sponge to make soundproof.

7.    The canopy design is user friendly, and easy for maintenance.

8.    Pre and after sales service is provided.

9.    Fast response for the inquires, service, etc.
