60HZ 500KVA Power Cummins Diesel Generators Super Silent KTA19- G4 Engine

1 set
MOQ
60HZ 500KVA Power Cummins Diesel Generators Super Silent KTA19- G4 Engine
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Power: 500kva / 400kw
Standby Power: 550kva / 440kw
Engine: Cummins Diesel Engine KTA19-G4
Alternator: Stamford
Controller: DeepSea 7320
Certificate: ISO9001/ISO14001/CE
Fuel Tank: Keep Running 8 Hours At 100% Loading
High Light:

cummins power generator

,

emergency diesel generator

Basic Infomation
Place of Origin: WUXI City , China
Brand Name: GPRO
Certification: ISO/CE
Model Number: GP550CCS
Payment & Shipping Terms
Packaging Details: poly wooden box
Delivery Time: 25-30 days
Supply Ability: 500 sets
Product Description

60HZ 500KVA Power Cummins Diesel Generators Super Silent KTA19- G4 Engine



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP550CCS
1.2 Prime at 50HZ, 40℃ ambient 400KW 500KVA
1.3 Standby at 50HZ, 40℃ ambient 440KW 550KVA
1.4 Rated Gen-set output 220V 60Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 4900×1650×2550mm
1.7 Weight 5357kg
1.8 Fuel consumption 100% prime load 107L/h
1.9 Total heat radiated to ambient 88KW
1.10 Noise Level at 7m (Normal/Super) 78/70dB
1.11 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.12 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Cummins
2.2 Engine Model KTA19-G4
2.3 Governor/Class Electrical
2.4 Cylinder NO. 6
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged/Aftercooled
2.9 Cooling mode Radiator cooled (enclose water)
2.10 Bore and stroke 159×159mm
2.11 Compression ratio 14.5:1
2.12 Displacement 19L
2.13 Engine Prime Power at 1500rpm 448KWm
2.14 Engine Standby Power at 1500rpm 504KWm
2.15 Battery capacity 190A/hr
2.16 Starting/Min temperature 0℃
2.17 Lubrication oil capacity 50L
2.18 Coolant capacity - radiator and engine (40℃) 91L
2.19 Exhaust temp - full load prime 538℃
2.20 Exhaust gas flow - full load prime 5162m3/h
2.21 Exhaust gas back pressure max 76mmHg
2.22 Air flow - radiator (40℃ ambient) 13.7 m 3/s
2.23 Pusher fan head (duct allowance) 40℃ 13mmH 2O
2.24 Air intake - engine- full load prime 1912m3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type #0 Diesel (Natural temperature)
2.27 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.28 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model Stamford
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 721.7A
3.12 Efficiency 0.938
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 1250kg

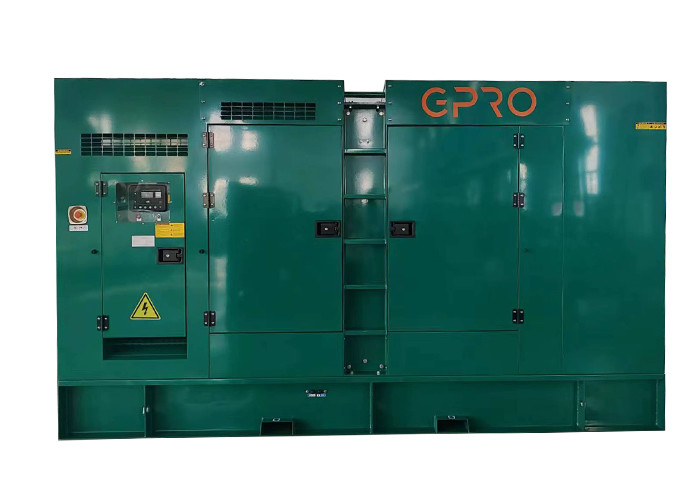

60HZ 500KVA Power Cummins Diesel Generators Super Silent KTA19- G4 Engine 0

There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.



ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.

Standard Supply Scope:


Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card



Optional supply scope:


1.ATS

2. SynchronizationSystem

3. External daily fuel tank

4. Silent Canopy

5. Trailer

6. Auto Fuel Pump

7. Fuel and Water Separator

8. Lub Oil Heater

9. Coolant Heater

10. Fuel Drain Pump



Advantages:



. We are a powerful and unity sales team:

. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

90% of our sales team members are with more than 5 years of experience in the generator field.

. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.

. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.

. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.



If have any questions, please contact us. Your inquiry would be appreciated.

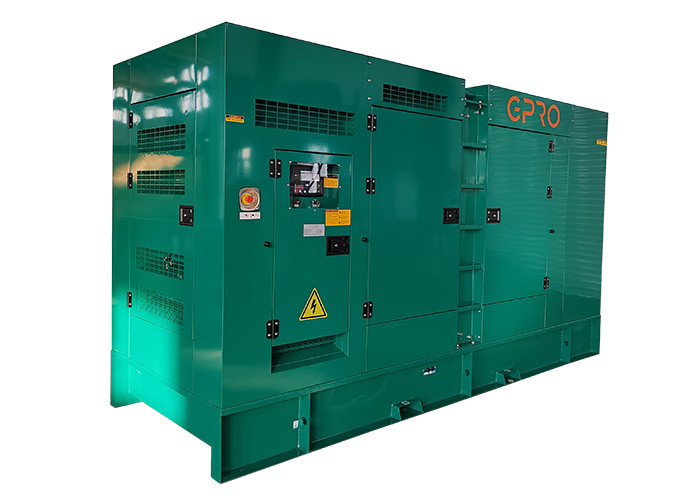

60HZ 500KVA Power Cummins Diesel Generators Super Silent KTA19- G4 Engine 1

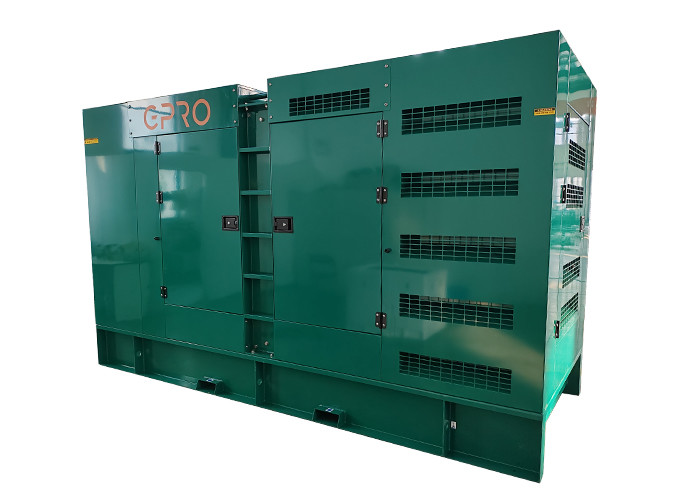

60HZ 500KVA Power Cummins Diesel Generators Super Silent KTA19- G4 Engine 2
