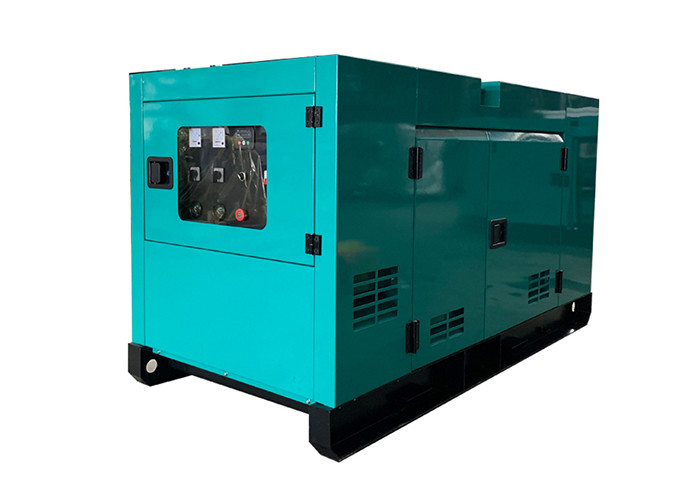

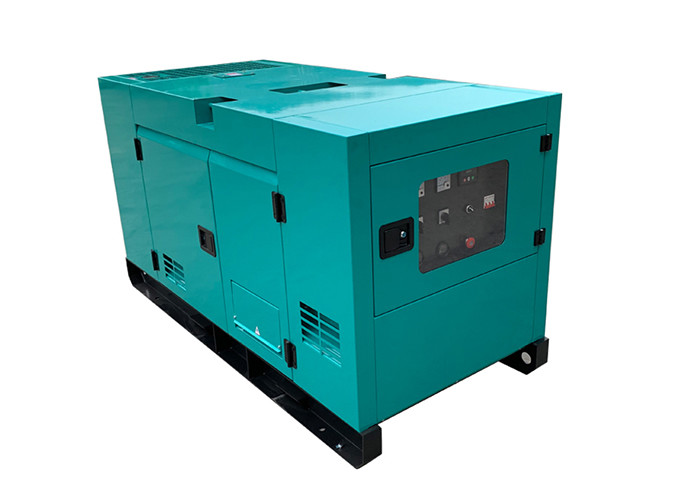

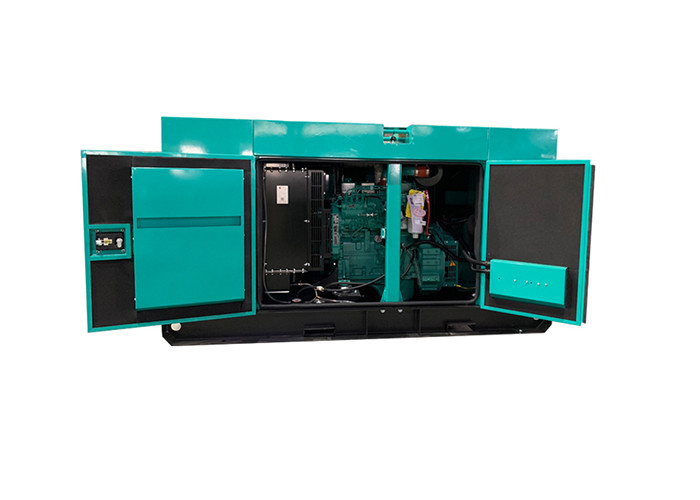

FAWDE Engline 30KW Silent Running Diesel Generators Low Owning And Operating Cost
| Specification of PowerFriend Genset | ||
| Genset | Genset Model | GP41FWS |
| Prime at 50HZ, 40℃ ambient | 30KW 38KVA | |
| Standby at 50HZ, 40℃ ambient | 33KW 41KVA | |
| Rated Gen-set output | 230/400V 50Hz | |
| Dimension (L×W×H)mm | Open: 1800*800*1150, Silent: 2320*1060*1150 |
|
| Weight | Open: 800kg, Silent: 1200kg | |
| Fuel consumption 100% prime load | 8.3L/H | |
| Rated currency | 54A | |
| Circuit Breaker | Delixi/CHINT or Customized | |
| Base fuel tank | At least for 8-hour contunuous running | |
| Controller | Deepsea/ ComAp/ Smartgen | |
| Noise Level/dBA @7m(Silent type only) | 65 | |
| Engine | Engine Brand | FAWDE |
| Engine Model | 4DX21-53D | |
| Governor/Class | Mechanical or Electronic | |
| Cylinder NO. & Build | 4 | |
| Cooling mode | Line | |
| Bore and stroke | 102×118 mm | |
| Compression ratio | 17:01 | |
| Displacement | 3.86 | |
| Engine Prime Power at 1500rpm | 39KWm | |
| Engine Standby Power at 1500rpm | 43KWm | |
| Alternator | Alternator Brand | Stamford type, brushless, 100% copper |
| Insulation class | H | |
| Protection class | IP23 | |
Description:
1. Power Range: 0-150KVA
2. Engine: FAWDE
3. Alternator: Genuine Stamford, Marathon, Meccalte, etc
4. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing,
5. ATS is optional
6. Type: Open type, Soundproof type, Trailer type, Container type, etc
7. Color: Can be customized
Applications:
1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,
6. Standby power or main power, indoor or outdoor using.
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
