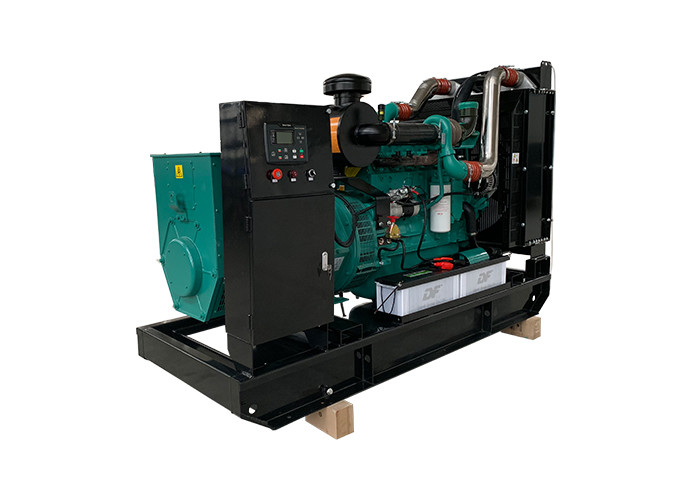

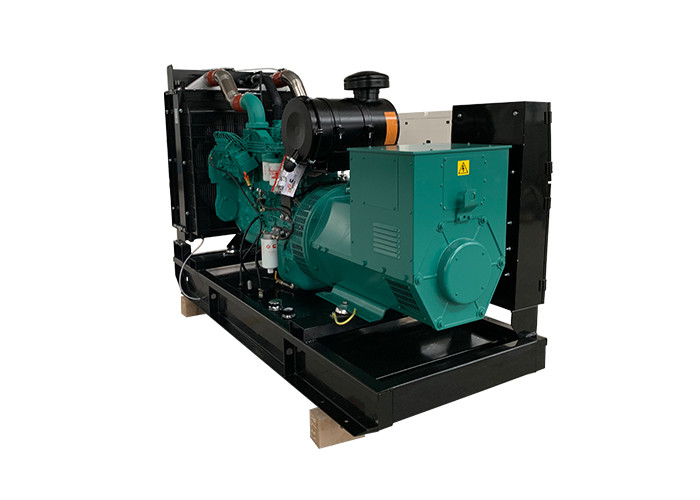

120kw Cummins Diesel Generators Electronical Governor And Powered By Engine

1 SET
MOQ
Negotiation
Price
120kw Cummins Diesel Generators Electronical Governor And Powered By Engine
Features Gallery Product Description Request A Quote
Features
Specifications
Output Power: 120KW 150KVA
Frequency: 50/60HZ
Voltage: 220v - 690v Optional
Engine: Cummin Or Chinese Brand For Optional
Alternator: Stamford, Meccalte For Optional
Controller: Deepsea, Smartgen, Harsen For Optional
MCCB: ABB Or Delixi
Type: Water Cooling
Genset Type: Open Type Or Silent Type
Water Heater: Optional
High Light:

cummins diesel genset

,

emergency diesel generator

Basic Infomation
Place of Origin: Jiangsu of China
Brand Name: GPRO
Certification: ISO,CE Certification
Model Number: GP165DC
Payment & Shipping Terms
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
Product Description

120kw Cummins Diesel Generators Electronical Governor And Powered By Engine



GENERATOR SET

Model

PF-DC165S

Prime power  (KW/KVA)

150/120(KVA/KW)

Standby power  (KW/KVA)

165/130(KVA/KW)

Rated Voltage

400V/230V

Phase Number

3

Power Factor

0.8 COSØ

Genset Type

Soundproof/Silent type

Net Weight

2300 KG

Coupling Method

SAE Disc-coupling

Dimension(L*W*H)(mm)

2274*980*1472

DIESEL ENGINE

Brand & Model

Cummins 6CTAA8.3-G2

Rated Speed

1500RPM

Cylinder Number

6L

Bore*Stroke

114*135 mm

Displacement

30.84m3/min

ALTERNATOR

Alternator Brand & Model

Stamford 274E

Type

Brushless & self-excited, AVR regulation

Phase Number/Poles

3 Phase 4 wires

Voltage

400V

Frequency

50HZ

Power Factor

0.8

Insulation Grade

H

Protection Grade

IP23



120kw Cummins Diesel Generators Electronical Governor And Powered By Engine 0

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional



Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!
