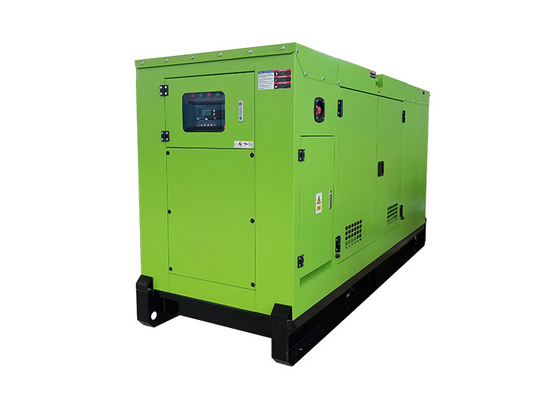

Electric 100Kw 125Kva Cummins Diesel Generators Silent Type Low Fuel Consumption

1
MOQ
negotiable
Price
Electric 100Kw 125Kva Cummins Diesel Generators Silent Type Low Fuel Consumption
Features Gallery Product Description Request A Quote
Features
Specifications
Power(Prime/Standby): 100KW/125KVA
Frequency: 50/60hz
Current: 180A
Voltage: 220v-690v
Engine: Cummins 6BTA5.9-G2
Alternator: Meccalte/Stamford/Marathon/China Brand
Controller: Deepsea/Smartgen/Harsen
MCCB: ABB/Delixi
Warranty: One Year Or 1000hrs
Fuel Tank: 8 Hours Contunuous Running
High Light:

cummins power generator

,

emergency diesel generator

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: GPRO
Certification: ISO14001, ISO9001, CE, PVOC ,
Model Number: GP138DCS
Payment & Shipping Terms
Packaging Details: Plywooden box or plastic poly
Delivery Time: 25 days after advance payment
Payment Terms: T/T or L/C
Supply Ability: 500pcs/ Month
Product Description

Electric 100Kw 125Kva Cummins Diesel Generators Silent Type Low Fuel Consumption



1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP138DCS
1.2 Prime at 50HZ, 40℃ ambient 100KW  125KVA
1.3 Standby at 50HZ, 40℃ ambient 110KW 138KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 3025X1080X1650mm
1.7 Weight 1650kg
1.8 Fuel consumption 100% prime load 18L/h
1.9 Total heat radiated to ambient 17KW
1.10 Noise Level at 7m (Normal/Super) 72/62dB
1.11 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.12 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand DongFeng / Cummins
2.2 Engine Model 6BTA5.9-G2
2.3 Governor/Class Electrical
2.4 Cylinder NO. 6
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged
2.9 Cooling mode Radiator cooled (enclose water)
2.10 Bore and stroke 102×120 mm
2.11 Compression ratio 17.5:1
2.12 Displacement 5.9 L
2.13 Engine Prime Power at 1500rpm 96KWm
2.14 Engine Standby Power at 1500rpm 106KWm
2.15 Battery capacity 100A/hr
2.16 Starting/Min temperature 4℃
2.17 Lubrication oil capacity 16L
2.18 Coolant capacity - radiator and engine (40℃) 28L
2.19 Exhaust temp - full load prime 498℃
2.20 Exhaust gas flow - full load prime 1020m 3/h
2.21 Exhaust gas back pressure max 76mmHg
2.22 Air flow - radiator (40℃ ambient) 2.1 m 3/s
2.23 Pusher fan head (duct allowance) 40℃ 10mmH 2O
2.24 Air intake - engine- full load prime 248m 3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type #0 Diesel (Natural temperature)
2.27 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.28 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model Stamford/UCI274E
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 206A
3.12 Efficiency 0.903
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 385kg



Electric 100Kw 125Kva Cummins Diesel Generators Silent Type Low Fuel Consumption 0

There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.



ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.

Standard Supply Scope:


Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card



Optional supply scope:


1.ATS

2. SynchronizationSystem

3. External daily fuel tank

4. Silent Canopy

5. Trailer

6. Auto Fuel Pump

7. Fuel and Water Separator

8. Lub Oil Heater

9. Coolant Heater

10. Fuel Drain Pump



Advantages:



. We are a powerful and unity sales team:

. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

90% of our sales team members are with more than 5 years of experience in the generator field.

. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.

. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.

. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.



If have any questions, please contact us. Your inquiry would be appreciated.

Electric 100Kw 125Kva Cummins Diesel Generators Silent Type Low Fuel Consumption 1
