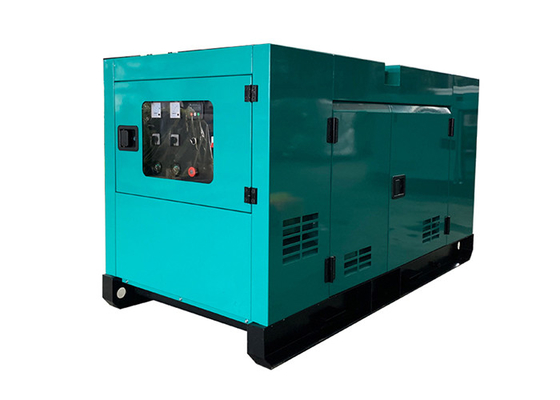

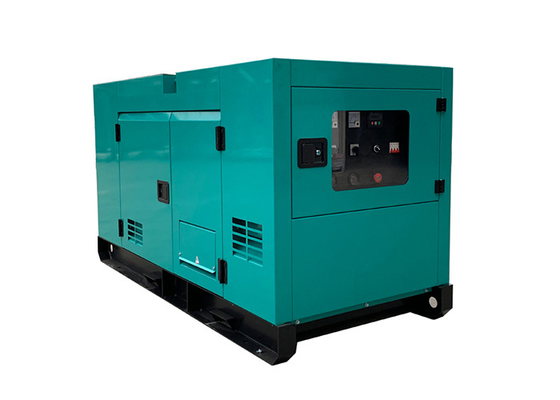

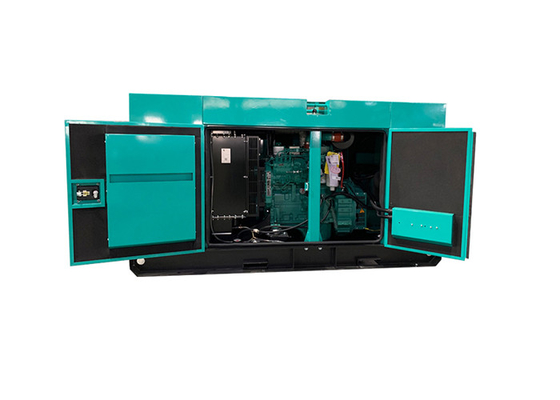

Ac 3 Phase Fawde Synchronous 4 Cylinder Diesel Generator Silent Type 20kva
20kva FAWDE diesel generator specification:
| Genset Model | GP22FWS |
| Prime Power | 16KW/20KVA |
| Standby Power | 18KW/22KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50 HZ |
| Rated Current | 30A |
| Genset Structure | Silent |
| Noise Level | 65dB (7meters) |
| Dimension (Silent type) | 2000x940x1200MM |
| Net Weight(Silent type) | 1100KG |
| Engine Model | FAWDE / 4DW91-29D |
| Engine Features | 4-cylinder,4 stroke,water cooled, direct injection |
| Bore * Stroke | 90*100 |
| Displacement | 2.54L |
| 12-hour Power | 21/1500 |
| Fuel Consumption | 240 |
| Compression Ratio | 17:1 |
| Starting Mode | Electric Starter 12V |
| Fuel Tank Capacity | 40L |
| Alternator Model | Original STAMFORD / PI144D |
| Rated Power | 16KW/20KVA |
| Max Power | 18KW/22KVA |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
Description:
1. Chinese FAWDE Diesel Engine
2. Alternator: Stamford / Mecc Alte / Chinese brand engine

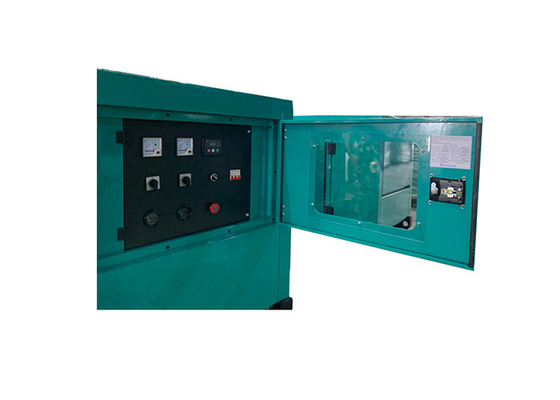

3. Controller: UK Deepsea / Smartgen / ComAp / Harseen
4. Options: remote controller, synchronizing.
5. ATS is optional: Aiskai / Socommec / ABB and so on brand
6. Type: Silent type, weather proof, Trailer type
7. Color: Any color
8. Support OEM
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow
Competitive Advantage:
1. Competitive price
2. Good quality engine and alternator
3. Fast delivery. engine in stock
4. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
5. Use high standard of sponge to make soundproof.
6. The canopy design is user friendly, and easy for maintenance.
7. Pre and after sales service is provided.
8. 365 days, 24 hours after sale service
FAQ:
Q1: What is your warranty period?
A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
Q2: Does your generator have global warranty?
A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.
Q3: What is your payment terms?
A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
Q4: What is your delivery time?
A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
Q5: Can the generators be customized?
A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
Q6: Can you use our logo?
A6: Yes. For mass orders, we can use customer's logo instead of ours.
