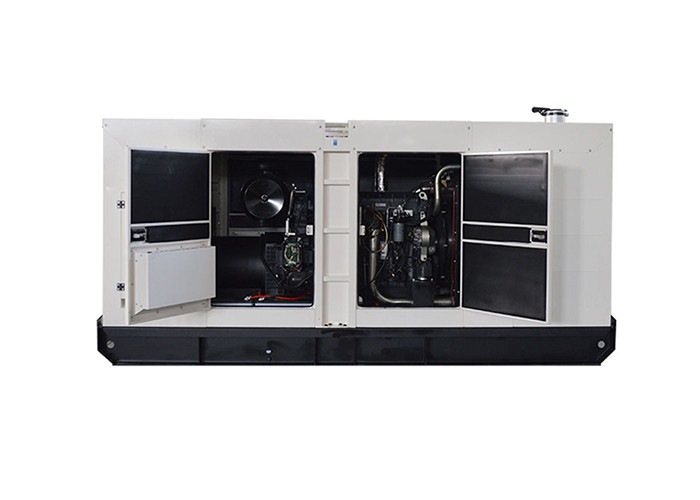

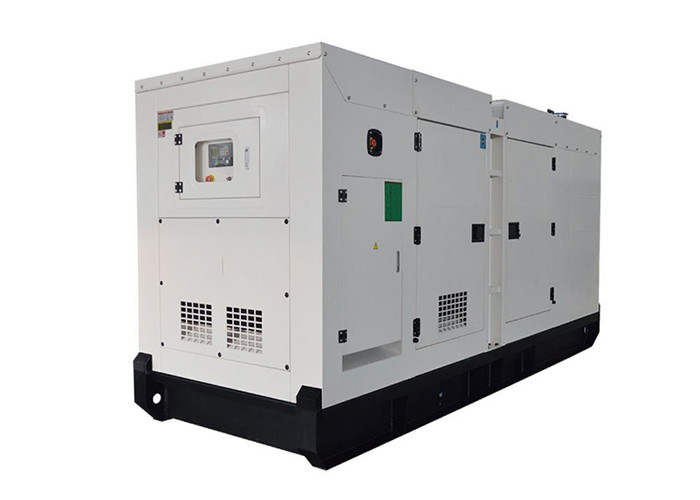

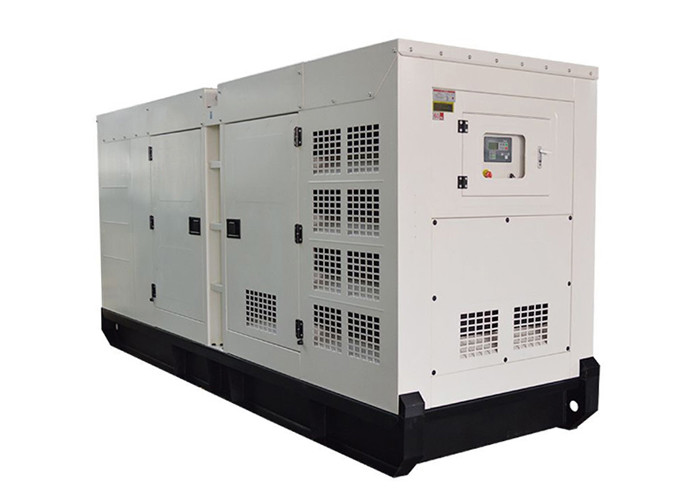

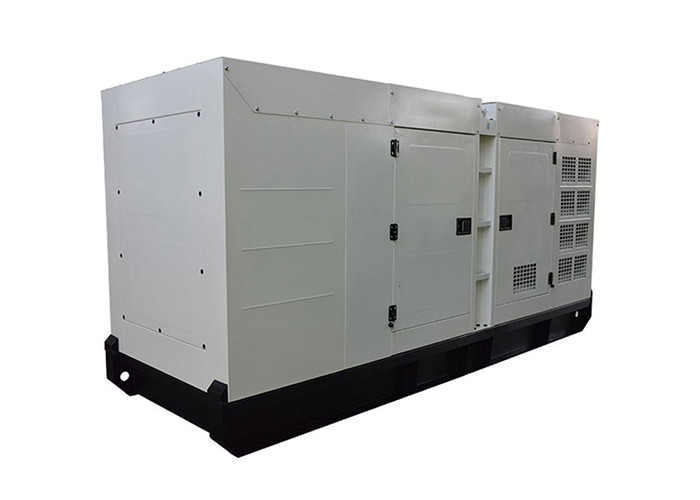

Liquid Cooling Low Noise 3 Phase Diesel Generator 300kw With Italy Engine

1 set
MOQ
Very best
Price
Liquid Cooling Low Noise 3 Phase Diesel Generator 300kw With Italy Engine
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Power: 300KW/375KVA
Frequency: 50HZ / 60HZ
Current: 540A
Voltage: 220/380V, 230V/400V, 240V/415V
Engine: FPT/ (ITALY) CURSOR13TE2A
Controller: Smartgen/ DeepSea/ Comap
MCCB: Delixi/ ABB
Warranty: 1 Year Or 1000 Hours
Alternator: Meccalte
Fuel Tank: 8 Hours
ATS: Option
High Light:

electric generating set

,

rental power generators

Basic Infomation
Place of Origin: WUXI, CHINA
Brand Name: GPRO
Certification: ISO/CE
Model Number: GP413FPS
Payment & Shipping Terms
Packaging Details: poly wooden case or plastic poly
Delivery Time: 20 days
Supply Ability: 500 sets / Month
Product Description

 Liquid Cooling Low Noise 3 Phase Diesel Generator 300kw With Italy Engine

300kw FPT generator specification:

Genset Model PF-IV413S
Prime Power 300KW/375KVA
Standby Power 330KW/413KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 220/380V
Frequency 50 HZ
Rated Current 600A
Genset Structure SILENT
Noise Level 75 dBA@7m
Dimension 4300X1600X1800MM
Net Weight 3800KG
Engine Model FPT FPT / CURSOR13TE
Engine Features 6-cylinder,4 stroke,water cooled
Bore * Stroke 135*150
Displacement 12.9L
12-hour Power(kw) 400kw/1500
Fuel Consumption 100% 81.3l/h
Compression Ratio 17:1
Starting Mode Electric Starter 24V
Fuel Tank Capacity 500L
Alternator Model MECC /ECO40-1S / 4
Rated Power 320KW/400KVA
Max Power 352KW/440KVA
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
Smartgen 6120 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator


Liquid Cooling Low Noise 3 Phase Diesel Generator 300kw With Italy Engine 0
Description:


1.    Power Range: 413kva

2.    Engine: Original Italy Fiat FPT engine

3.    Alternator: Genuine Stamford, Marathon, Meccalte, etc

4.    Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing, etc.

5.    ATS is optional

6.    Type: Open type, Soundproof type, Trailer type, Container type, etc

7.    Color: Can be customized


Applications:

1.    Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc

2.    Home use: personal use for house, camping, party, etc

3.    Telecom, Mobile tower, etc

4.    Island, Desert or any place without electricity

5.    As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.

6.    Standby power or main power, indoor or outdoor using.


Competitive Advantage:


1.    Full power range.

2.    All genuine engines and alternators.

3.    The components we use are in high quality.

4.    Fast delivery. Big quantity of Engines in stock.

5.    The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.

6.    Use high standard of sponge to make soundproof.

7.    The canopy design is user friendly, and easy for maintenance.

8.    Pre and after sales service is provided.

9.    Fast response for the inquires, service, etc.



Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!

Liquid Cooling Low Noise 3 Phase Diesel Generator 300kw With Italy Engine 1
