50HZ 150kw Power Cummins Diesel Generators Super Silent with control panel Smartgen 6120
Specification on 206KVA Silent Cummins diesel generator:
| Technical specification | |
| Genset Model | GP206DCS |
| Prime Power | 150KW/188KVA |
| Standby Power | 165KW/206KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50 HZ |
| Rated Current | 271A |
| Genset Structure | SILENT |
| Dimension | 3400×1280×1785mm |
| Net Weight | 2400KG |
| Noise level | 75dB at 7 meters |
| Fuel Tank Capacity | 240L |
| Engine Model | 6CTA8.3-G2 |
| Engine Features | 6-cylinder,4 stroke,water cooled ,Turbo |
| Bore * Stroke | 114mm × 135mm |
| Displacement | 8.3L |
| 12-hour Power(kw) | 163KW/1500 |
| Fuel Consumption L/H | 39.7L/H |
| Compression Ratio | 17.3:1 |
| Governor type | ELECTIC |
| Alternator Model | STAMFORD /UCI274H |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | |
| Smartgen 6120 | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
Description:
1. Power Range: 188KVA--206KVA
2. Engine: 6CTA8.3-G2
3. Alternator: STAMFORD
4. Controller: Smartgen with or without AMF. Options: remote controller, synchronizing, etc.
5. ATS is optional
6. Type: Soundproof type
7. Color: Can be customized
Applications:
1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway, etc
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow, etc.
6. Standby power or main power, indoor or outdoor using.
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.

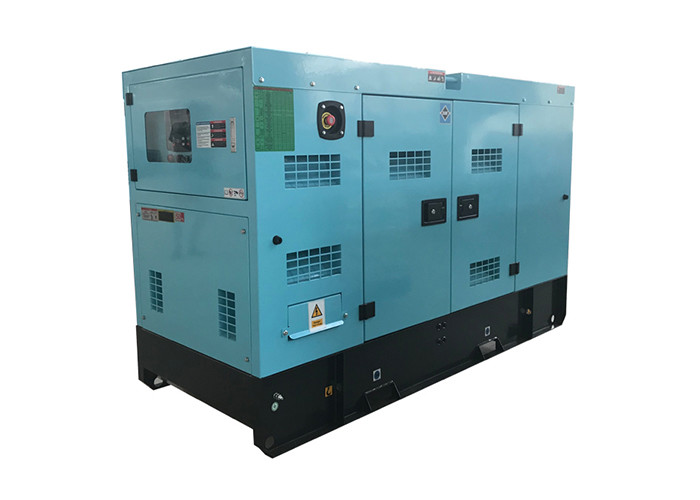

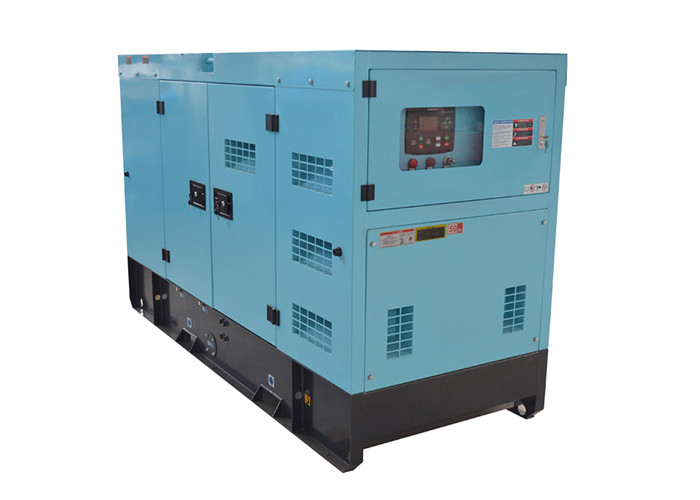

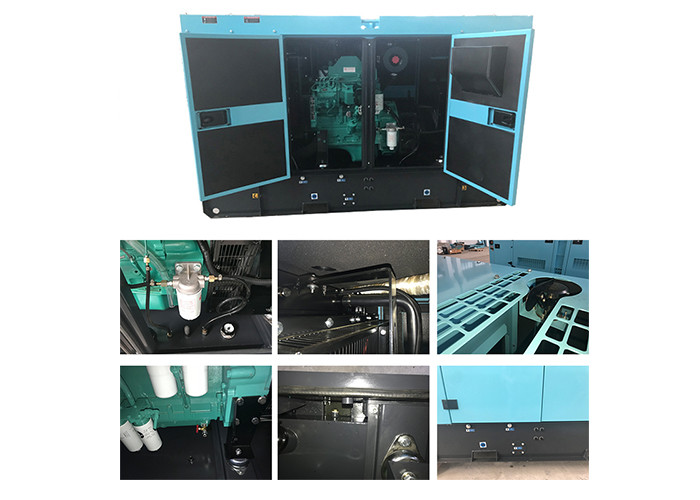

150kw Soundproof type generator photos:
Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
