YUCHAI 100kva low noise type Diesel generator set 3 phase 50hz
ABOUT OF 100KVA YUCHAI CONTAINER GENERATOR:
Technical specification | |
Genset Model | GP110YCS |
Prime Power | 80KW/100KVA |
Standby Power | 88KW/110KVA |
Phase Number | 3 |
Power Factor | 0.8 |
Rated Voltage | 230/400V |
Frequency | 50 HZ |
Rated Current | 108A |
Genset Structure | SILENT |
Dimension | 2800×1100×1450mm |
Net Weight | 1800KG |
Engine Model | YC6B135Z-D20 |
Engine Features | 6-cylinder,4 stroke,water cooled ,Turbo |
Bore * Stroke | 108mm × 125mm |
Displacement | 6.9L |
12-hour Power(kw) | 90KW/1500 |
Fuel Consumption L/H | 21.2L/H |
Compression Ratio | 17.5:1 |
Alternator Model | GP274C |
Excitation Mode | brushless self-excited |
Insulation Class | H |
Protection Class | IP23 |
Construction Type | SAE Disc-coupling |
Controler panel | |
Smartgen 6120 | intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
Description:
1. Rated power: 100KVA / 80KW
2. Standby power: 110KVA / 88KW
2. Engine: Chinese brand -- yuchai
3. Alternator: Stamford / MeccAlte
4. Controller: Smartgen
5. Type: Open type, super silent type, weatherproof type, Trailer type
Applications:
1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,
6. Standby power or main power, indoor or outdoor using.

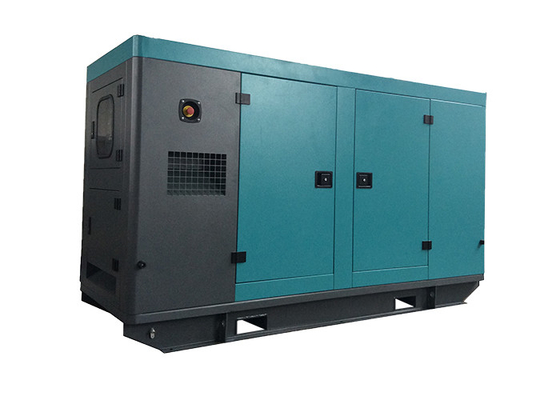

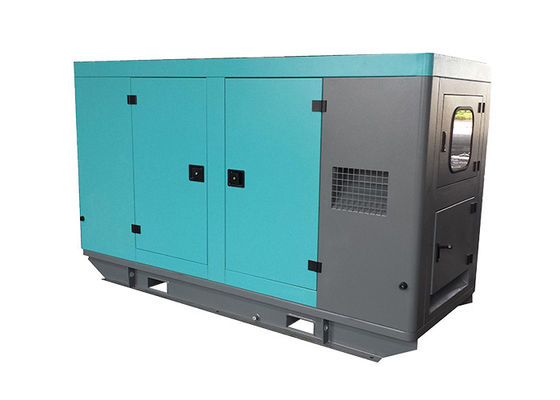

Generators photos:
