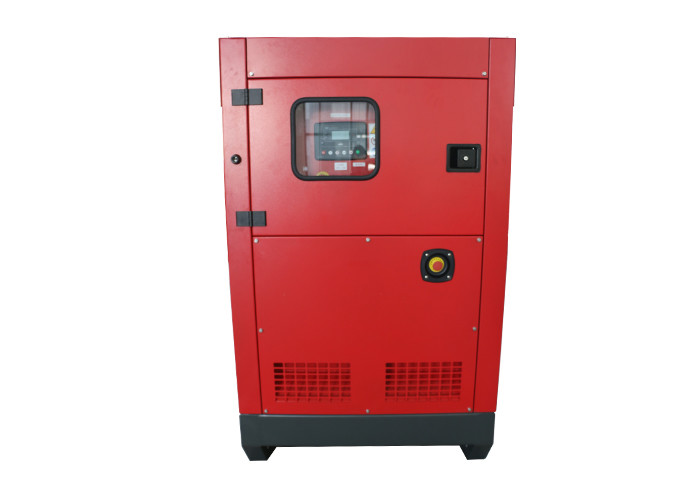

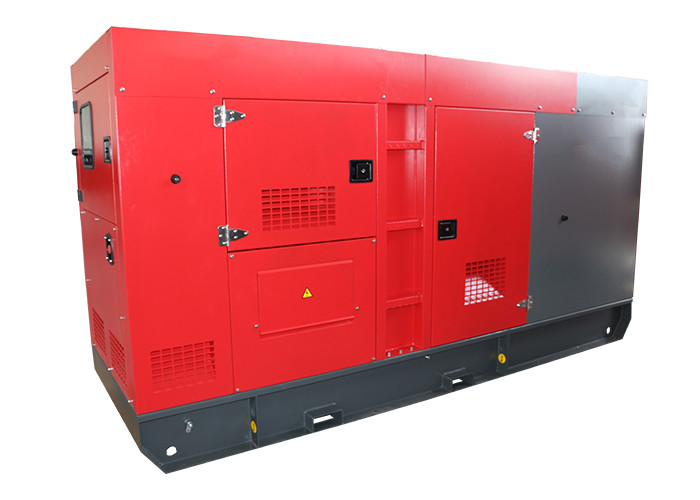

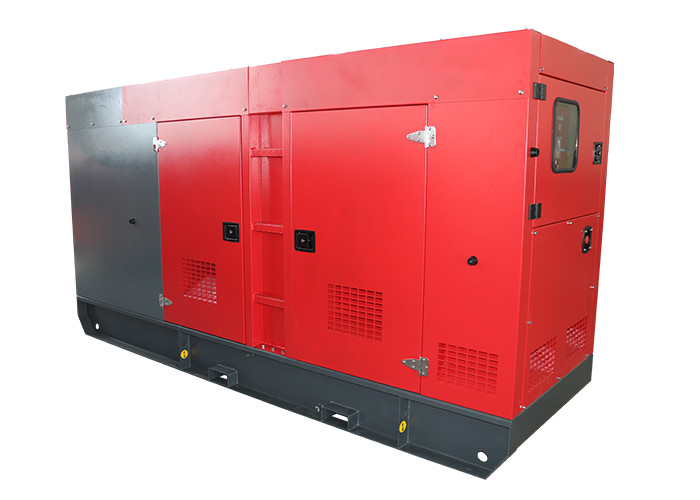

Green 200kva 160kw Diesel Genset Low Rpm Mute Industrial Diesel Generator

1 set
MOQ
Negotiation
Price
Green 200kva 160kw Diesel Genset Low Rpm Mute Industrial Diesel Generator
Features Gallery Product Description Request A Quote
Features
Specifications
Power Rate: 200kva
Frequency: 50HZ
Engine Model: FPT IVECO/NEF67TM7
Voltage: 230/400V
Alternator: Option
Controller: Smartgen / DeepSea
MCCB: Delixi /ABB
Warranty: 1 Year Or 1000 Hours
Protection Class: IP23
High Light:

water cooled diesel generator

,

electric generating set

Basic Infomation
Place of Origin: WUXI
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: GP220FPS
Payment & Shipping Terms
Packaging Details: poly wooden case
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets / Month
Product Description

Green 200kva 160kw Diesel Genset Low Rpm Mute Industrial Diesel Generator


Product Description
Technical specification
Genset Model GP220FPS
Prime Power 160KW/200KVA
Standby Power 176KW/220KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 288.7A
Genset Structure SILENT
Dimension 3600×1280×1860mm
Net Weight 3200KG
Noise level 75 dba @ 7 meters
Engine Model FPT IVECO/NEF67TM7
Engine Features 6-cylinder,4 stroke,Turbocharged aftercooled
Bore * Stroke 104mm × 132mm
Displacement 6.7L
12-hour Power(kw) 176.5KW/1500
Fuel Consumption L/H 42.1L/H
Compression Ratio 17.5:1
Governor type Mechnical
Alternator Model MECC ALTE/ECO38-2SN/4
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Smartgen 6120 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator


 Green 200kva 160kw Diesel Genset Low Rpm Mute Industrial Diesel Generator 0

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional



Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!


Green 200kva 160kw Diesel Genset Low Rpm Mute Industrial Diesel Generator 1

FAQ
FAQ

Q1: What is your warranty period?
A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).

Q2: Does your generator have global warranty?
A2: Yes. Global warranty service is available depending on the engines and alternators you choose.
Please contact us for more details.

Q3: What is your payment terms?
A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.

Q4: What is your delivery time?
A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.

Q5: Can the generators be customized?
A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.

Q6: Can you use our logo?
A6: Yes. For mass orders, we can use customer's logo instead of ours.
