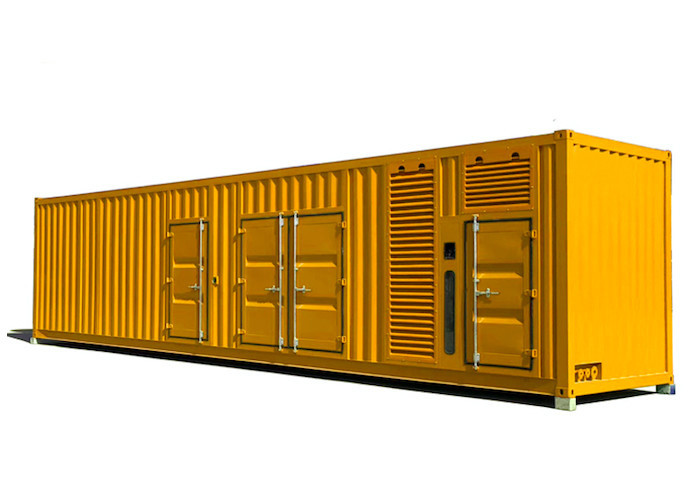

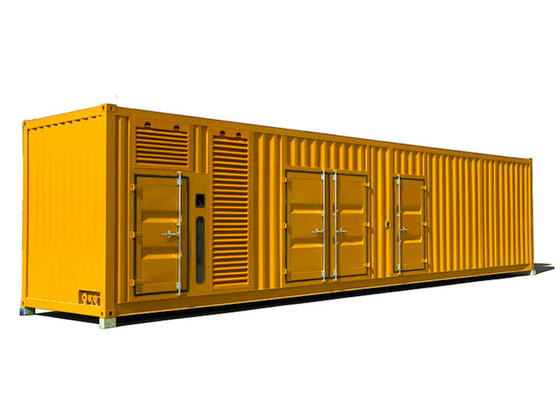

1200kw Water Cooling Cummins Diesel Generators , Containerized Generator

1 SET
MOQ
1200kw Water Cooling Cummins Diesel Generators , Containerized Generator
Features Gallery Product Description Request A Quote
Features
Specifications
Generator Type: Standard Container Type Canopy
Engine Model: Cummins KTA50-GS8
Alternator: STAMFORD / MECC ALTE
Controller: DEEPSEA / SMARTGEN
Fuel Tank: 2000L
Certificate: ISO9001/ISO14001/CE/PVOC
Weight: 13000KG
Sound Level: 85dB/7m
Type: Water Cooling
High Light:

cummins power generator

,

cummins diesel genset

Basic Infomation
Place of Origin: WUXI city China
Brand Name: GPRO
Certification: ISO/CE/PVOC
Model Number: GP1650CCS
Payment & Shipping Terms
Packaging Details: with poly bag
Delivery Time: 35 days
Product Description

 1200kw Water Cooling Cummins Diesel Generators , Containerized Generator



Technical specification
Genset Model GP1650CCS
Prime Power 1200KW/1500KVA
Standby Power 1320KW/1650KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 2165A
Genset Structure SILENT
Dimension 12192×2435×2896mm
Net Weight 13000KG
Noise level 86dB at 7 meters
Engine Model KTA50-GS8
Engine Features 12-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 159mm × 159mm
Displacement 50.3L
12 HOURS Power(kw) 1287KW/1500
Fuel Consumption L/H 311L/H
Compression Ratio 14.9:1
Governor type ELECTIC
Alternator Model STAMFORD /PI734C
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
DeepSea 7320 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator



1200kw Water Cooling Cummins Diesel Generators , Containerized Generator 0

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional



Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!

1200kw Water Cooling Cummins Diesel Generators , Containerized Generator 1
