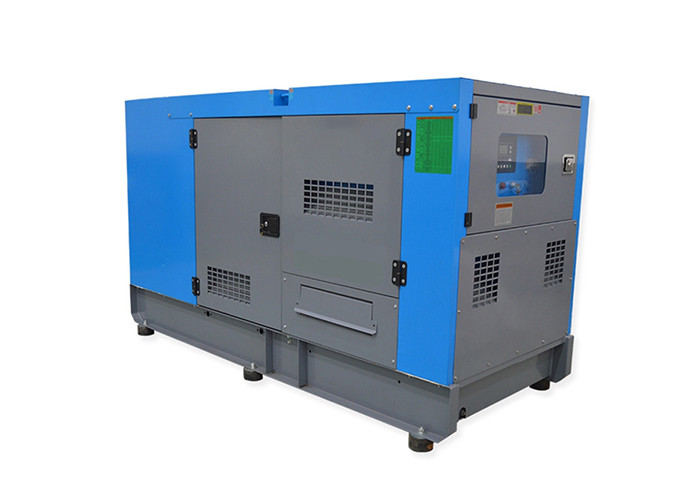

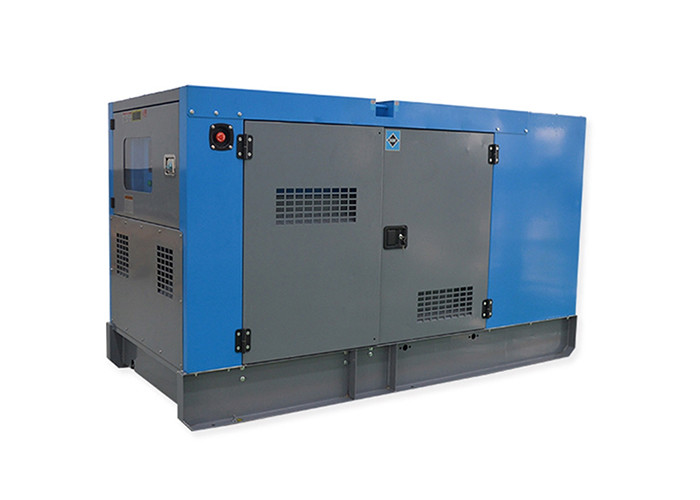

Canopy Super Silent Diesel Generator Set Output Power 50kva 40kw 3 Phase

1 SET
MOQ
Negotiation
Price
Canopy Super Silent Diesel Generator Set Output Power 50kva 40kw 3 Phase
Features Gallery Product Description Request A Quote
Features
Specifications
Output Power: 40KW 50KVA
Frequency: 50HZ
Voltage: 230/400V
Engine: FAWDE
Alternator: STAMFORD
MCCB: ABB Or Delixi
Cooling System: Water Cooled
ATS: Optional
Governor/Class: Mechanical Or Electronic
Cylinder NO.: 4
Color: As Customer's Require
Sound Level: 65 DBA
High Light:

emergency diesel generator

,

silent diesel generator set

Basic Infomation
Place of Origin: Jiangsu of China
Brand Name: GPRO
Certification: ISO,CE Certification

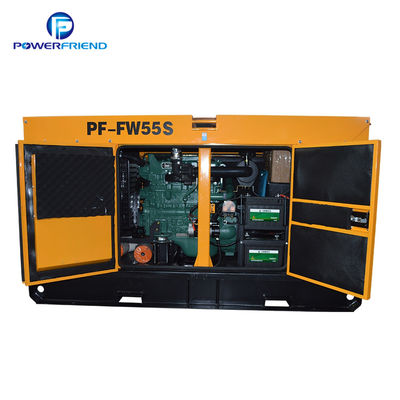

Model Number: PF-FW55S
Payment & Shipping Terms
Packaging Details: Plywood or Plastic packing
Delivery Time: 15~30 days
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
Product Description


Canopy Super Silent Diesel Generator Set Output Power 50kva 40kw 3 Phase


1. SPECIFICATIONS OF GEN-SET
1.1Set ModelGP55FWS
1.2Prime at 50HZ, 40℃ ambient40KW 50KVA
1.3Standby at 50HZ, 40℃ ambient44KW 55KVA
1.4Rated Gen-set output230/400V 50Hz
1.5Rated Relative humidity≤ 60 %
1.6Dimension (L×W×H)Open: 1800*760*1150,
Silent: 2450*1060*1350
1.7WeightOpen: 900kg, Silent: 1300kg
1.8Fuel consumption 100% prime load11.1

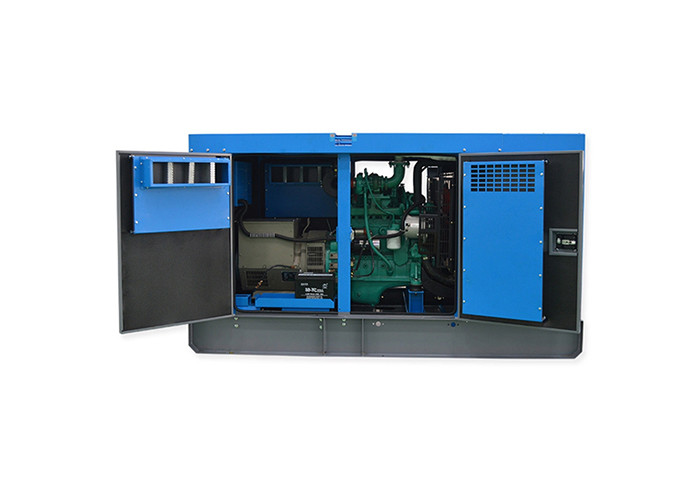

1.9Structure of Gen-setThe Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
2Control system (Optional)Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1Engine BrandFAWDE
2.2Engine Model4DX23-65D
2.3Governor/ClassMechanical or Electronic
2.4Cylinder NO.4
2.5Engine buildLine
2.6Emission compliantStage II
2.7start-up method24V, electric
2.8Air intake typeNatural
2.9Cooling modeWater Cooling
2.10Bore and stroke102×118 mm
2.11Compression ratio17:01
2.12Displacement3.86
2.13Engine Prime Power at 1500rpm33KWm
2.14Engine Standby Power at 1500rpm36KWm
2.15Lubrication oil capacity12.5L
2.16Oil consumption0.7
2.17Dry weight of base350Kg
2.18Dry weight of Gen Pac375Kg
2.19Overall dimension(G.P)1155×680×835(mm)
2.2Overall dimension(base)810×680×800(mm)
2.2127℃ air consumption ( m³/ min)2.6
2.22Fuel type#0 Diesel (Natural temperature)
2.23Filter systemAdopt whole changeable lubricating oil, fuel filter and air filter
2.24Exhaust systemAdopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTERNATOR
3.1Alternator ModelPI 144G
3.2Alternator TypeA.C. Synchronous
3.3Rated Voltage230/400V
3.4Rated Frequency50HZ
3.5Rated speed1500 RPM
3.6Voltage regulation modeAuto
3.7Alternator voltage regulation±0.5%
3.8Exciting modeBrushless self exciting
3.9Power factor0.8 (lagging)
3.10Phase & wires3 phase 12 wires
3.11Rated currency45.1A
3.12Efficiency0.862
3.13Insulation classH
3.14Protection classIP23
3.15Single load step to NFPA110100%
3.16StandardsIEC34-1,NEMA1
3.17Max. Ambient Temperature40℃
3.18Min. Ambient Temperature- 20℃
3.19Max. altitude1000m
3.20Weight156㎏

Canopy Super Silent Diesel Generator Set Output Power 50kva 40kw 3 Phase 0

Testing Items of Power Friend Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.


Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
