CE ISO9001 500KW 625KVA Silent Generator Set 10 Cylinder Water Cooled

1 set
MOQ
Negotiation
Price
CE ISO9001 500KW 625KVA Silent Generator Set 10 Cylinder Water Cooled
Features Gallery Product Description Request A Quote
Features
Specifications
Power Rate: 500KW
Frequency: 50HZ/60HZ
Voltage: 230/400V
Alternator: STAMFORD /HCI544FS
Warranty: 1 Year Or 1000 Hours
Protection Class: IP23
Cooling System: Water Cooling
Displacement: 8.7L
Construction Type: SAE Disc-coupling
High Light:

power generating set

,

silent diesel generators

Basic Infomation
Place of Origin: WUXI
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: GP688DS
Payment & Shipping Terms
Packaging Details: poly wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets / Month
Product Description

CE ISO9001 500KW 625KVA Silent Generator Set 10 Cylinder Water Cooled



Product Description



1. Engine low fuel consumption.

2. All orignal engines and alternators.

3. The components we use are in high quality.

4. Fast delivery. Big quantity of Engines in stock.

5. The generator set is mounted on a heavy duty fabricated steel skid type base frame with anti vibration mounting pads.

6. Use high standard of sponge to make soundproof.

7. The canopy design is user friendly, and easy for maintenance.

8. Pre and after sales service is provided.

9. Fast response for the inquires, service, etc.



Genset Model GP688DS
Prime Power 500KW/625KVA
Standby Power 550KW/688KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 902A
Genset Structure SILENT
Dimension 5000×1800×2450mm
Net Weight 5500KG
Noise level 83dB at 7 meters
Fuel Tank Capacity 800L
Engine Model DP180LB
Engine Features 10-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 128mm × 142mm
Displacement 18.3L
MAX Power(kw) 540KW/1500
Fuel Consumption L/H 136.4L/H
Compression Ratio 15:01
Governor type ELECTIC
Alternator Model STAMFORD /HCI544FS
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Smartgen 6120 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator

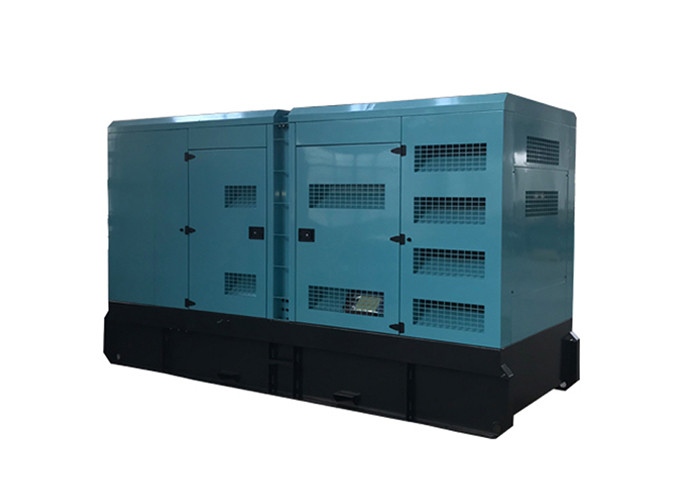

CE ISO9001 500KW 625KVA Silent Generator Set 10 Cylinder Water Cooled 0

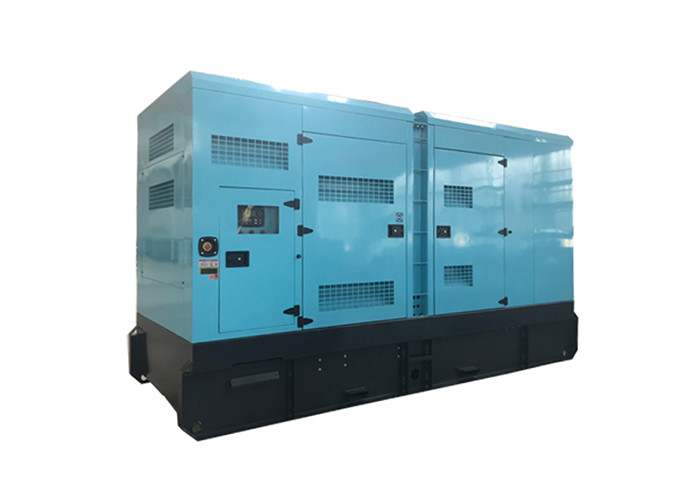

CE ISO9001 500KW 625KVA Silent Generator Set 10 Cylinder Water Cooled 1
