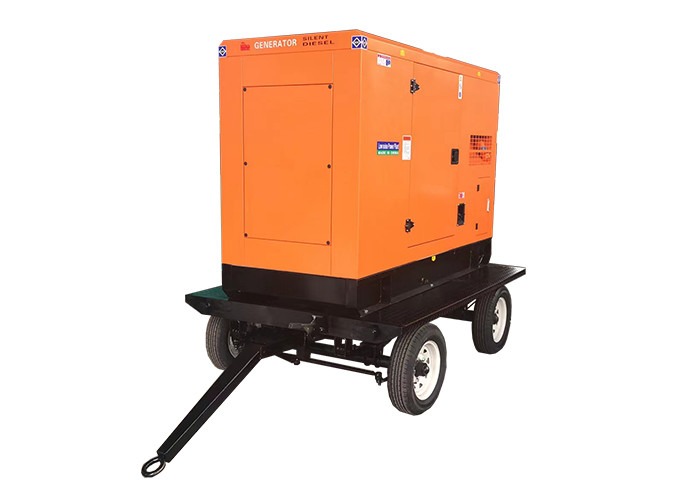

Mobile Power 80kw 100kva Cummins Diesel Generators , Trailer Mounted Generator

1 set
MOQ
Negotiation
Price
Mobile Power 80kw 100kva Cummins Diesel Generators , Trailer Mounted Generator
Features Gallery Product Description Request A Quote
Features
Specifications
Power Rate: 80kw
Frequency: 50HZ/60HZ
Voltage: 230/400V
Alternator: Stamford/Leroy Somer/Marathon For Optional
Warranty: 1 Year Or 1000 Hours
Protection Class: IP23
Cooling System: Water Cooling
Construction Type: SAE Disc-coupling
Engine: Chinese Brand Or Famous Brand For Optional
Options: ATS/Fuel Tank Capacity
High Light:

cummins power generator

,

cummins diesel genset

Basic Infomation
Place of Origin: WUXI
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: GP110DCT
Payment & Shipping Terms
Packaging Details: poly wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets / Month
Product Description

Mobile Power 80kw 100kva Cummins Diesel Generators , Trailer Mounted Generator



1. Specification of Genset
Gensets ModelGP110DCT
Prime/ Standby Power80kw/100kva 88kw/110kva
Rated Voltage380/220V
Rated Frequency (HZ)50
Rated Speed1500rpm
Power Factor0.8(lagging)
Dimensions (mm) (L×W×H)1710x700x1340
Genset Weight (kg)960
2. Specification of Diesel Engine
Engine BrandOptional
Engine Model/
Number of Cylinders6
Cylinder ArrangementVertical in-line
CycleFour stroke
AspirationTurbocharged, Water cooling
Fuel SystemPT type fuel pump, EFC
Bore×Stroke (mm×mm)159 x 159
Displacement (Liter)50.3
Compression Ratio13.9:1
Speed GovernorElectronic
Cooling SystemForced Water Cooling Cycle
Total lubrication System Capacity (L)95
Fuel Consumption at 100% Load (L/H)57
Starting MethodDC24V electrical starting
3. Specification of Alternator
Alternator BrandStamford / Meccalte
Alternator ModelUCI 274C
Number of Phase3
Connecting Type3 Phase and 4 Wires
Number of Bearing1
Protection GradeIP21
Altitude≤1000m
Exciter TypeBrushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation ClassH
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%~+20%
4. Specification of Control Panel (with Deepsea Controller)
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure, high water temperature,over speed, over load protection function.
The features of Deepsea controller:

Deepsea controller is a new generation automatic control module for single genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of genset for user or special assembly factory.


Mobile Power 80kw 100kva Cummins Diesel Generators , Trailer Mounted Generator 0
Description:

1. Diesel Cummins engine
2. Alternator: Italy Mecc alte / Stamford
3. Controller: Deepsea or Smartgen with or without AMF.
4. Options: remote controller, synchronizing.
5. ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.
6. Type: Silent type, weather proof, Trailer type
Applications:
1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake
Competitive Advantage:

1. User friendly with low emissions
2. More power reserve, better performance
3. Fast delivery. Big quantity of Engines in stock.
4. Good parts commonality
5. Original FAW engine , good quality , good price.

Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.

Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.

If have any questions, please contact us. Your inquiry would be appreciated.
Mobile Power 80kw 100kva Cummins Diesel Generators , Trailer Mounted Generator 1
