6kw Home Use Diesel Small Portable Generators With Wheels , High Speed

Basic Information
Place of Origin: WUXI CITY CHINA
Brand Name: POWER FRIEND
Certification: ISO9001/ISO14001/CE
Model Number: PD7500ES
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Carton box
Delivery Time: 20 days
Supply Ability: 2000 sets / Month
Contact Now
Power(Prime/Standby): 6KVA / 6.5KVA Frequency: 50/60HZ
Current: 20A Voltage: 220/230/240v
Engine: PowerFriend 188FAE 4 Stroke Alternator: 100% Copper
Controller: Electric Start Sound Level/db: 68dB At 7m
Warranty: 1 Year Or 1000 Hours Speed: 3000rpm / 3600rpm
Cooled: Air Cooled Colour: Optional
High Light:

silent portable generator

,

small diesel generators

6kw Small home use Diesel Generators Portable With Wheels on sell

 GENERATOR SPECIFICATION:





Genset Model No. PD7500E (Open type) PD7500ES (Silent type)
Rated frequency (Hz) 50/60 50/60
Rated voltage (v) 230 120/240 230 120/240
Rated output power(kW) 6.0 6.2 6.0 6.2
Rated rotation speed(rpm) 3000/3600 3000/3600
DC Output 12v 8.3A 12v 8.3A
Power factor 1 1
Phase number Single phase Single phase
Noise level dB@7m 75 75
Overall dimension (L*W*H)MM 780x500x650 950x560x750
Net weight 107 165

Engine Engine type 188FAE 188FAE
Structure type Single cylinder , in lined 4 stroke, air cooled direct injection Single cylinder , in lined 4 stroke, air cooled direct injection
Bore * stroke mm 88X75 88X75
Displacement ml 456 456
Compression ratio 19:01 19:01
Rated output(kw/rpm) 6.6/3000 6.9/3600 6.6/3000 6.9/3600
Lubrication system pressure splashed pressure splashed
Lue oil brand Above CD SAE 10W 30 15W 40 Above CD SAE 10W 30 15W 40
Staring system 12V Electric starter 12V Electric starter
Starting motor capacity 12V 0.8KW 12V 0.8KW
Charging generator capacity 12V 3A 12V 3A
Battery capacity 12V 36AH 12V 36AH
Fuel consumption rate(g/kw.h) 3000rpm 265,3600rpm 275 3000rpm 276,3600rpm 285
Fuel type Diesel 0# or 10# 35# Diesel 0# or 10# 35#
Fuel tank capacity (L) 15 15
Continuous Running time(H) 8 8





Applications:



1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway

2. Home use: personal use for house, camping, party, etc

3. Island, Desert or any place without electricity

4. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow

5. Emergency power supply

6. Where couldnt stop power







Competitive Advantage:



1. Use 100% copper alternator

2. 24 hours / 7 days after sale service

3. 14 days delivery time

4. Produce engines / canopy and assemble by ourselves.

5. New design , competitive price

6. Super silent , eacy for maintance

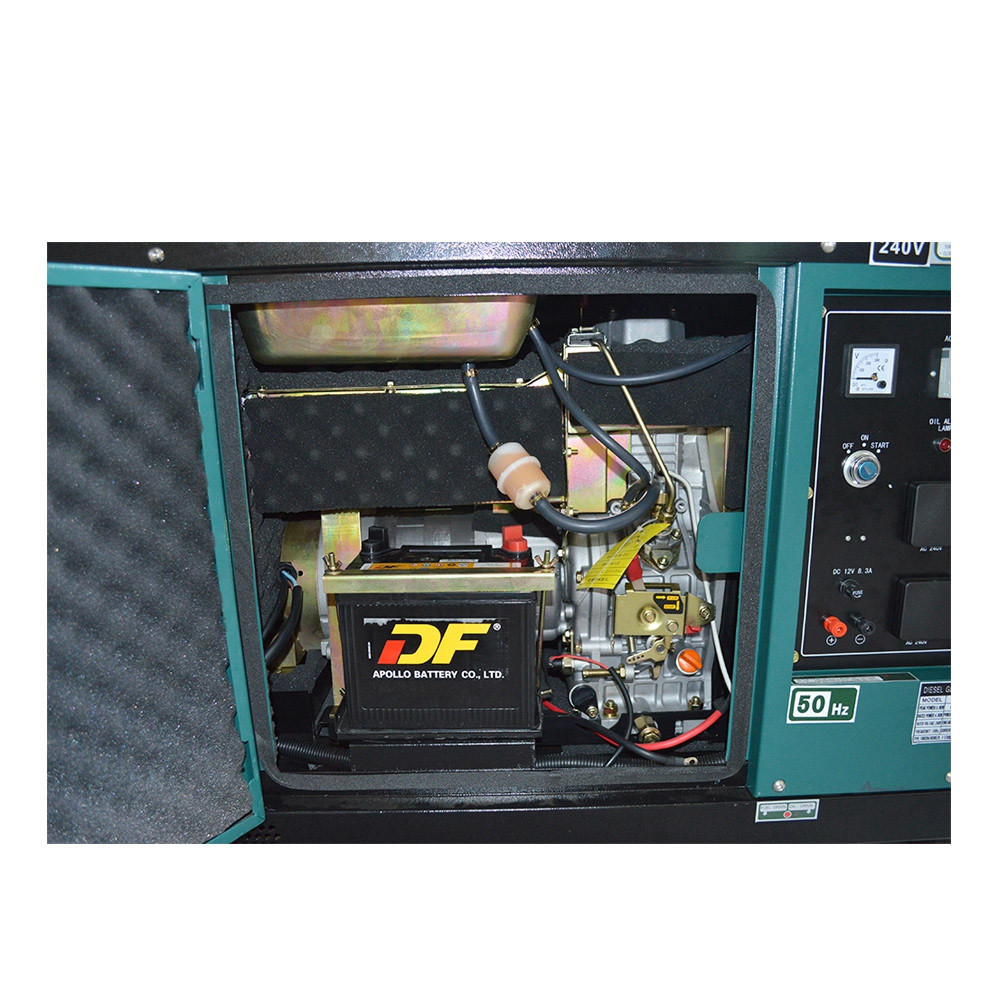

6KVA Ultra silent portable generator photos:



6kw Home Use Diesel Small Portable Generators With Wheels , High Speed
