5KW Super Silent Small Portable Generators With Diesel 186FAE Electric Start

1 set
MOQ
TBD
Price
5KW Super Silent Small Portable Generators With Diesel 186FAE Electric Start
Features Gallery Product Description Request A Quote
Features
Specifications
Model: PD6500T
Certificate: CE/ISO9001
Starting Method: Mechanical Or Electronic
Color: Depend
Cooling System: Air Cooling
Exporting Countries: America/Philippines/Malaysia/Indonesia/Vietnam/Middle East
Option: Automatic Transfer Switch
Speed: 3000/3600rpm
Rated Current: 22A
Voltage: Optional
High Light:

silent portable generator

,

small diesel generators

Basic Infomation
Place of Origin: WUXI, CHINA
Brand Name: GPRO
Certification: ISO9001/ CE /
Model Number: PD6500T
Payment & Shipping Terms
Packaging Details: poly wooden case or plastic poly
Delivery Time: 25 work days
Supply Ability: 250 sets / Month
Product Description

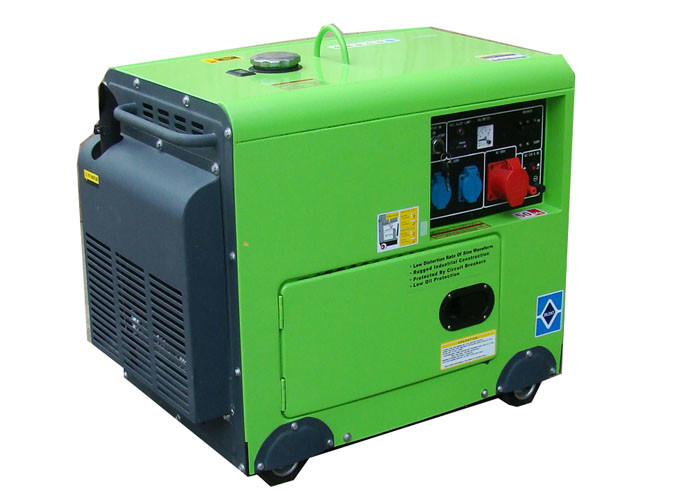

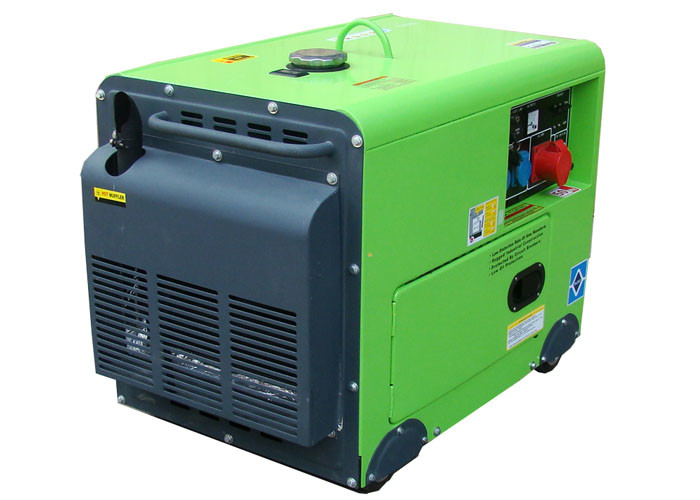

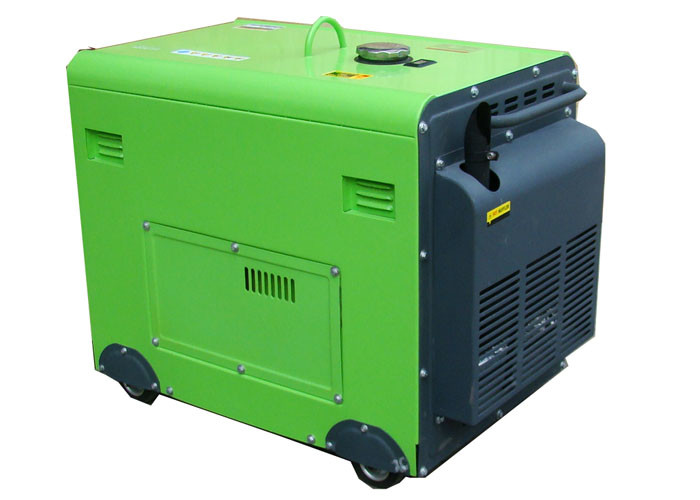

Portable 5KW Super Silent Generator with diesel 186FAE electric start

Product Parameters:

  PD6500T
(Classical Silent Type)
Genset Rated frequency (Hz) 50/60
Rated voltage (v) 230 120/240
230/400v 277/480V(depend)
Rated output power(kW) 4.5 5
Max power(kW) 5 5.5
Phase number Single phase or three phase
Noise level dB@7m 72
Overall dimension (L*W*H)MM 950x560x750
N.W/G.W(kg) 170/180
Engine Engine type 186FAE
Structure type Single cylinder, 4-stroke, air-cooled,
direct-injected
Staring system 12V Electric starter
Displacement ml 418
Rated output(kw/rpm) 5.9/3000 6.5/3600
Fuel tank capacity (L) 15
Continuous Running time(H) 8
Alternator 100% copper, brushless, with AVR

t3







portable  use

portable packing

Once receive any feedback of quality problem we will respond at the first time, and solve the problems within 24 hours.

  • Guarantee:

Warraty period is one year or 1000 hours (depends on which occurs first ). If the failure is caused by turbine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable spare parts of genset caused by crew wearing parts, consumable parts for daily use, human error , negligence or failure of following the original maintenance manual provisions, etc.

  • Free training:

We can professionally arrange experienced engineers to provide users with free training in our factory . Certainly , we also provide the paid training of customers’ site.



Company advantages
  • We are a powerful and unity sales team:

we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

90% of our sales team members are with more than 5 years of experience in the generator field.

  • We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.
  • We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.
  • With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.
