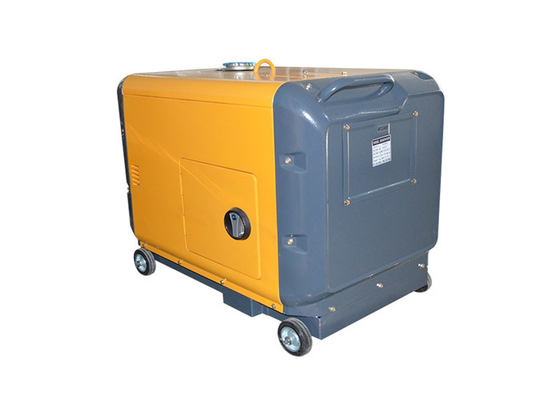

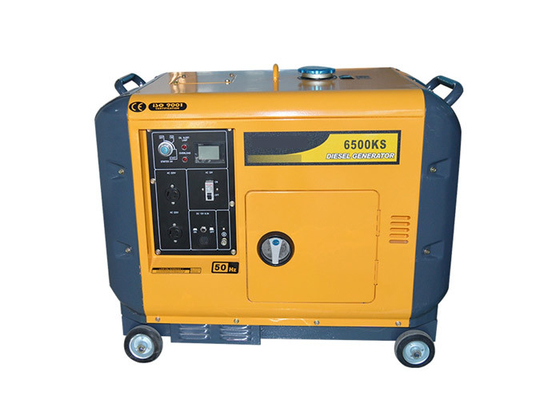

Super Small Quiet Generators Single Phase 5kva / 5Kw Portable Diesel Generator

10 Units
MOQ
$450-$600
Price
Super Small Quiet Generators Single Phase 5kva / 5Kw Portable Diesel Generator
Features Gallery Product Description Request A Quote
Features
Specifications
Power(Prime/Standby): 5kva/5kw
Frequency: 50/60HZ
Current: 22.7A
Voltage: 220/230/240v
Engine: 186FAE 4 Stroke
Alternator: 100% Copper
Controller: Electric Start
Sound Level/db: 67dB At 7 Meters
Warranty: 1 Year Or 1000 Hours
Speed: 3000rpm / 3600rpm
Certificate: ISO9001/ ISO14001/ CE
Wheels: Universal Wheel
High Light:

silent portable generator

,

small diesel generators

Basic Infomation
Place of Origin: Wuxi, China
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE
Model Number: PD6700KS
Payment & Shipping Terms
Packaging Details: Carton box
Delivery Time: 15 days after advance payment
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000 sets / Month
Product Description



Super Silent Single phase 5kva /5Kw Portable diesel Generator


Specification  Generator:



Genset Model No. PD6700KS
(Super Silent type)
Rated frequency (Hz) 50/60
Rated voltage (v) 230 120/240
Rated output power(kW) 5.0 6.0
Rated rotation speed(rpm) 3000/3600
DC Output 12v 8.3A
Power factor 1
Phase number Single phase
Noise level dB@7m 68
Overall dimension (L*W*H)MM 950x560x750
Net weight 165

Engine Engine type 186FAE
Structure type Single cylinder , in lined 4 stroke, air cooled direct injection
Bore * stroke mm 86X72
Displacement ml 418
Compression ratio 19:01
Rated output(kw/rpm) 5.9/3000 6.5/3600
Lubrication system pressure splashed
Lue oil brand Above CD SAE 10W 30 15W 40
Staring system 12V Electric starter
Starting motor capacity 12V 0.8KW
Charging generator capacity 12V 3A
Battery capacity 12V 36AH
Fuel consumption rate(g/kw.h) 3000rpm 276,3600rpm 285
Fuel type Diesel 0# or 10# 35#
Fuel tank capacity (L) 15
Continuous Running time(H) 8



portable  use



Applications:



1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining, railway

2. Household: personal use for house, camping, party, etc

3. Island, Desert or any place without electricity

4. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow

5. Emergency power generation.

6. Where couldnt stop power need emergency.





Competitive Advantage:



1. Use 100% copper alternator

2. 24 hours/7 days after sale service

3. 15 days delivery time

4. Produce engines / canopy and assemble by ourselves.

5. New design , competitive price

6. Super silent , eacy for maintance

7. Fashion canopy design

Our Services
Our services
  • After-sales:

Once receive any feedback of quality problem we will respond at the first time, and solve the problems within 24 hours.

  • Guarantee:

Warraty period is one year or 1000 hours (depends on which occurs first ). If the failure is caused by turbine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable spare parts of genset caused by crew wearing parts, consumable parts for daily use, human error , negligence or failure of following the original maintenance manual provisions, etc.

  • Free training:

We can professionally arrange experienced engineers to provide users with free training in our factory . Certainly , we also provide the paid training of customers’ site.



Company advantages
  • We are a powerful and unity sales team:

we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

90% of our sales team members are with more than 5 years of experience in the generator field.

  • We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.
  • We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.
  • With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.
