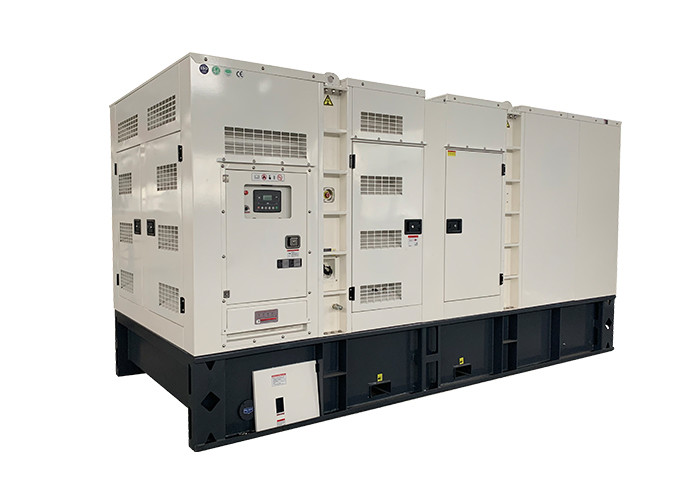

450kw Low Rpm Power Diesel Generator Cummins Engine Three Phase Water Cooled

1 set
MOQ
35900-50000
Price
450kw Low Rpm Power Diesel Generator Cummins Engine Three Phase Water Cooled
Features Gallery Product Description Request A Quote
Features
Specifications
Power Rate: 450KW
Frequency: 50HZ/60HZ
Engine Model: KTAA19-G5
Voltage: 230/400
Alternator: Option
Warranty: 1 Year Or 1000 Hours
Protection Class: IP23
Cooling System: Water Cooling
Type: Silent
Construction Type: SAE Disc-coupling
High Light:

cummins power generator

,

cummins diesel genset

Basic Infomation
Place of Origin: WUXI
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: GP619CCS
Payment & Shipping Terms
Packaging Details: poly wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets / Month
Product Description

450kw Low Rpm Power Diesel Generator Cummins Engine Three Phase Water Cooled



Genset Model GP619CCS
Prime Power 450KW/563KVA
Standby Power 495KW/619KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 813A
Genset Structure SILENT
Dimension 5000×1800×2450mm
Net Weight 5500KG
Noise level 83dB at 7 meters
Fuel Tank Capacity 800L
Engine Model KTAA19-G5
Engine Features 6-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 159mm × 159mm
Displacement 18.9L
12 HOURS Power(kw) 502KW/1500
Fuel Consumption L/H 116.5L/H
Compression Ratio 13.5:1
Governor type ELECTIC
Alternator Model STAMFORD /HCI544E
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
DeepSea 7320 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator



450kw Low Rpm Power Diesel Generator Cummins Engine Three Phase Water Cooled 0

There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.



ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.



Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card



Optional supply scope:
1.ATS

2.SynchronizationSystem

3.External daily fuel tank

4.Silent Canopy

5.Trailer

6.Auto Fuel Pump

7.Fuel and Water Separator

8.Lub Oil Heater

9.Coolant Heater

10.Fuel Drain Pump



Advantages:

. We are a powerful and unity sales team:

. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

90% of our sales team members are with more than 5 years of experience in the generator field.

. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.

. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.

. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.



Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours



If have any questions, please contact us. Your inquiry would be appreciated.

450kw Low Rpm Power Diesel Generator Cummins Engine Three Phase Water Cooled 1

450kw Low Rpm Power Diesel Generator Cummins Engine Three Phase Water Cooled 2
