Place of Origin: | Wuxi, China |
---|---|
Brand Name: | PowerFriend |
Certification: | ISO9001/ISO14001/CE |
Model Number: | PD50D(E),PD80D(E),PD100D(E) |
Minimum Order Quantity: | 10 Sets |
Price: | Negotiable |
Packaging Details: | Carton box |
Delivery Time: | 15 days after advance payment |
Payment Terms: | Western Union, L/C, T/T, MoneyGram, Cash, Credit card |
Supply Ability: | 1000 sets / Month |
Main Data: | 2inch, 3inch, 4inch | Suction: | 50 To 100 M³ |
---|---|---|---|
Rated Power: | 2.8, 4, 6.3KW | Engine: | 170F(E), 178F(E), 186F(E) |
Alternator: | 100% Copper | Controller: | Recoil Start / Electric Start |
Warranty: | 1 Year Or 1000 Hours | Engine Speed: | 3600rpm |
Certificate: | ISO9001/ ISO14001/ CE | Fuel Tank: | Standard Or Big Optional |
High Light: | silent portable generator,small diesel generators |
2inch 3 inch 4 inch agriculture irrigation electric diesel water pump price
Water pump description |
1.Lower consumption, lower noise, lower pollution. Higher efficiency and environmental friendly |
2.Strict testing system, stable voltage and frequency |
3.Secured ground terminal |
4.Stronger automatic startup system, staring within only 1-5s |
5.Smart in size, delicate in style, longer service life |
6.very diversified and customerized choices |
Specifications:
Mode | PD50D(E) | PD80D(E) | PD100D(E) |
Suction, discharge port diameter (mm/in) | 50/2 '' | 80/3'' | 100/4'' |
Discharge capacity (m3/h) | 22 | 30 | 40 |
Max head (m) | 15 | 13 | 16 |
Max suction (m) | 8 | 8 | 8 |
Engine speed (rpm) | 3600 | 3600 | 3600 |
Priming time (s/4m) | 80 | 120 | 180 |
overall dimension (LxWxH) | 520x420x580 | 590x470x600 | 680X500X660 |
Engine Model | 170F(E) | 178F(E) | 186FA(E) |
Structure type | Single cylinder, in lined, 4-stroke, air-cooled, direct-injected |
Single cylinder, in lined, 4-stroke, air-cooled, direct-injected |
Single cylinder, in lined, 4-stroke, air-cooled, direct-injected |
Starting System | Recoil or Electric | Recoil or Electric | Recoil or Electric |
Rated power kw | 2.8 | 4 | 6.3 |
Engine Horse Power | 3.808 | 5.44 | 8.568 |
Displacement ML | 211 | 296 | 406 |
Net weight kg | 35 | 52 | 69 |
Fuel tank capacity L | 2.5 | 3.5 | 5.5 |
Fuel consumption ( g/kw.h) | 288 | 285 | 281 |
Applications:
Agricultural use, irrigation, drainage, paddy field or early field irrigation. Soil improvement or drainage.
Sewage treatment (sewer). Drainage. Relay. Sewage treatment. Discharge sewage, rainwater. Deliver sewage to the treatment tank.
Competitive Advantage:
1. Use 100% copper alternator
2. 24 hours/7 days after sale service
3. 14 days delivery time
4. Produce engines / canopy and assemble by ourselves.
5. New design , competitive price
6. Super silent , eacy for maintance

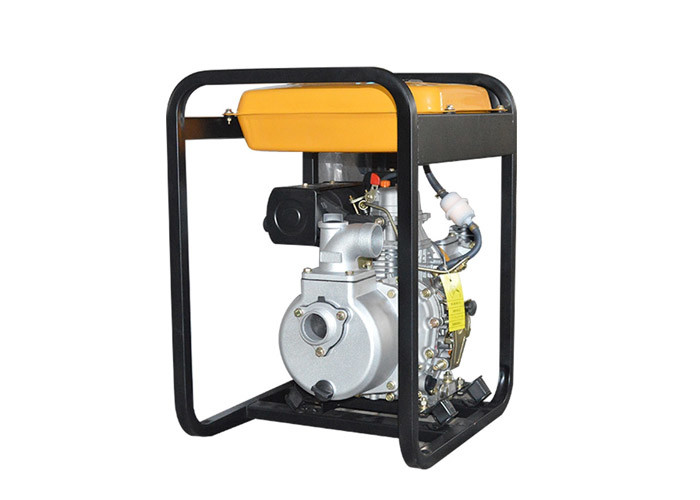

Water Pumpt Photos:
