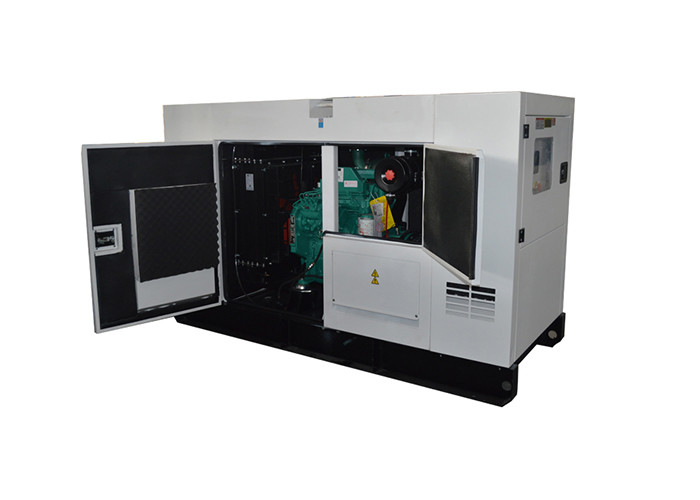

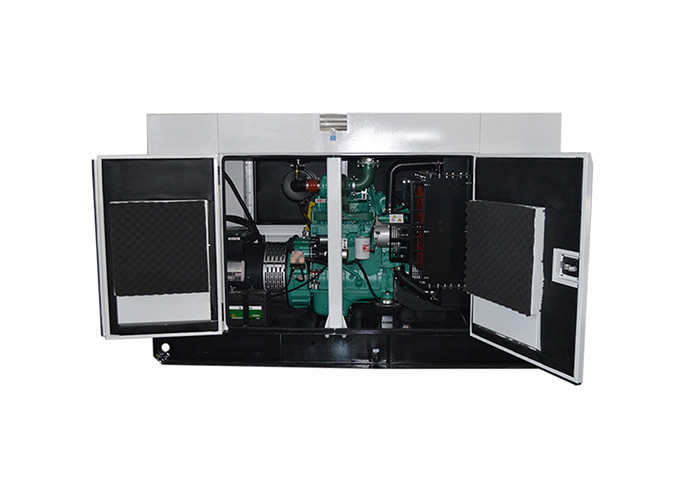

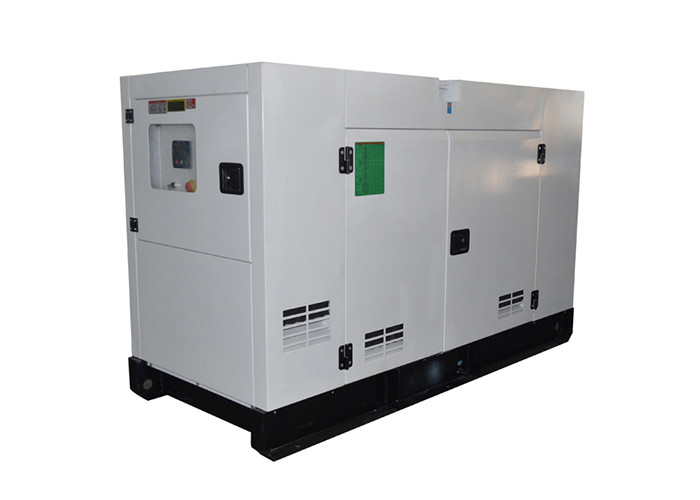

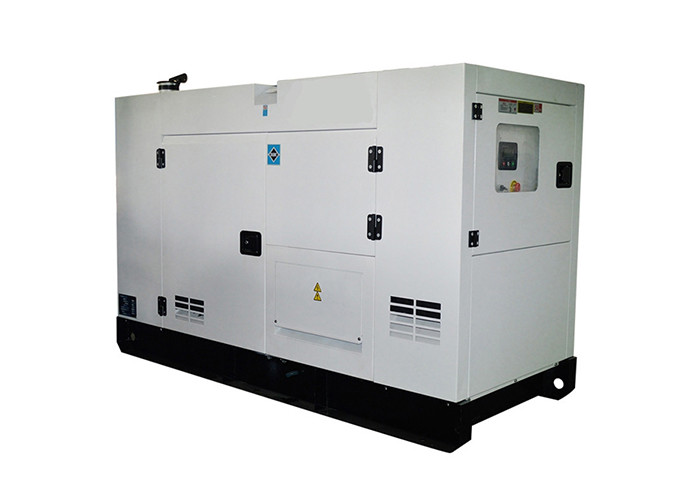

Perkins 3 Phase Electric Start Diesel Generator Silent 20KW 25KVA Power
Product describition
| Genset Model | GP28PS |
| Prime Power | 20KW/25KVA |
| Standby Power | 22KW/28KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50 HZ |
| Rated Current | 36A |
| Genset Structure | SILENT |
| Dimension | 2000×860×1095mm |
| Net Weight | 680KG |
| Noise level | 70dB at 7 meters |
| Fuel Tank Capacity | 45L |
| Engine Model | 404D-22TG |
| Engine Features | 4-cylinder,4 stroke,water cooled ,natural intake |
| Bore * Stroke | 84mm × 100mm |
| Displacement | 2.2L |
| 12-hour Power(kw) | 25KW/1500 |
| Fuel Consumption L/H | 5.5L/H |
| Compression Ratio | 23.3:1 |
| Governor type | ELECTRIC |
| Alternator Model | STAMFORD / PI144E |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler Panel | Deepsea/ ComAp/ Smartgen |
Description:
Diesel engine is an internal -combustion engine, in which air is compressed to a sufficiently high temperature to ignite diesel fuel injected into the combustion chamber. It can be used to power diesel generator , water pump, tiller etc. Since the future emission standard demands, we are always improving the fuel and engine structures to reduce the impact on environment. "Green Engine" is our target. We always pay more attention to climate protection and environmental.
Package & Payment & Delivery Date & WarrantyPackage:Plastic Package.
Payment: by 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 %L/C at sight.
Delivery: 25 days after we get the down payment.
Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of12 months from date of despatch or 1000 running hours from date of commissioning whicheverdate occurs the sooner.
Transation Process:
1. Buyer place order after confirming the details.
2. Seller issue the Proforma Invoice.
3. Buyer pay the advance payment base on the bank details on PI.
4. Seller arrange production immediately after receiving the advance payment.
5. Seller send photos of the products and videos of testing to Buyer.
6. Buyer pay the balance payment after checking the photos and videos.
5. Seller arrange the shipment base on Fob/CNF/CIF/DDU, and send photos of packing and shipping.
FAQ
Q1: What is your warranty period?
A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
Q2: Does your generator have global warranty?
A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details
Q3: What is your payment terms?
A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
Q4: What is your delivery time?
A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
Q5: Can the generators be customized?
A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
Q6: Can you use our logo?
6: Yes. For mass orders, we can use customer's logo instead of ours.
