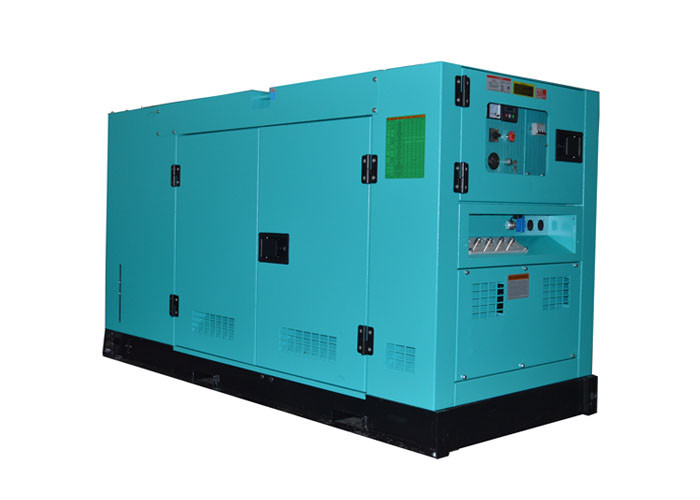

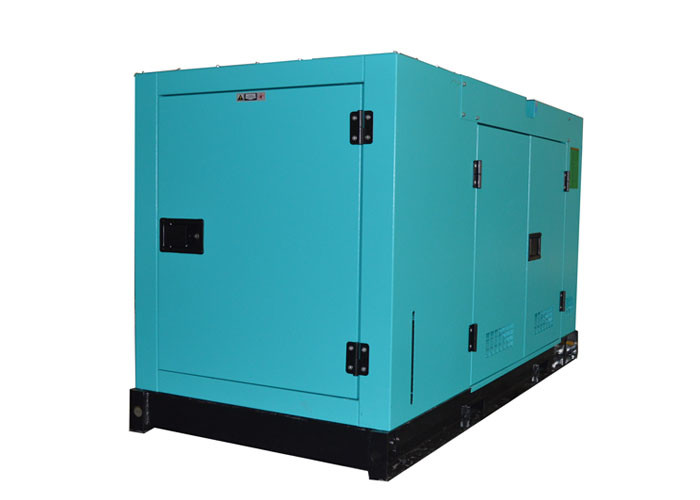

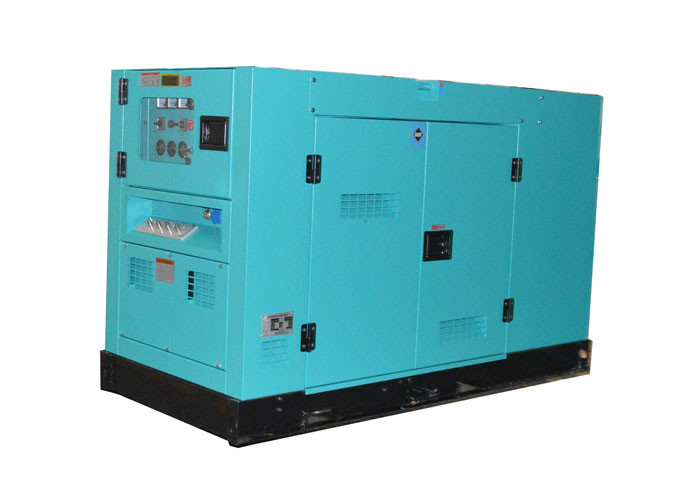

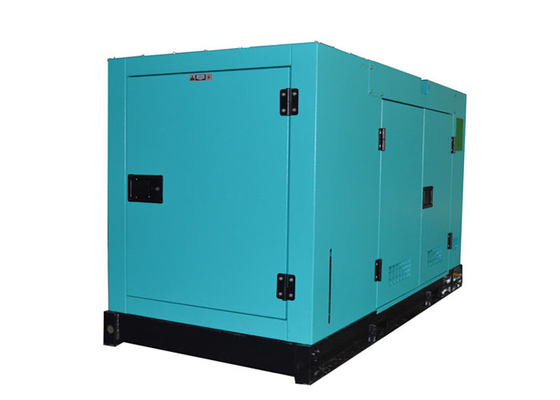

60kva Silent Generator Set With Cummins Engine AC 3 Phase 4 Cylinders

1set
MOQ
Negotiation
Price
60kva Silent Generator Set With Cummins Engine AC 3 Phase 4 Cylinders
Features Gallery Product Description Request A Quote
Features
Specifications
Governor Type: ELECTRONIC
Rated Voltage:: 220V/380V
Alternator Model: Stamford/ Maccalte/ GPRO
Insulation Class: H
Protection Class: IP23
Speed:: 1500/1800rpm
Waranty: One Year Or 1000hrs
Frequency:: 50HZ/60HZ
Rated Currency: 91.2A
Controller: Deepsea/ ComAp/ Smartgen
Phase:: 3
Noise Level/dBA: 75
High Light:

power generating set

,

silent diesel generators

Basic Infomation
Place of Origin: China (Mainland)
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE
Model Number: GP66DCS
Payment & Shipping Terms
Packaging Details: Packed in Foam and Ply wooden box
Delivery Time: 10~30 days
Supply Ability: 1000 per month
Product Description

60kva Silent Generator Set with cummins engine AC 3 Phase 4 Cylinders


Specification of GPRO Genset
GensetGenset ModelGP66DCS
Prime at 50HZ, 40℃ ambient48KW/60KVA
Rated Voltage220/380V
Rated Frequency (HZ) 50Hz/60
Weight1400KG
Rated currency91A
Circuit BreakerDelixi/CHINT or Customized
Base fuel tankAt least for 8-hour contunuous running
ControllerDeepsea/ ComAp/ Smartgen
Noise Level/dBA @7m(Silent type only)75

EngineEngine BrandDCEC
Engine Model6BTAA5.9-G2
Engine Features4-cylinder,water cooled ,Turbo
Bore * Stroke159mm × 159mm
Displacement5.3L
12-hour Power(kw)120KW/1500
Fuel Consumption L/H26.5L/H
Compression Ratio16.5:1
Governor typeELECTIC

AlternatorAlternator BrandStamford/ Maccalte/ GPRO
Insulation classH
Protection classIP23




Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours

Our Services:
Warranty period is one year or 1000 running hours ( depends on which occurs first). If the failure is caused by trubine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable sapre parts of genset caused by crew wearing parts, consumable parts for daily use, human error, negligence or failure of following the original maintenance manual provisions, etc.

The Reliable Supplier for United GPRO Solution:
Promise:
BWIN
carry the principal of satisfying the needs of consumers , long term the pure spare parts technical advice supervising installment and Commissioning transport gensets and training operator. After receive the feedback of quality problem, answer the consumer and supply problem solve program in 24 hours. Do our best to supply satisfied service.
System:
I Service before sale
Sales Engineer supply technical advice and auxiliary supervising, such as, choosing type auxiliary generator room design solve the problem come across when use the equipment.
II Service during sale
Supply customer production infomation and arrange shippment for customer.
III Service after sale
1 Supply Engine room design free of Charge
2 Supply installment and Commissioning Guide free of Charge
3 Train the operator and maintain persons free of charge;
4 Perform files for the consumer, in hot persuit of service regular inspection lifelong service.
5 supply the pure spare parts year in market price,
6 Supply technology assistance for your whole life.
Guarantee:
1 Guarantee Period: One years after the date of shipment from the manufacturer's plant or 1000 hours from the manufactured date,which comes first.
2 Repair or Replacement: GPRO Warrants to bear any repair or replacement charge under terms of warranty with the defects in design, material and workmanship.
3 Warranty limitation:
1) misuse& Lack of proper maintenance,
2) Not perform operation manual,
3) Generator modified without our Approval or Direction,
4) non-use Genuine parts,
5) Wearing Parts( Engine air filter & Oil filter )
If have any questions, please contact us. Your inquiry would be appreciated.
