Prime 12kw 15kva Silent Generator Set Three Phase Water Cooling Diesel Generator

1 sets
MOQ
negotiation
Price
Prime 12kw 15kva Silent Generator Set Three Phase Water Cooling Diesel Generator
Features Gallery Product Description Request A Quote
Features
Specifications
Cooling System: Water Cooled
Fuel Tank: 8 Hours Running
Speed Govern: Electronic
Speed: 1500rpm
Conditions Of Use: Land Use
ATS: Optional
High Light:

power generating set

,

silent diesel generators

Basic Infomation
Place of Origin: China, Wuxi
Brand Name: GPRO
Certification: CE, ISO
Model Number: GP17FWS
Payment & Shipping Terms
Packaging Details: ply wooden case, plastic
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 400 sets
Product Description

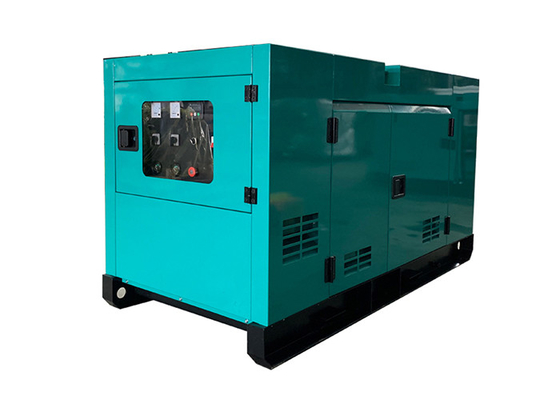

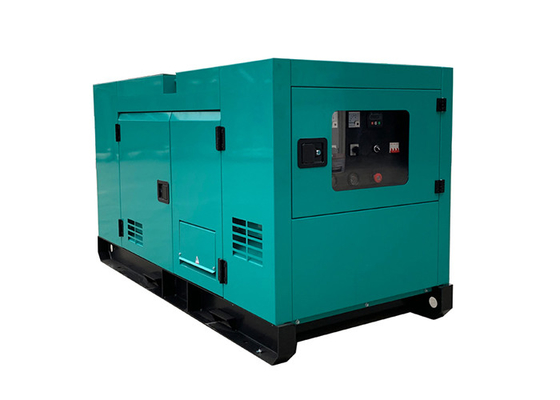

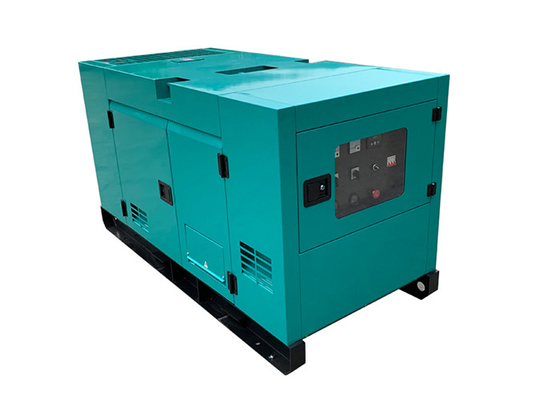

Prime 12kw 15kva silent three phase water cooling diesel generator

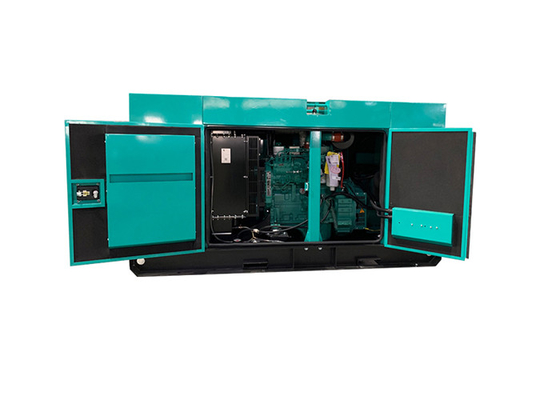

Generator soundproof/Silent and canopy

1) Excellent ventilation

2) Black finish stainless steel locks and hinges

3) Zinc plated or stainless steel fasteners

4) Body made from steel components treated with polyester powder coating

5) Two large doors on either side

6) Radiator fill access plate

7) Fully guarded cooling fan and battery charging alternator

8) Fuel fill and battery access via lockable access doors

9) Emergency stop button on canopy exterior

10) Lube oil drain and radiator drain to exterior

11) Control panel viewing window

12) Lifting points on base frame



Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Genset Spes:

1. SPECIFICATIONS OF GEN-SET
1.1 Set Model GP17FWS
1.2 Prime at 50HZ, 40℃ ambient 12KW 15KVA
1.3 Standby at 50HZ, 40℃ ambient 13.2KW 16.5KVA
1.4 Rated Gen-set output 230/400V 50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 2000×930×1100MM
1.7 Weight 800KGS
1.8 Noise level at 7 meter 66dba
1.9 Fuel consumption 100% prime load 3.3
1.10 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.11 Control system (Optional) Basic control panel or Advanced control panel with automatically start-up function and other function.
2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand FAWDE
2.2 Engine Model 4DW81-23D
2.3 Governor/Class Machanical or Electronic
2.4 Cylinder NO. 4
2.5 Engine build Line
2.6 Emission compliant Stage II
2.7 start-up method 12V, electric
2.8 Air intake type Natural
2.9 Cooling mode Water Cooling
2.10 Bore and stroke 85×100 mm
2.11 Compression ratio 17:01
2.12 Displacement 2.27
2.13 Engine Prime Power at 1500rpm 17KWm
2.14 Engine Standby Power at 1500rpm 19KWm
2.15 Lubrication oil capacity 7.8L
2.16 Oil consumption 0.05
2.17 Dry weight of base 220Kg
2.18 Dry weight of Gen Pac 240Kg
2.19 Overall dimension(G.P) 920×610×760(mm)
2.2 Overall dimension(base) 750×555×680(mm)
2.21 27℃ air consumption ( m³/ min) 1.4
2.22 Fuel type #0 Diesel (Natural temperature)
2.23 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.24 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model G164D
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 23A
3.12 Efficiency 81.70%
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1,NEMA1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 99kg



Company Details:



GPRO is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:

1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

2.Guarantee
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.

Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
