100kva 80kw Soundproof Diesel Generator Set Electric 1500 RPM Rated Speed

1 set
MOQ
Negotiation
Price
100kva 80kw Soundproof Diesel Generator Set Electric 1500 RPM Rated Speed
Features Gallery Product Description Request A Quote
Features
Specifications
Power(Prime/Standby): 100KVA / 80KW
Frequency: 50HZ / 60HZ
Current: 200A
Voltage: 220/380V
Engine: Cummins / 6BT5.9-G2
Controller: Smartgen / DeepSea
MCCB: Delixi /ABB
Sound Level/db: 78dB 7 Meter
Warranty: 1 Year Or 1000 Hours
Alternator: Original Stamford
High Light:

power generating set

,

silent diesel generators

Basic Infomation
Place of Origin: WUXI,China
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: GP110DCS
Payment & Shipping Terms
Packaging Details: poly wooden case
Delivery Time: 25 days
Supply Ability: 500 sets / Month
Product Description

100kva 80kw Soundproof Diesel Generator Set Electric 1500 RPM Rated Speed
SPECIFICATION:

1. SPECIFICATIONS OF GEN-SET
1.1Set ModelGP110DCS
1.2Prime at 50HZ, 40℃ ambient80kW 100KVA
1.3Standby at 50HZ, 40℃ ambient88kW 110KVA
1.4Rated Gen-set output230/400V  50Hz
1.5Rated Relative humidity≤ 60 %
1.6Dimension (L×W×H)2270×1000×1480mm
1.7Weight1500kg
1.8Fuel consumption 100% prime load26L/h
1.9Total heat radiated to ambient19KW
1.10Structure of Gen-set

The Gen-set adopt integrative structure,
engine is fix on high strength steel basic frame,
anti vibration instrument between the
engine and basic frame, cooling fan
have protecting cap, control cabinet
and circuit breaker installed on Gen-set.

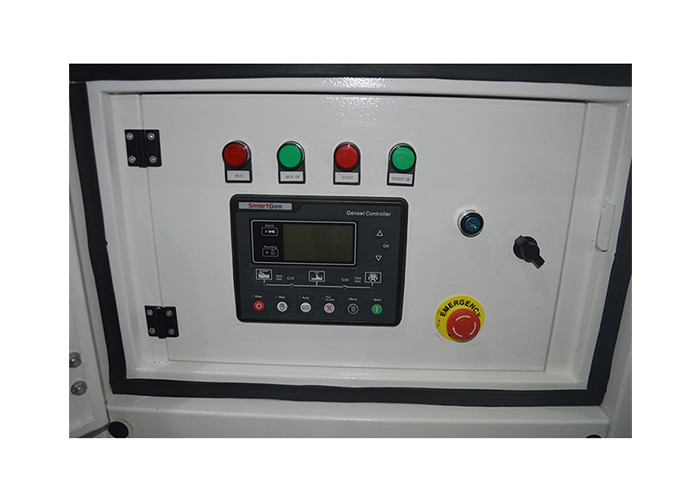

1.11Control system (Optional)

Basic control panel or Advanced
control panel  with automatically
start-up function and other function.

2. SPECIFICATIONS OF ENGINE
2.1Engine BrandCummins
2.2Engine Model6BT5.9- G2
2.3Governor/ClassElectrical
2.4Cylinder NO.6
2.5Engine buildLine
2.6Fuel spray patternPT direct injection
2.7start-up method24V, electric
2.8AspirationTurbocharged/Aftercooled
2.9Cooling modeRadiator cooled (enclose water)
2.10Bore and stroke102×120 mm
2.11Compression ratio17.5:1
2.12Displacement5.9 L
2.13Engine Prime Power at 1500rpm110KWm
2.14Engine Standby Power at 1500rpm120KWm
2.15Battery capacity100A/hr
2.16Starting/Min temperature4℃
2.17Lubrication oil capacity16L
2.18Coolant  capacity  -  radiator  and engine (40℃)28L
2.19Exhaust temp - full load prime553℃
2.20Exhaust gas flow - full load prime1500m 3/h
2.21Exhaust gas back pressure max76mmHg
2.22Air flow - radiator (40℃  ambient)2.3 m  3/s
2.23Pusher fan head (duct allowance) 40℃10mmH 2O
2.24Air intake - engine - full load prime248m 3/h
2.25Standard Air intake temp25℃
2.26Fuel type#0 Diesel (Natural temperature)
2.27Filter system

Adopt  whole  changeable  lubricating
oil, fuel    filter and air filter

2.28Exhaust system

Adopt  industrial  high  efficiency  muffler
and ripple pipe

3. SPECIFICATIONS OF ALTENATOR
3.1Alternator ModelStamford/UCI274C
3.2Alternator TypeA.C. Synchronous
3.3Rated Voltage230/400V
3.4Rated Frequency50HZ
3.5Rated speed1500 RPM
3.6Voltage regulation modeAuto
3.7Alternator voltage regulation±0.5%
3.8Exciting modeBrushless self exciting
3.9Power factor0.8 (lagging)
3.10Phase & wires3 phase 12 wires
3.11Rated currency173.2A
3.12Efficiency0.906
3.13Insulation classH
3.14Protection classIP23


Description:


1. Original Cummins engine

2. Alternator: Italy Mecc alte / Stamford

3. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing.

4. ATS cabinet

5. Type: Silent type, weather proof, Trailer type

Applications:

1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake

Competitive Advantage:


1. User friendly with low emissions

2. More power reserve, better performance

3. Fast delivery. Big quantity of Engines in stock.

4. Good parts commonality

5. Original EURO ITALY engine , good quality , good price.

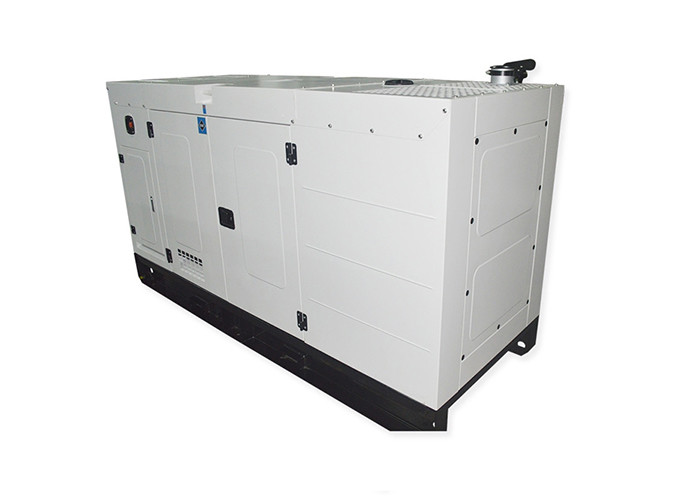

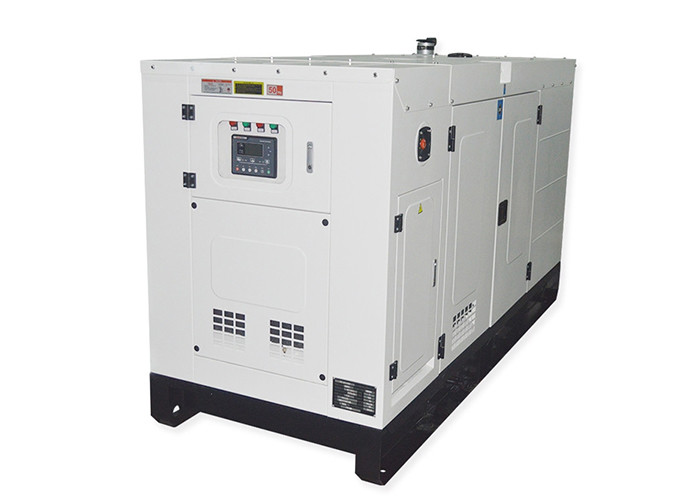

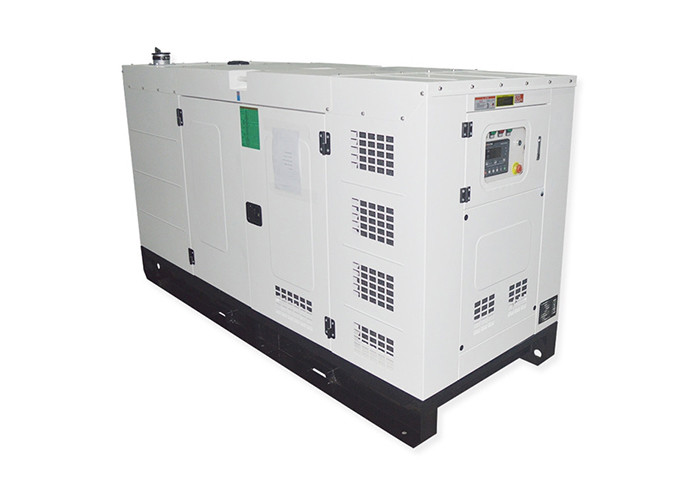

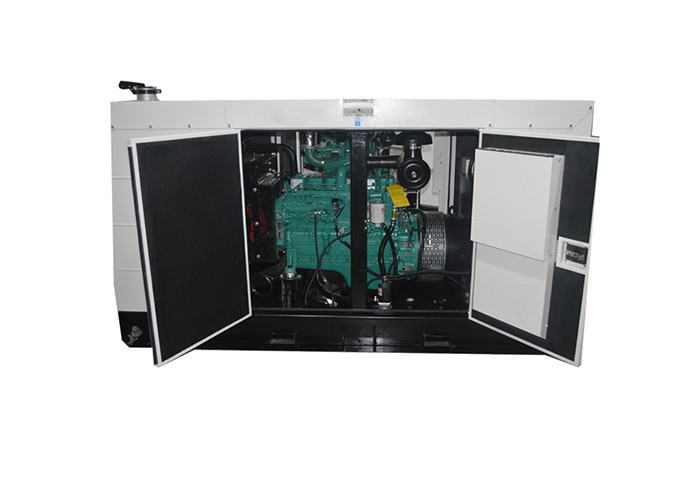

Mass generators photos:



100kva 80kw Soundproof Diesel Generator Set Electric 1500 RPM Rated Speed 0

100kva 80kw Soundproof Diesel Generator Set Electric 1500 RPM Rated Speed 1
