Home /Products/Silent Generator Set/Power 40kva Silent Type 3 Phase Ac Diesel Generator 32kw FAWDE Engine

Power 40kva Silent Type 3 Phase Ac Diesel Generator 32kw FAWDE Engine

1 set
MOQ
TBD
Price
Power 40kva Silent Type 3 Phase Ac Diesel Generator 32kw FAWDE Engine
Features Gallery Product Description Request A Quote
Features
Specifications
Power Rate: 32KW
Frequency: 50HZ／60HZ
Engine Brand: FAWDE
Voltage: 230／400
Alternator: Chinese Local Brand
Warranty: 1 Year Or 1000 Hours
Protection Class: IP23
Cooling System: Water Cooling
Type: Silent
Construction Type: SAE Disc-coupling
High Light:

power generating set

,

silent diesel generators
Basic Infomation
Place of Origin: WUXI
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: GP44FWS
Payment & Shipping Terms
Packaging Details: poly wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets / Month
Product Description


Power 40kva Silent type 3 phase ac diesel generator 32kw



Product Description
Specification of PowerFriend Genset
Genset Genset Model GP44FWS
Prime at 50HZ, 40℃ ambient 32KW 40KVA
Standby at 50HZ, 40℃ ambient 35KW 44KVA
Rated Gen-set output 230/400V 50Hz
Dimension (L×W×H)mm Open: 1800*800*1150,
Silent: 2320*1060*1150
Weight Open: 800kg, Silent: 1200kg
Fuel consumption 100% prime load 8.3L/H
Rated currency 54A
Circuit Breaker Delixi/CHINT or Customized
Base fuel tank At least for 8-hour contunuous running
Controller Deepsea/ ComAp/ Smartgen
Noise Level/dBA @7m(Silent type only) 65

Engine Engine Brand FAWDE
Engine Model 4DX22-50D
Governor/Class Mechanical or Electronic
Cylinder NO. & Build 4
Cooling mode Line
Bore and stroke 102×118 mm
Compression ratio 17:01
Displacement 3.86
Engine Prime Power at 1500rpm 39KWm
Engine Standby Power at 1500rpm 43KWm

Alternator Alternator Brand Stamford type, brushless, 100% copper
Insulation class H
Protection class IP23

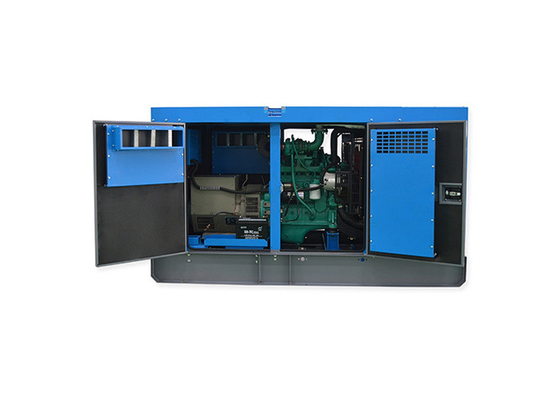

Power 40kva Silent Type 3 Phase Ac Diesel Generator 32kw FAWDE Engine 0

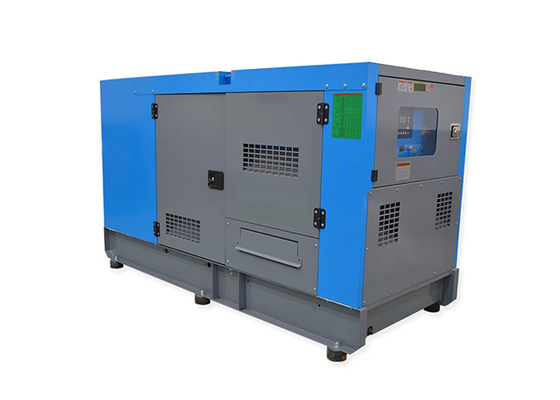

Power 40kva Silent Type 3 Phase Ac Diesel Generator 32kw FAWDE Engine 1
