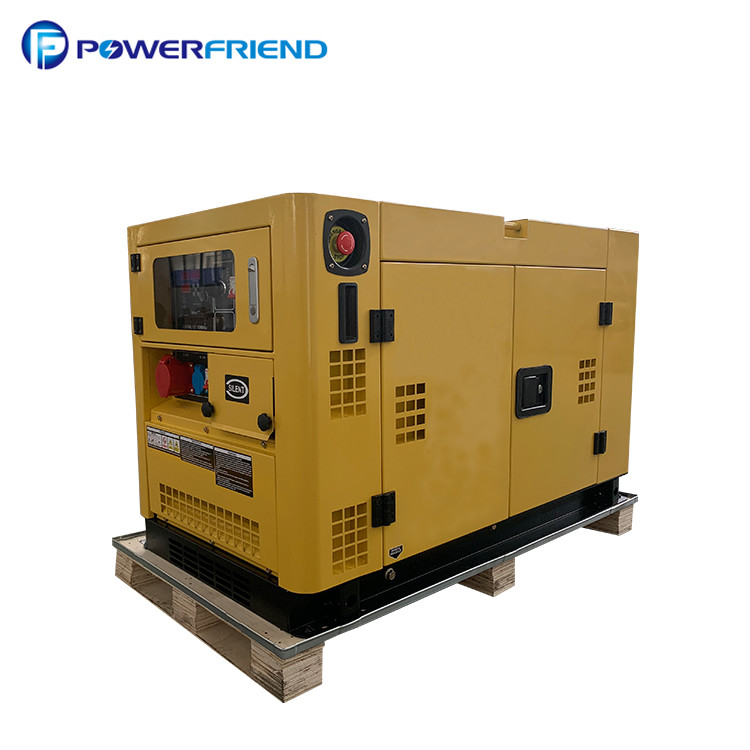

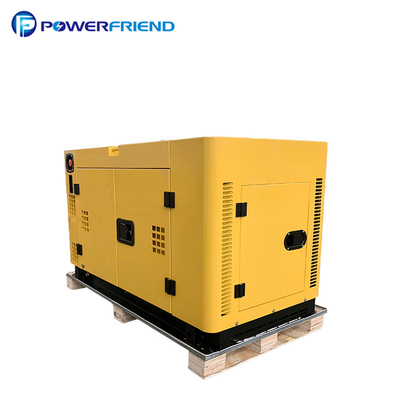

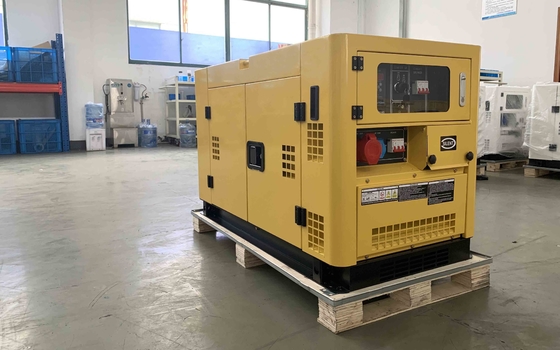

12Kw Diesel Genset 2 Cylinder AC Three Phase Super SilentDiesel Generator

Place of Origin China(Mainland)
Brand Name PowerFriend
Certification ISO9001/ISO14001
Model Number PD15ST3
Minimum Order Quantity 1 set
Price negotiation
Packaging Details poly wooden case or plastic poly
Delivery Time 15 working days
Payment Terms L/C, T/T
Supply Ability 500 sets / Month
Product Details
Product Name Diesel Generator Prime Power 11/14 12/15 (Kw/Kva)
Standby Power 12/15 12.5/16 (Kw/Kva) Genset Model PD15ST3
Engine Model 292F Running Hours 8 Hours
Warranty 1 Year Or 1000 Hours Certificates CE, ISO9001
High Light

silent portable generator

,

small diesel generators

Leave a Message
Product Description

12Kw Diesel Genset 2 Cylinder AC Three Phase Super SilentDiesel Generator

Product describition

  Model PD15ST3 (Silent Type)
Genset Rated frequency (Hz) 50        60
Rated voltage (v) 400      416
Rated power (Kw/Kva) 11/14   12/15
Max power (Kw/Kva) 12/15   12.5/16
Rated current (A) 16.7      18.2
Phase number Three phase
Power factor 0.8
Sockets + Teminal 1 x 32A
Battery (Ah) 36.0
Fuel tank capacity (L) 28
Running Time (H) 8
Noise level dB@7m 72
Overall dimension (L*W*H)MM 1300×700×870
N.W/G.W(kg) 320/ 345
Engine Engine Type Diesel
Engine Model 292F
Rated output(kw/rpm) 14/3000   15/3600
Structure type 2-cylinder, in lined, 4-stroke, air-cooled
Staring system Electric Start
Fuel consumption (L/h) ≤4.1
Displacement (ml) 997
Oil Capacity (L) 3
Alternator 100% copper, brush type, self-excitation, AVR

12Kw Diesel Genset 2 Cylinder AC Three Phase Super SilentDiesel Generator 0

Why choose us:





Description:

Diesel engine is an internal -combustion engine, in which air is compressed to a sufficiently high temperature to ignite diesel fuel injected into the combustion chamber. It can be used to power diesel generator , water pump, tiller etc. Since the future emission standard demands, we are always improving the fuel and engine structures to reduce the impact on environment. "Green Engine" is our target. We always pay more attention to climate protection and environmental.





Package & Payment & Delivery Date & Warranty

Package: Plastic Package.

Payment: By 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 %L/C at sight.

Delivery: 25 days after we get the down payment.

Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of12 months from date of despatch or 1000 running hours from date of commissioning whicheverdate occurs the sooner.

12Kw Diesel Genset 2 Cylinder AC Three Phase Super SilentDiesel Generator 1





FAQ :

Q1: What is your warranty period?

A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).

Q2: Does your generator have global warranty?

A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details

Q3: What is your payment terms?

A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.

L/C Irrevocable L/C at sight.

Q4: What is your delivery time?

A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.

Q5: Can the generators be customized?

A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.

Q6: Can you use our logo?

6: Yes. For mass orders, we can use customer's logo instead of ours.
