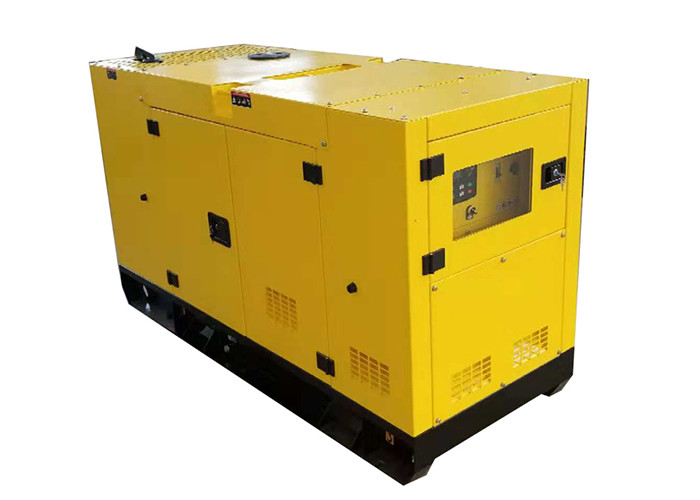

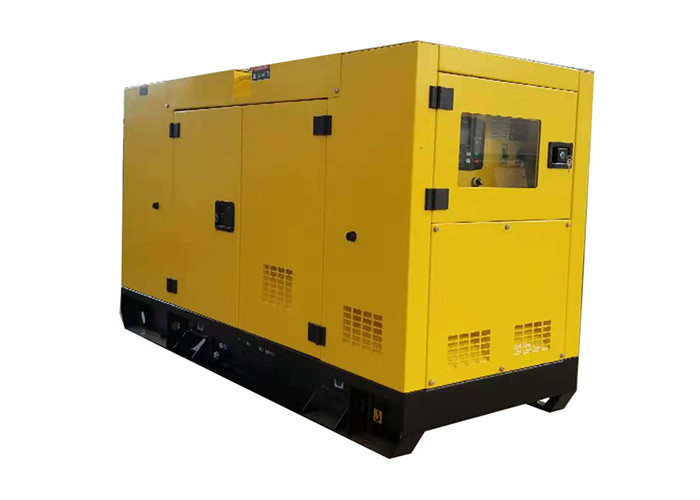

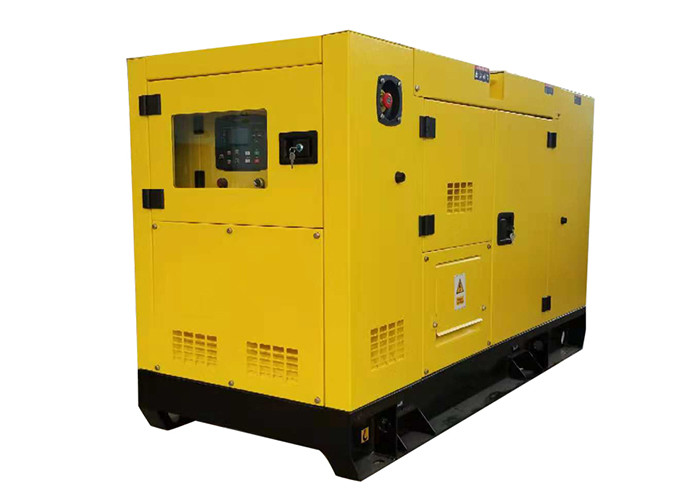

Silent Generator Diesel 40KW 50KVA Power FAWDE Industrial Generator
| SPECIFICATIONS |
| |
|
|
| 1. SPECIFICATIONS OF GEN-SET |
| 1.1 |
Set Model |
PF-FW55 |
| 1.2 |
Prime at 50HZ, 40℃ ambient |
40KW 50KVA |
| 1.3 |
Standby at 50HZ, 40℃ ambient |
44KW 55KVA |
| 1.4 |
Rated Gen-set output |
230/400V 50Hz |
| 1.5 |
Rated Relative humidity |
≤ 60 % |
| 1.6 |
Dimension (L×W×H) |
Open: 1800*800*1150,
Silent: 2450*1060*1350 |
| 1.7 |
Weight |
Open: 900kg, Silent: 1300kg |
| 1.8 |
Fuel consumption 100% prime load |
11L/H |
| 1.9 |
Structure of Gen-set |
The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 2 |
Control system (Optional) |
Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE |
| 2.1 |
Engine Brand |
FAWDE |
| 2.2 |
Engine Model |
4DX22-65D |
| 2.3 |
Governor/Class |
Mechanical or Electronic |
| 2.4 |
Cylinder NO. |
4 |
| 2.5 |
Engine build |
Line |
| 2.6 |
Emission compliant |
Stage II |
| 2.7 |
start-up method |
24V, electric |
| 2.8 |
Air intake type |
Turbo&Intercooling |
| 2.9 |
Cooling mode |
Water Cooling |
| 2.10 |
Bore and stroke |
102×118 mm |
| 2.11 |
Compression ratio |
17:01 |
| 2.12 |
Displacement |
3.86 |
| 2.13 |
Engine Prime Power at 1500rpm |
48KWm |
| 2.14 |
Engine Standby Power at 1500rpm |
53KWm |
| 2.15 |
Lubrication oil capacity |
13L |
| 2.16 |
Oil consumption |
0.05 |
| 2.17 |
Dry weight of base |
380Kg |
| 2.18 |
Dry weight of Gen Pac |
405Kg |
| 2.19 |
Overall dimension(G.P) |
1480×705×850(mm) |
| 2.2 |
Overall dimension(base) |
810×700×850(mm) |
| 2.21 |
27℃ air consumption ( m³/ min) |
3.9 |
| 2.22 |
Fuel type |
#0 Diesel (Natural temperature) |
| 2.23 |
Filter system |
Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.24 |
Exhaust system |
Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTERNATOR |
| 3.1 |
Alternator Model |
Stamford/UCI244D |
| 3.2 |
Alternator Type |
A.C. Synchronous |
| 3.3 |
Rated Voltage |
230/400V |
| 3.4 |
Rated Frequency |
50HZ |
| 3.5 |
Rated speed |
1500 RPM |
| 3.6 |
Voltage regulation mode |
Auto |
| 3.7 |
Alternator voltage regulation |
±0.5％ |
| 3.8 |
Exciting mode |
Brushless self exciting |
| 3.9 |
Power factor |
0.8 (lagging) |
| 3.10 |
Phase & wires |
3 phase 12 wires |
| 3.11 |
Rated currency |
72.2A |
| 3.12 |
Efficiency |
88.20% |
| 3.13 |
Insulation class |
H |
| 3.14 |
Protection class |
IP23 |
| 3.15 |
Single load step to NFPA110 |
100% |
| 3.16 |
Standards |
IEC34-1,NEMA1 |
| 3.17 |
Max. Ambient Temperature |
40℃ |
| 3.18 |
Min. Ambient Temperature |
- 15℃ |
| 3.19 |
Max. altitude |
1000m |
| 3.20 |
Weight |
250kg |
Why Choose Us
Wuxi Gpro Power Solution Co., Ltd is focus on power generator products and service in China.
Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients. We supply Generator Sets from 2kva to 3000kva.
Our Goal: Satisfying customers by our good quality and strict business management; Increasing the occupancy of the market and competitive strength; further expanding the global market.
We are your faithful GPRO!
Company advantages:
- We are a powerful and unity sales team:
we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.
90% of our sales team members are with more than 5 years of experience in the generator field.
- We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.
- We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.
- With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card.
.
Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
Advantage:
1.Industry and Trade Corporation, Professional team,Quality assurance
2.Strong R&D management, OEM/ ODM service available.
3.Factory expoert directly, fast delivery.
Package & Delivery
Delivery Time: 30 days after deposit, By Sea
Package: nude packing or plywooden case
Sales Promises:
1.PowerFriend Engineering provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment.
2.Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first.
3. Service and parts are available from XIAMEN AOSIF Engineering Ltd. or distributors in your location.
4.All the products from Xiamen AOSIF Engineering Ltd. is CE marked
FAQ
Q1: How is your Package & Payment & Delivery Date & Warranty?
A.1) Package: Plastic film (free of charge) or wooden case (add USD200 for wooden)
A.2) Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C at sight.
A.3) Delivery: 7-25 days after we get the down payment.
A.4) Warranty: Guarantee for one year or 1000 running hours (whichever come first shall apply) from installed date.During the guarantee period. such as Cummins or Perkins generators. they are international brands and the after-sale service is worldwide. you can contact your country's after-sale or contact us for repairment. when replacing spare parts, please kindly take some pictures to describe the problems. we will solve it a.s.a.p.
Q2: Any advantages about your company?
Answers: LM Brand Diesel Generators with following advantages:
----MOQ is 1 set and we could finis more than 100sets/month
---- Middle-high Positioning;
---- 7-25days Lead-time;
---- Got the ISO and CE certificate; OEM Certifications
--- High quality with the best price can help you get more benefit and beat your competitors;
---- Powered by Cummins, Perkins, Detuz etc. famous engine brands optional;
---- Open, Soundproof Canopy, Container, Trailer etc. for your choose.

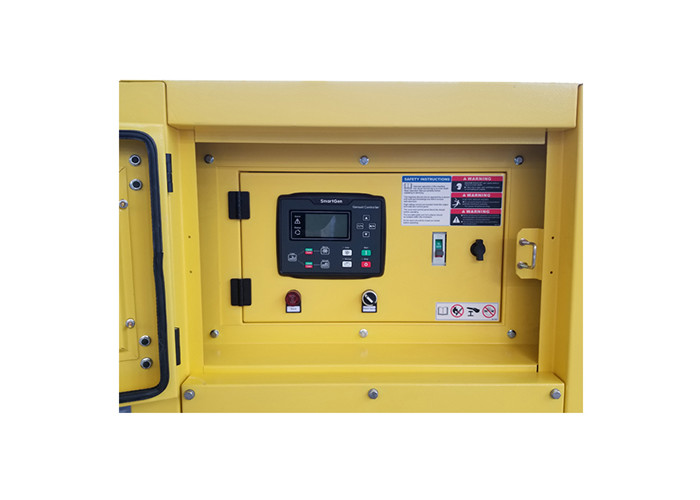

Q3: Any advantage of Digital Control Panel?
1) Controller Brand: Smartgen, Deepsea,ComAp
2) Control Panel: English interface,LED screen and touch buttons.
3) Main Functions:
1- Display loading power, voltage, current, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.
