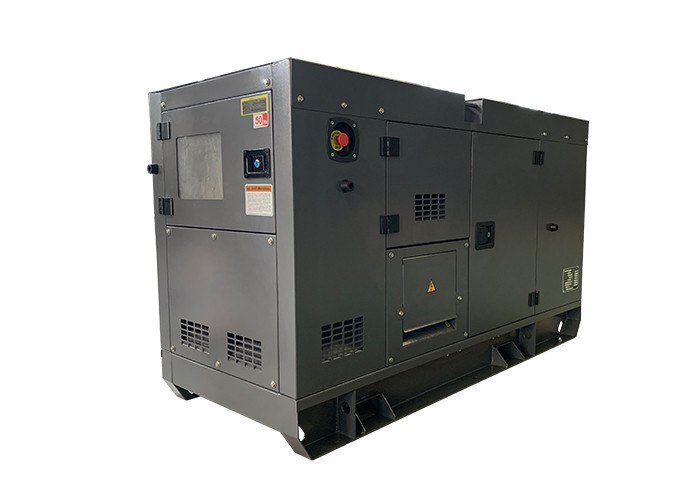

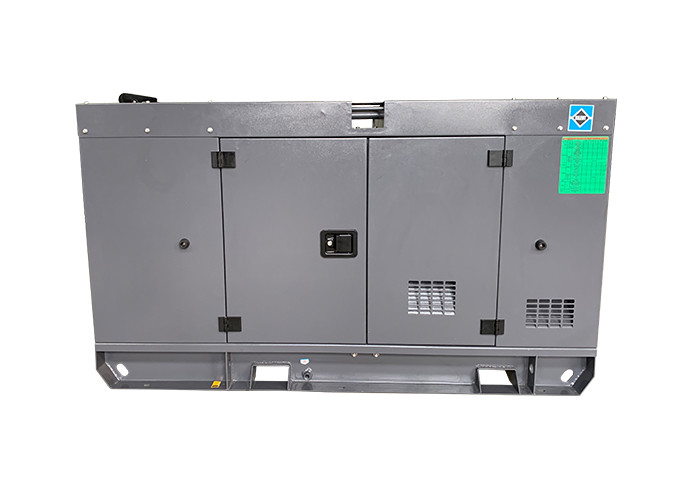

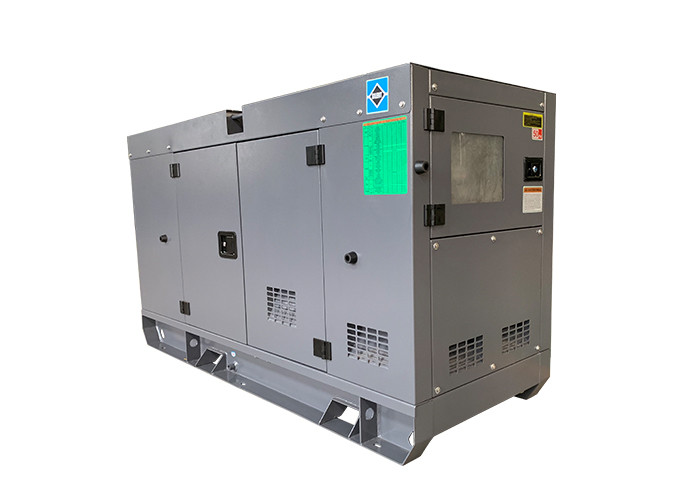

Brushless Self - Excited Cummins Silent Diesel Generators 48Kw 60Kva AC Three Phase

1 set
MOQ
US $5483 - 8812 / Set
Price
Brushless Self - Excited Cummins Silent Diesel Generators 48Kw 60Kva AC Three Phase
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Brand: Cummins
Prime Power: 48KW 60KVA
Genset Model: GP66DCS
Standby Power: 53KW 66KVA
Engine Model: 4BTA3.9-G2
Rated Current(A): 86.6 (A)
Engine Features: 4-cylinder,4 Stroke,water Cooled ,Turbo
Running Hours: 8 Hours
Warranty: 1 Year Or 1000 Hours
Certificates: CE, ISO9001
High Light:

cummins power generator

,

cummins diesel genset

Basic Infomation
Place of Origin: China(Mainland)
Brand Name: GPRO
Certification: ISO9001/ CE
Model Number: GP66DCS
Payment & Shipping Terms
Packaging Details: poly wooden case or plastic poly
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: negotiation
Product Description

Brushless Self - Excited Cummins Silent Diesel Generators 48Kw 60Kva AC Three Phase



Genset Model GP66DCS
Prime Power 48KW/60KVA
Standby Power 53KW/66KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 86.6A
Genset Structure SILENT
Dimension 2650×1020×1480mm
Net Weight 1400KG
Noise level 70dB at 7 meters
Fuel Tank Capacity 140L
Engine Model 4BTA3.9-G2
Engine Features 4-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 102mm × 120mm
Displacement 3.9L
12-hour Power(kw) 50KW/1500
Fuel Consumption L/H 11L/H
Compression Ratio 16.5:1
Governor type Electronic
Alternator Model STAMFORD /UCI224E
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel Deepsea / Harsen / Smartgen 6110
  Smartgen 6110 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator


Brushless Self - Excited Cummins Silent Diesel Generators 48Kw 60Kva AC Three Phase 0

Description:



1. Diesel Cummins engine

2. Alternator: Italy Mecc alte / Stamford

3. Controller: Deepsea or Smartgen with or without AMF.

4. Options: remote controller, synchronizing.

5. ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.

6. Type: Silent type, weather proof, Trailer type

Applications:

1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake

Competitive Advantage:



1. User friendly with low emissions

2. More power reserve, better performance

3. Fast delivery. Big quantity of Engines in stock.

4. Good parts commonality

5. Original FAW engine , good quality , good price.



Company Details:



Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:

1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

2.Guarantee
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.



If have any questions, please contact us. Your inquiry would be appreciated.

Brushless Self - Excited Cummins Silent Diesel Generators 48Kw 60Kva AC Three Phase 1

Brushless Self - Excited Cummins Silent Diesel Generators 48Kw 60Kva AC Three Phase 2
