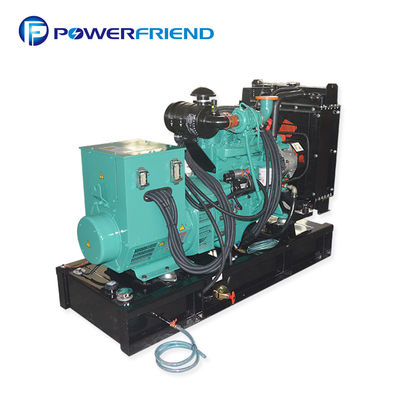

Electric Start 90KW 113KVA Low Noise Diesel Generator Three Phase 6 Cylinder

1 set
MOQ
US $7749-$12170 / Set
Price
Electric Start 90KW 113KVA Low Noise Diesel Generator Three Phase 6 Cylinder
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Brand: Cummins
Prime Power: 90KW 113KVA
Genset Model: PF-DC125S
Standby Power: 100KW 125KVA
Engine Model: 6BTA5.9-G2
Rated Current(A): 163 (A)
Warranty: 1 Year Or 1000 Hours
Certificates: CE, ISO9001
High Light:

industrial diesel engines

,

air cooled diesel engine

Basic Infomation
Place of Origin: China(Mainland)
Brand Name: PowerFriend
Certification: ISO9001/ CE
Model Number: PF-DC125S
Payment & Shipping Terms
Packaging Details: poly wooden case or plastic poly
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 500 sets / Month
Product Description

Electric Start 90KW 113KVA Three Phase 6 Cylinder Water Cooled Silent Diesel Generator



Product describition

Genset Model PF-DC125S
Prime Power 90KW/113KVA
Standby Power 100KW/125KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 163A
Genset Structure SILENT
Dimension 2970×1120×1580mm
Net Weight 1800KG
Noise level 72dB at 7 meters
Fuel Tank Capacity 240L
Engine Model 6BTA5.9-G2
Engine Features 6-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 102mm × 120mm
Displacement 5.9L
12-hour Power(kw) 106KW/1500
Fuel Consumption L/H 23.8L/H
Compression Ratio 16.5:1
Governor type ELECTIC
Alternator Model STAMFORD /UCI274D
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel Deepsea/ ComAp/ Smartgen
Smartgen 6120   intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator

Electric Start 90KW 113KVA Low Noise Diesel Generator Three Phase 6 Cylinder 0

Electric Start 90KW 113KVA Low Noise Diesel Generator Three Phase 6 Cylinder 1

Safe and reliable electricity transmission network solutions !

  •

Why choose us:



Competitive Advantage:

1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base–frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.



Description:

1.PowerFriend is devoted to the R&D and manufacturing of  diesel generator sets since 2010.

2.The marketing center is located in Wuxi Steel Union governor's buildinghas .

3.PowerFriend is maintaining long term strategic friendship cooperation with domestic and abroad famous manufactures of Cummins, Perkins,  Doosan, SDEC, Mitsubishi(SME), Deutz, Wuxi Wandi, Leroysomer, Stamford, and Marathon etc.

Electric Start 90KW 113KVA Low Noise Diesel Generator Three Phase 6 Cylinder 2

Package &  Delivery & Warrant

Package: Plastic Package.

Payment: By 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 %L/C at sight.

Delivery: 25 days after we get the down payment.

Warrant:Warraty period is one year or 1000 hours (depends on which occurs first ).

     If the failure is caused by turbine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable spare parts of genset caused by crew wearing parts, consumable parts for daily use, human error , negligence or failure of following the original maintenance manual provisions, etc.



We deliver electricity to almost four million users!

IF you have any queation, please feel free to contact with us!We will deal with your problem in professional way.
