40Kw 55Kva 3 Phase Cummins Dg Set Water Cooled Silent Diesel Generator

1 set
MOQ
US $5460-$9500 / Set
Price
40Kw 55Kva 3 Phase Cummins Dg Set Water Cooled Silent Diesel Generator
Features Gallery Product Description Request A Quote
Features
Specifications
Engine Brand: Cummins
Prime Power: 40KW 50KVA
Genset Model: GP55DCS
Standby Power: 44KW 55KVA
Engine Model: 4BTA3.9-G2
Rated Current(A): 72 (A)
Warranty: 1 Year Or 1000 Hours
Certificates: CE, ISO9001
High Light:

cummins power generator

,

cummins diesel genset

Basic Infomation
Place of Origin: China(Mainland)
Brand Name: GPRO
Certification: ISO9001/ CE
Model Number: GP55DCS
Payment & Shipping Terms
Packaging Details: poly wooden case or plastic poly
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 500 sets / Month
Product Description

40Kw 55Kva 3 Phase Cummins Dg Set Water Cooled Silent Diesel Generator



Genset Model GP55DCS
Prime Power 40KW/50KVA
Standby Power 44KW/55KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 72A
Genset Structure SILENT
Dimension 2650×1020×1480mm
Net Weight 1350KG
Noise level 70dB at 7 meters
Fuel Tank Capacity 140L
Engine Model 4BTA3.9-G2
Engine Features 4-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 102mm × 120mm
Displacement 3.9L
12-hour Power(kw) 50KW/1500
Fuel Consumption L/H 11L/H
Compression Ratio 16.5:1
Governor type Electronic
Alternator Model STAMFORD /UCI224D
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel Deepsea/ ComAp/ Smartgen
Smartgen 6110 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator



40Kw 55Kva 3 Phase Cummins Dg Set Water Cooled Silent Diesel Generator 0

There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.



ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.

Standard Supply Scope:


Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card



Optional supply scope:


1.ATS

2. SynchronizationSystem

3. External daily fuel tank

4. Silent Canopy

5. Trailer

6. Auto Fuel Pump

7. Fuel and Water Separator

8. Lub Oil Heater

9. Coolant Heater

10. Fuel Drain Pump



Advantages:



. We are a powerful and unity sales team:

. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

90% of our sales team members are with more than 5 years of experience in the generator field.

. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.

. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.

. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.



If have any questions, please contact us. Your inquiry would be appreciated.

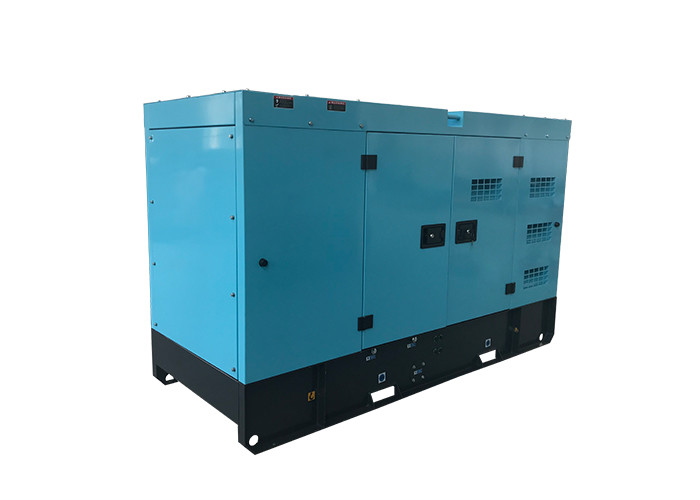

40Kw 55Kva 3 Phase Cummins Dg Set Water Cooled Silent Diesel Generator 1

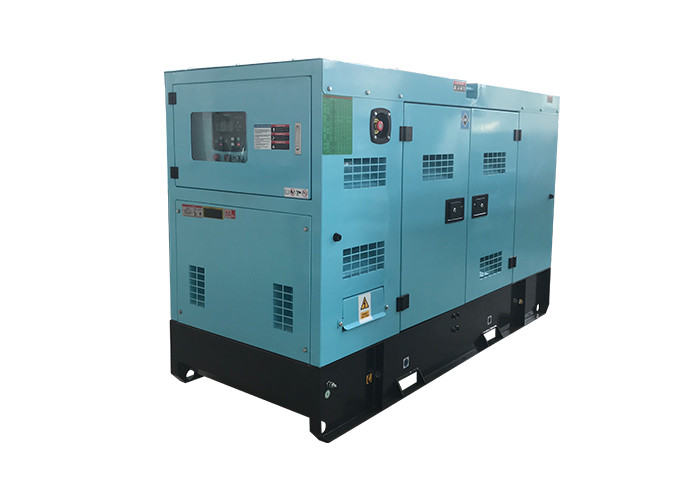

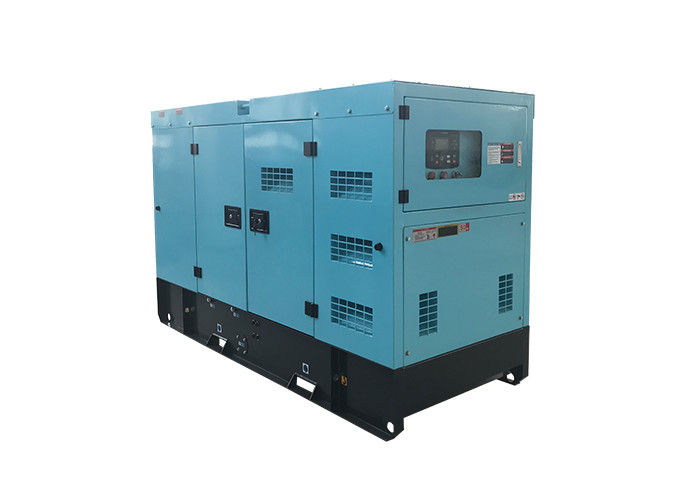

40Kw 55Kva 3 Phase Cummins Dg Set Water Cooled Silent Diesel Generator 2
