| Technical specification |
| Genset Model |
GP41DCS |
| Prime Power |
30KW/38KVA |
| Standby Power |
33KW/41KVA |
| Phase Number |
3 |
| Power Factor |
0.8 |
| Rated Voltage |
230/400V |
| Frequency |
50 HZ |
| Rated Current |
55A |
| Genset Structure |

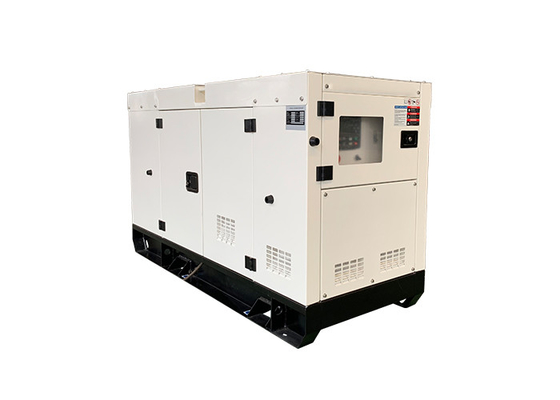

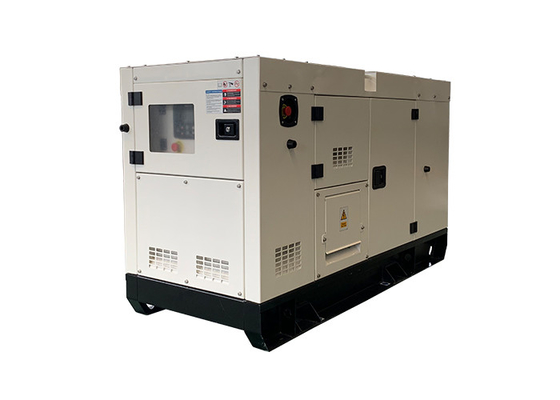

SILENT |
| Dimension |
2350×1000×1335mm |
| Net Weight |
1160KG |
| Noise level |
70dB at 7 meters |
| Fuel Tank Capacity |
120L |
| Engine Model |
4BT3.9-G1 |
| Engine Features |
4-cylinder,4 stroke,water cooled ,Turbo |
| Bore * Stroke |
102mm × 120mm |
| Displacement |
3.9L |
| 12-hour Power(kw) |
36KW/1500 |
| Fuel Consumption L/H |
6.7L/H |
| Compression Ratio |
16.5:1 |
| Governor type |
Mechanical |
| Alternator Model |
STAMFORD / PI144J |
| Excitation Mode |
brushless self-excited |
| Insulation Class |
H |
| Protection Class |
IP23 |
| Construction Type |
SAE Disc-coupling |
| Controler panel |
|
| Smartgen 6110 |
intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator |
There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.
ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS
2.SynchronizationSystem
3.External daily fuel tank
4.Silent Canopy
5.Trailer
6.Auto Fuel Pump
7.Fuel and Water Separator
8.Lub Oil Heater
9.Coolant Heater
10.Fuel Drain Pump
Advantages:
. We are a powerful and unity sales team:
. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.
90% of our sales team members are with more than 5 years of experience in the generator field.
. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.
. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.
. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
