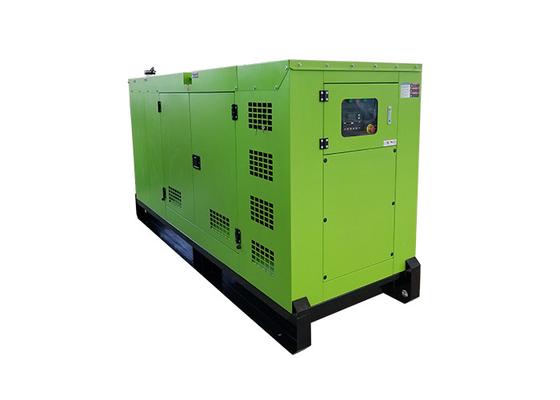

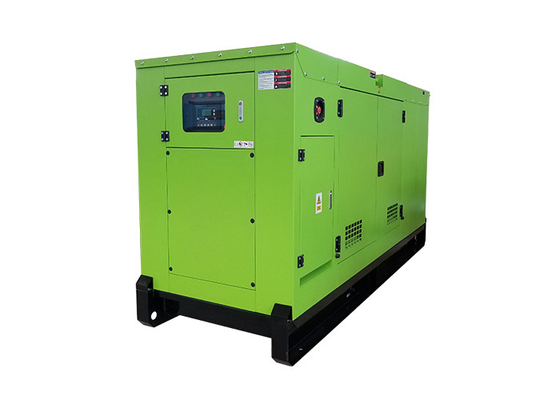

110KVA 88KW Cummins Generator Set , Silent Dg Set With Stamford Alternator

1 set
MOQ
negotiable
Price
110KVA 88KW Cummins Generator Set , Silent Dg Set With Stamford Alternator
Features Gallery Product Description Request A Quote
Features
Specifications
Prime Power(KVA/KW): 80KW 100KVA
Phase: Three
Standby Power: 88KW 110KVA
Frequency: 50HZ
Rated Voltage: 230/400V
Genset Structure: SILENT
Dimension: 2970×1120×1580mm
Noise Level: 72dB At 7 Meters
High Light:

cummins diesel genset

,

emergency diesel generator

Basic Infomation
Place of Origin: China (Mainland)
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: GP110DCS
Payment & Shipping Terms
Packaging Details: Ply wooden case or Nude packing
Delivery Time: 15days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per months
Product Description

110KVA 88KW Cummins Generator Set , Silent Dg Set With Stamford Alternator



Technical specification
Genset Model GP110DCS
Prime Power 80KW/100KVA
Standby Power 88KW/110KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 144A
Genset Structure SILENT
Dimension 2970×1120×1580mm
Net Weight 1750KG
Noise level 72dB at 7 meters
Fuel Tank Capacity 240L
Engine Model 6BT5.9-G1
Engine Features 6-cylinder,4 stroke,water cooled ,Turbo
Bore * Stroke 102mm × 120mm
Displacement 5.9L
12-hour Power(kw) 86KW/1500
Fuel Consumption L/H 21.2L/H
Compression Ratio 16.5:1
Governor type MECHANICAL
Alternator Model STAMFORD /UCI274C
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
Smartgen 6110

intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator



110KVA 88KW Cummins Generator Set , Silent Dg Set With Stamford Alternator 0

There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.



ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.

Standard Supply Scope:


Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card



Optional supply scope:


1.ATS

2. SynchronizationSystem

3. External daily fuel tank

4. Silent Canopy

5. Trailer

6. Auto Fuel Pump

7. Fuel and Water Separator

8. Lub Oil Heater

9. Coolant Heater

10. Fuel Drain Pump



Advantages:



. We are a powerful and unity sales team:

. we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

90% of our sales team members are with more than 5 years of experience in the generator field.

. We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.

. We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.

. With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.



If have any questions, please contact us. Your inquiry would be appreciated.

110KVA 88KW Cummins Generator Set , Silent Dg Set With Stamford Alternator 1
