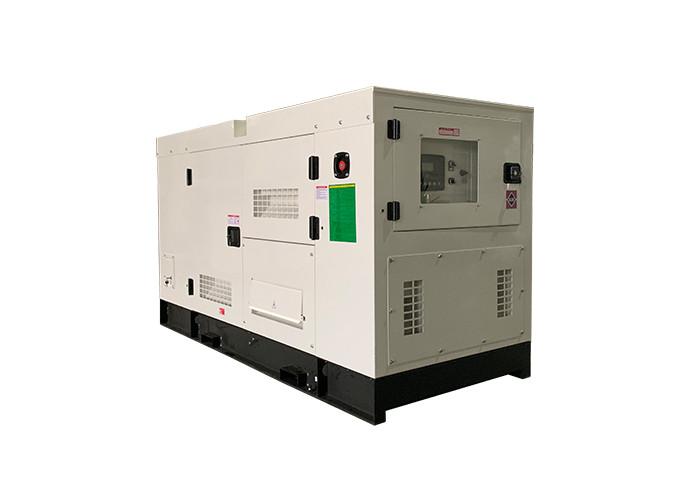

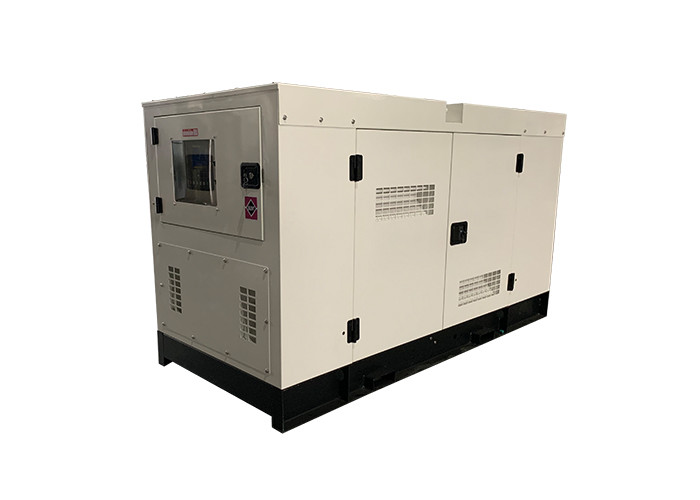

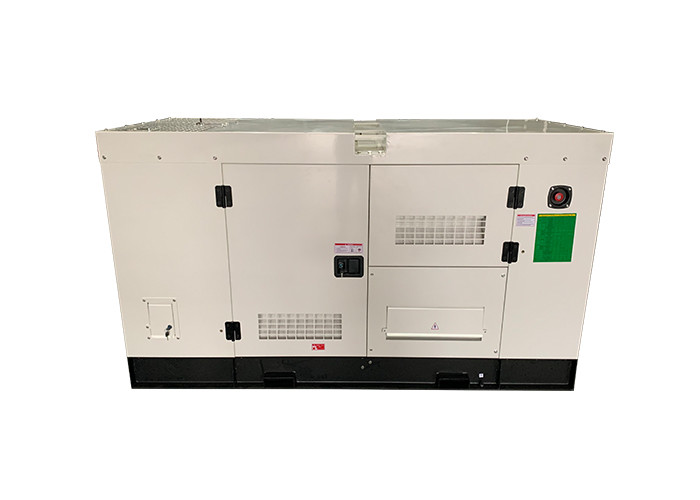

30KW 38KVA Cummins Diesel Generators Silent Power Generator 4 Cylinder

1 set
MOQ
negotiation
Price
30KW 38KVA Cummins Diesel Generators  Silent Power Generator 4 Cylinder
Features Gallery Product Description Request A Quote
Features
Specifications
Genset Model: GP41DCS
Engine Brand: Cummins
Engine Model: 4BT3.9-G1
Prime Power: 30KW 38KVA
Standby Power: 33KW 41KVA
Rated Current(A): 55 (A)
Certificates: CE, ISO9001
Warranty: 1 Year Or 1000 Hours
High Light:

cummins diesel genset

,

emergency diesel generator

Basic Infomation
Place of Origin: China(Mainland)
Brand Name: GPRO
Certification: ISO9001/ CE
Model Number: GP41DCS
Payment & Shipping Terms
Packaging Details: poly wooden case or plastic poly
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 500 sets / Month
Product Description

30KW 38KVA Cummins Diesel Generators Silent Power Generator 4 Cylinder



Genset Model GP41DCS
Prime Power 30KW/38KVA
Standby Power 33KW/41KVA
Phase Number 3
Power Factor 0.8
Rated Voltage 230/400V
Frequency 50 HZ
Rated Current 55A
Genset Structure SILENT
Dimension 2200×1000×1335mm
Net Weight 1080KG
Noise level 68dB at 7 meters
Fuel Tank Capacity 100L
Engine Model 4B3.9-G1
Engine Features 4-cylinder,4 stroke,water cooled ,natural intake
Bore * Stroke 102mm × 120mm
Displacement 3.9L
12-hour Power(kw) 24KW/1500
Fuel Consumption L/H 5.5L/H
Compression Ratio 16.5:1
Governor type Mechanical
Alternator Model STAMFORD / PI144E
Excitation Mode brushless self-excited
Insulation Class H
Protection Class IP23
Construction Type SAE Disc-coupling
Controler panel
DeepSea 7320 intelligent and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator



30KW 38KVA Cummins Diesel Generators  Silent Power Generator 4 Cylinder 0

ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional



Testing Items of GPRO Genset:
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.



Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!

30KW 38KVA Cummins Diesel Generators  Silent Power Generator 4 Cylinder 1

30KW 38KVA Cummins Diesel Generators  Silent Power Generator 4 Cylinder 2
