Cummins Engine Water Cooled Silent Generator Set 80kw 100kva 1000 Hours Warranty

Basic Information
Place of Origin: WUXI,China
Brand Name: POWER FRIEND
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: B-DC110S
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: poly wooden case
Delivery Time: 25 days
Supply Ability: 500 sets / Month
Contact Now

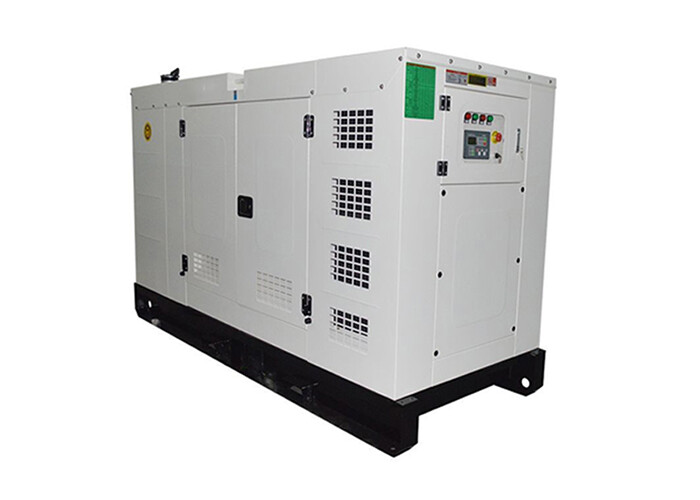

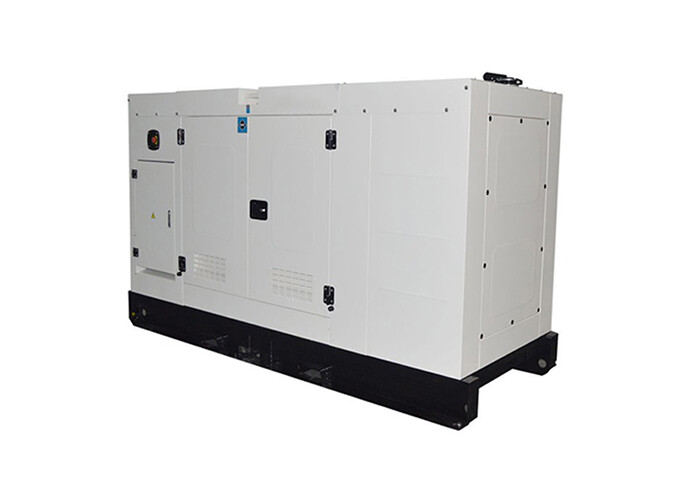

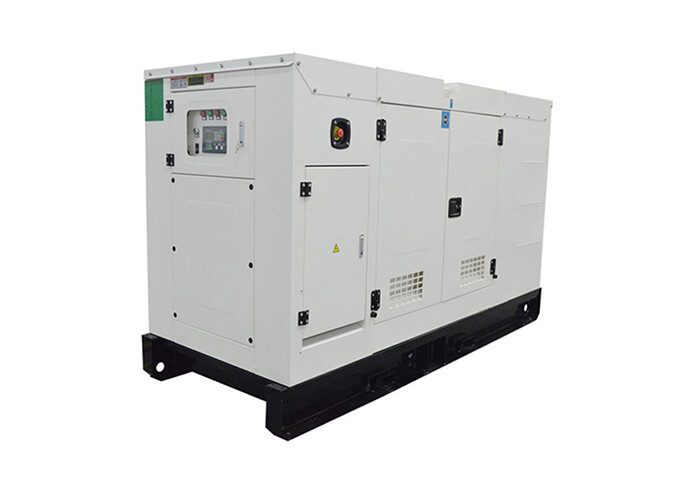

Cummins engine Water cooled 80kw 100kva Silent type Generator Set

SPECIFICATION:

1. SPECIFICATIONS OF GEN-SET
1.1 Set Model B-DC110S
1.2 Prime at 50HZ, 40℃ ambient 80kW 100KVA
1.3 Standby at 50HZ, 40℃ ambient 88kW 110KVA
1.4 Rated Gen-set output 230/400V  50Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 2270×1000×1480mm
1.7 Weight 1500kg
1.8 Fuel consumption 100% prime load 26L/h
1.9 Total heat radiated to ambient 19KW
1.10 Structure of Gen-set

The Gen-set adopt integrative structure,
engine is fix on high strength steel basic frame,
anti vibration instrument between the
engine and basic frame, cooling fan
have protecting cap, control cabinet
and circuit breaker installed on Gen-set.

1.11 Control system (Optional)

Basic control panel or Advanced
control panel  with automatically
start-up function and other function.

2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Cummins
2.2 Engine Model 6BT5.9- G2
2.3 Governor/Class Electrical
2.4 Cylinder NO. 6
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged/Aftercooled
2.9 Cooling mode Radiator cooled (enclose water)
2.10 Bore and stroke 102×120 mm
2.11 Compression ratio 17.5:1
2.12 Displacement 5.9 L
2.13 Engine Prime Power at 1500rpm 110KWm
2.14 Engine Standby Power at 1500rpm 120KWm
2.15 Battery capacity 100A/hr
2.16 Starting/Min temperature 4℃
2.17 Lubrication oil capacity 16L
2.18 Coolant  capacity  -  radiator  and engine (40℃) 28L
2.19 Exhaust temp - full load prime 553℃
2.20 Exhaust gas flow - full load prime 1500m 3/h
2.21 Exhaust gas back pressure max 76mmHg
2.22 Air flow - radiator (40℃  ambient) 2.3 m  3/s
2.23 Pusher fan head (duct allowance) 40℃ 10mmH 2O
2.24 Air intake - engine - full load prime 248m 3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type #0 Diesel (Natural temperature)
2.27 Filter system

Adopt  whole  changeable  lubricating
oil, fuel    filter and air filter

2.28 Exhaust system

Adopt  industrial  high  efficiency  muffler
and ripple pipe

3. SPECIFICATIONS OF ALTENATOR
3.1 Alternator Model Stamford/UCI274C
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 173.2A
3.12 Efficiency 0.906
3.13 Insulation class H
3.14 Protection class IP23



cc344-11


Description:



1. Original Cummins engine

2. Alternator: Italy Mecc alte / Stamford

3. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing.

4. ATS cabinet

5. Type: Silent type, weather proof, Trailer type

Applications:

1. Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake

Competitive Advantage:



1. User friendly with low emissions

2. More power reserve, better performance

3. Fast delivery. Big quantity of Engines in stock.

4. Good parts commonality

5. Original EURO ITALY engine , good quality , good price.

Packaging & Shipping----

Delivery Time: 30 days after deposit, By Sea

Package: nude packing or plywooden case



FAQ


Q1: What is your warranty period?

A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).



Q2: Does your generator have global warranty?

A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.



Q3: What is your payment terms?

A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.

L/C Irrevocable L/C at sight.



Q4: What is your delivery time?

A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.



Q5: Can the generators be customized?

A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.



Q6: Can you use our logo?

A6: Yes. For mass orders, we can use customer's logo instead of ours.
