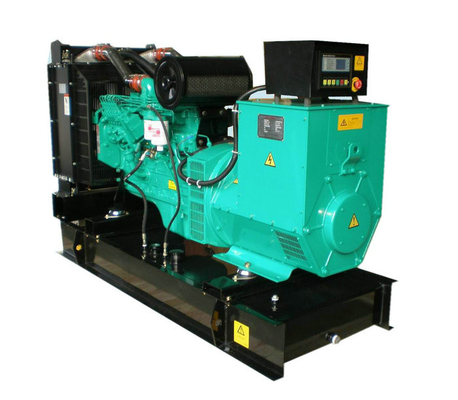

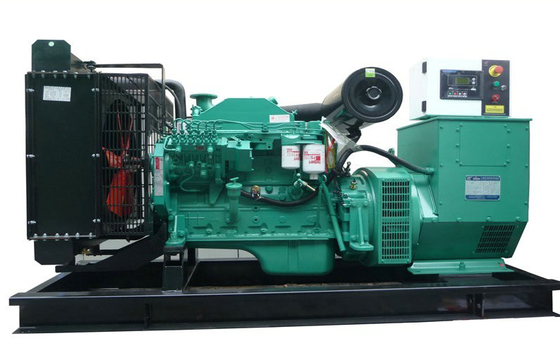

120KW Cummins Diesel Generators Electric Genset 150kva Open type
|
GENERATOR SET |
|
|
Model |
PF-DC150 |
|
Prime power (KW/KVA) |
150/120(KVA/KW) |
|
Standby power (KW/KVA) |
163/130(KVA/KW) |
|
Rated Voltage |
400V/230V |
|
Phase Number |
3 |
|
Power Factor |
0.8 COSØ |
|
Genset Type |
Soundproof/Silent type |
|
Net Weight |
2300 KG |
|
Coupling Method |
SAE Disc-coupling |
|
Dimension(L*W*H)(mm) |
2274*980*1472 |
|
DIESEL ENGINE |
|
|
Brand & Model |
Cummins 6CTAA8.3-G2 |
|
Rated Speed |
1500RPM |
|
Cylinder Number |
6L |
|
Bore*Stroke |
114*135 mm |
|
Displacement |
30.84m3/min |
|
ALTERNATOR |
|
|
Alternator Brand & Model |
Stamford 274E |
|
Type |
Brushless & self-excited, AVR regulation |
|
Phase Number/Poles |
3 Phase 4 wires |
|
Voltage |
400V |
|
Frequency |
50HZ |
|
Power Factor |
0.8 |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers
Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours
If have any questions, please contact us. Your inquiry would be appreciated.
