Xichai FAW Engine Diesel Power Generator Set Soundproof type 16KW 20KVA

1 SET
MOQ
Negotiation
Price
Xichai FAW Engine Diesel Power Generator Set Soundproof type 16KW 20KVA
Features Gallery Product Description Request A Quote
Features
Specifications
Output Power: 16KW 20KVA
Frequency: 50/60HZ
Voltage: 220v - 690v Optional
Engine: Cummins, Perkins, Deutz, FPT, Chinese Brand For Optional
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional
Controller: Deepsea, Smartgen, Harsen For Optional
MCCB: ABB Or Delixi
Cooling System: Water Cooled
Genset Type: Open Type, Silent Type, Container Type, Trailer Type For Optional
ATS: Optional
High Light:

industrial diesel generators

,

diesel silent generator
Basic Infomation
Place of Origin: Jiangsu of China
Brand Name: GPRO
Certification: ISO,CE Certification
Model Number: GP22FWS
Payment & Shipping Terms
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
Product Description

Xichai FAW Engine Diesel Power Generator Set Soundproof type 16KW 20KVA





Genset

Model Number

 GP22FWS

Prime Power

20/16(KVA/KW)

Standby Power

22/18(KVA/KW)

Frequency

50HZ

Phase Number

3

Power factor

0.8 COSØ

Rated Voltage

400/230V

Net Weight

400KG

Dimension(L*W*H)(mm)

1800*750*800







Engine

Engine Mode

 4DW81-23

Engine Speed

1500 RPM

Fuel Consumption   (G/KW.H)

245

Cylinder Number

4L

Bore/Stroke

90*100 mm

Displacement

2.545L





Alternator

Alternator model

Wattek 184E

Starting Mode

24V Electric Starting

Run Time (50% Load)

10-12 hours

Coupling

SAE Disc-coupling

Phase/Poles

3 Phase 4 Wire

Excitation

Brushless, self-excited, AVR regulation

Insulation System

Class H

Protection Class

IP23





Xichai FAW Engine Diesel Power Generator Set Soundproof type 16KW 20KVA 0


Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card

Optional supply scope:
1.ATS 2. SynchronizationSystem 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump

Advantages:
. A strong R&D team with rigorous selection and trainning
. Several years experiences in desinging and manufacturing diesel generator sets.
. Good reputation for reliable quality and reasonable price
. Advanced production line with skilled workers

Sales Promises:
. Our company provides a full line of brand new and high quality products which are strictly tested before shipment
. Quality warranty is according to our standard conditions: One year or 1000 running hours

If have any questions, please contact us. Your inquiry would be appreciated.

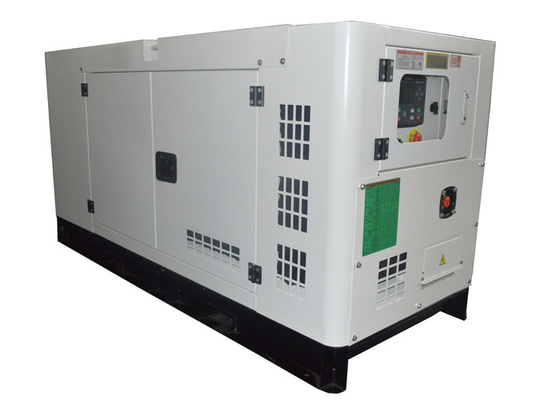

Xichai FAW Engine Diesel Power Generator Set Soundproof type 16KW 20KVA 1

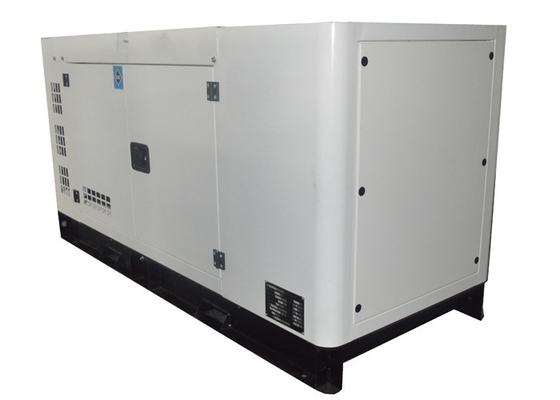

Xichai FAW Engine Diesel Power Generator Set Soundproof type 16KW 20KVA 2
