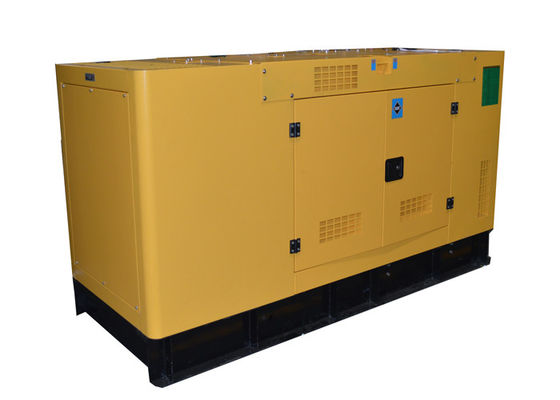

Italy FPT iveco diesel generators silent 45kva 50kva for construction

1 set
MOQ
Negotiation
Price
Italy FPT iveco diesel generators silent 45kva 50kva for construction
Features Gallery Product Description Request A Quote
Features
Specifications
Power(Prime/Standby): 45KVA/36KW
Frequency: 50HZ / 60HZ
Current: 250A
Voltage: 220/380V
Engine: IVECO / NEF45Am1A
Controller: Smartgen / DeepSea
MCCB: Delixi /ABB
Sound Level/db: 72dB 7 Meter
Warranty: 1 Year Or 1000 Hours
Alternator: Original Stamford
High Light:

power generating set

,

silent diesel generators

Basic Infomation
Place of Origin: WUXI
Brand Name: GPRO
Certification: ISO9001/ISO14001/CE/PVOC
Model Number: GP50FPS
Payment & Shipping Terms
Packaging Details: poly wooden case
Delivery Time: 25 days
Supply Ability: 500 sets / Month
Product Description

Italy FPT iveco diesel generators silent 45kva 50kva for construction


SPECIFICATION:



45KVA Silent type generator set specification:



1.1 Set Model GP50FPS
1.2 Prime at 60HZ, 40℃ ambient 36KW  45KVA
1.3 Standby at 60HZ, 40℃ ambient 40KW   50KVA
1.4 Rated Gen-set output 220/380V  60Hz
1.5 Rated Relative humidity ≤ 60 %
1.6 Dimension (L×W×H) 2400*950*1200mm
1.7 Weight 1800kg
1.8 Fuel consumption 100% prime load 31.8L/h
1.9 Total heat radiated to ambient 26KW
1.10 Noise Level at 7m (Normal/Super) 72dB
1.11 Structure of Gen-set The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
1.12 Control system (Optional) Basic control panel or Advanced control panel  with automatically  start-up function and other function.





45kva IVECO engine specification:



2. SPECIFICATIONS OF ENGINE
2.1 Engine Brand Original Italy IVECO
2.2 Engine Model NEF45Am1A
2.3 Governor/Class Electrical
2.4 Cylinder NO. 4
2.5 Engine build Line
2.6 Fuel spray pattern PT direct injection
2.7 start-up method 24V, electric
2.8 Aspiration Turbocharged/Charged air cooled
2.9 Cooling mode Radiator cooled (enclose water)
2.10 Bore and stroke 104×132 mm
2.11 Compression ratio 16.5:1
2.12 Displacement 4.5 L
2.13 Engine Prime Power at 1800rpm 45KWm
2.14 Engine Standby Power at 1800rpm 50KWm
2.15 Battery capacity 120A/hr
2.16 Starting/Min temperature 4℃
2.17 Lubrication oil capacity 16L
2.18 Coolant  capacity  -  radiator  and engine (40℃) 28L
2.19 Exhaust temp - full load prime 518℃
2.20 Exhaust gas flow - full load prime 1500m 3/h
2.21 Exhaust gas back pressure max 75mmHg
2.22 Air flow - radiator (40℃  ambient) 3.5 m  3/s
2.23 Pusher fan head (duct allowance) 40℃ 13mmH 2O
2.24 Air   intake   -   engine-   full   load prime 498m 3/h
2.25 Standard Air intake temp 25℃
2.26 Fuel type #0 Diesel (Natural temperature)
2.27 Filter system Adopt  whole  changeable  lubricating  oil, fuel    filter and air filter
2.28 Exhaust system Adopt  industrial  high  efficiency  muffler and ripple pipe



Fuel consumption:



100% load L/h 11.3L Fuel consumption
80% load L/h 9.2L Fuel consumption
50% load L/h 6.4L Fuel consumption



Italy FPT iveco diesel generators silent 45kva 50kva for construction 0
Description:



1. Original Euro italy engine

2. Alternator: Italy Mecc alte / Stamford

3. Controller: Deepsea or Smartgen with or without AMF. Options: remote controller, synchronizing.

4. ATS cabinet

5. Type: Silent type, weather proof, Trailer type


Italy FPT iveco diesel generators silent 45kva 50kva for construction 1
Applications:

1.Industrial area: real estate, hospital, hotel, bank, construction, factory, oil field, airport, mining
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake

Competitive Advantage:


1. User friendly with low emissions

2. More power reserve, better performance

3. Fast delivery. Big quantity of Engines in stock.

4. Good parts commonality

5. Original EURO ITALY engine , good quality , good price.



Company Details:

Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.



Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.



2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


If you are interested, please contact with us at any time!



Italy FPT iveco diesel generators silent 45kva 50kva for construction 2
