Auto start soundproof diesel 80kva generator set France SDMO type super silent
Specification:
| 1. SPECIFICATIONS OF GEN-SET |
| 1.1 |
Set Model |
GP80PS |
| 1.2 |
Prime at 50HZ, 40℃ ambient |
64KW /80KVA |
| 1.3 |
Standby at 50HZ, 40℃ ambient |
70KW 88KVA |
| 1.4 |
Rated Gen-set output |
230/400V 50Hz |
| 1.5 |
Rated Relative humidity |
≤ 60 % |
| 1.6 |
Dimension (L×W×H) |
3550×1120×1450 mm |
| 1.7 |
Weight |
1400kg |
| 1.8 |
Fuel consumption 100% prime load |
22,6 l/hr |
| 1.9 |
Noise Level at 7 (Normal/Super) |
75/65dB |
| 1.10 |
Structure of Gen-set |
The Gen-set adopt integrative structure,
engine is fix on high strength steel
basic frame, anti vibration
instrument between the engine
and basic frame, cooling fan
have protecting cap, control
cabinet and circuit breaker installed
on Gen-set
|
| 1.11 |
Control system (Optional) |
Basic control panel or
Advanced control panel with
automatically start-up function
and other function
|
| 2. SPECIFICATIONS OF ENGINE |
| 2.1 |
Engine Brand |
UK Perkins |
| 2.2 |
Engine Model |
1104A-44TG2 |
| 2.3 |
Governor/Class |
Electronic |
| 2.4 |
Cylinder NO. |
4 |
| 2.5 |
Engine build |
Vertical in-line |
| 2.6 |
Fuel spray pattern |
direct injection |
| 2.7 |
Aspiration |
Turbocharged, air-to-air charge cooled |
| 2.8 |
Cooling mode |
Radiator cooled (enclose water) |
| 2.9 |
Bore and stroke |
105×127mm |
| 2.10 |
Compression ratio |
18·3 : 1 |
| 2.11 |
Displacement |
4.41L |
| 2.12 |
Engine Prime Power at 1500rpm |
89KWm |
| 2.13 |
Engine Standby Power at 1500rpm |
97.9KWm |
| 2.14 |
Start-up mode |
12V/24V, electric |
| 2.15 |
Battery capacity |
/ |
| 2.16 |
Starting/Min temperature |
/ |
| 2.17 |
Lubricating oil consumption |
Lubricating oil consumption
less than 10% Fuel consumption
|
| 2.18 |
Lubrication oil capacity |
8 litres |
| 2.19 |
Coolant capacity – radiator and engine (40℃) |
12.6litres |
| 2.20 |
Exhaust temp – full load prime |
514°C |
| 2.21 |
Exhaust gas flow – full load prime |
15,2m³/min |
| 2.22 |
Exhaust gas back pressure max |
15 kPa |
| 2.23 |
Air flow – radiator (40℃ ambient) |
/ |
| 2.24 |
Pusher fan head (duct allowance) 40℃ |
/ |
| 2.25 |
Air intake – engine– full load prime |
6,01m³/min |
| 2.26 |
Standard Air intake temp |
25℃ |
| 2.27 |
Fuel type |
#0 Diesel (Natural temperature) |
| 2.28 |
Filter system |
Adopt whole changeable
lubricating oil, fuel filter and air filter
|
| 2.29 |
Exhaust system |
Adopt industrial high
efficiency silencer and
flexible bellows
|
| 2.30 |
Engine derating – altitude |
/ |
| 2.31 |
Engine derating – temperature |
/ |
| 3. SPECIFICATIONS OF ALTENATOR |
| 3.1 |
Alternator Model |
STAMFORD / UCI224G |
| 3.2 |
Alternator Type |
A.C. Synchronous |
| 3.3 |
Rated Voltage |
230/400V |
| 3.4 |
Rated Frequency |
50HZ |
| 3.5 |
Rated speed |
1500 RPM |
| 3.6 |
Voltage regulation mode |
Auto |
| 3.7 |
Alternator voltage regulation |
±0.5％ |
| 3.8 |
Exciting mode |
Brushless self exciting |
| 3.9 |
Power factor |
0.8 (lagging) |
| 3.10 |
Phase & wires |
3 phase 12 wires |
| 3.11 |
Rated currency |
144.3A |
| 3.12 |
Efficiency |
0.903 |
| 3.13 |
Insulation class |
H |
| 3.14 |
Protection class |
IP23 |
| 3.15 |
Single load step to NFPA110 |
100% |
| 3.16 |
Standards |
IEC34-1 |
| 3.17 |
Max. Ambient Temperature |
40℃ |
| 3.18 |
Min. Ambient Temperature |
- 20℃ |
| 3.19 |
Max. altitude |
1000m |
| 3.20 |
Weight |
415Kg |
Description:
1. Power Range: 10KVA to 1760KVA
2. Engine: Original UK Perkins diesel engine
3. Alternator: Stamford / Mecc Alte
4. Controller: Deepsea or Smartgen
5. Type: Open type, Soundproof type, weatherproof type, Trailer type, Container type, etc
7. Color: Can be customized
Applications:
1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,
6. Standby power or main power, indoor or outdoor using.
Competitive Advantage:
1. Engine low fuel consumption.
2. All orignal engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel skid type base– frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.

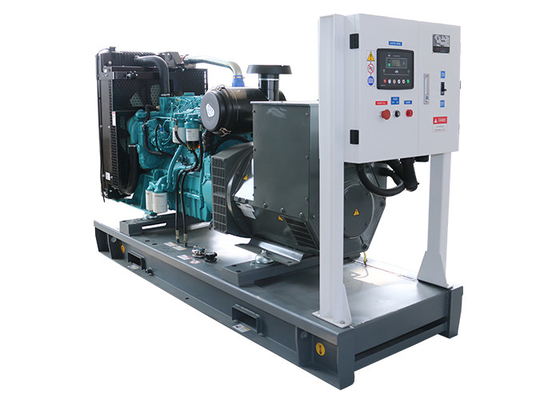

Generators photos:
