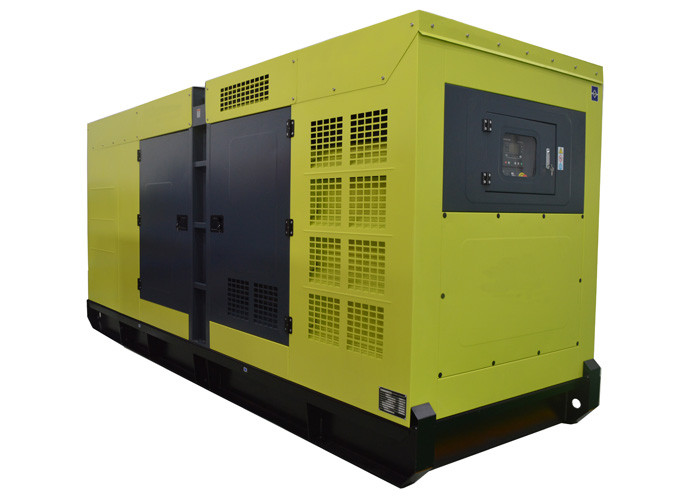

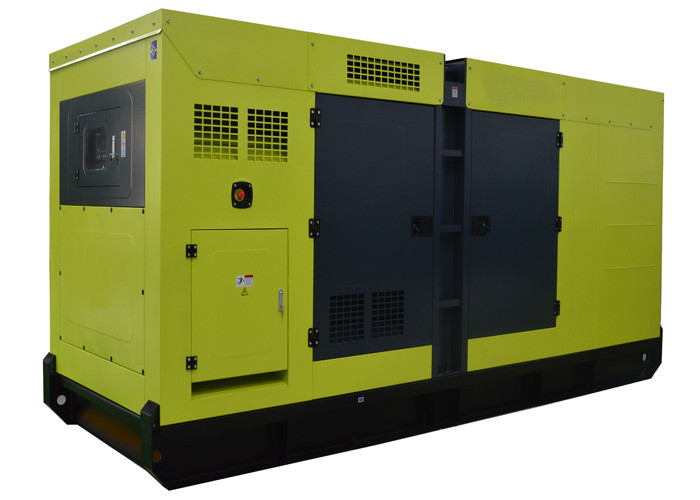

200KW 250KVA Cummins Diesel Generators Power Genset with Water Cooling system
|
Technical data
|
|
Genset Model
|
GP250DCS
|
|
Prime Power
|
200KW/250KVA
|
|
Rated Voltage
|
400/230V
|
|
Frequency
|
50/60Hz
|
|
Power Factor
|
0.8(lagging)
|
|
The regulating rate of steady voltage
|
≤±0.5%
|
|
The regulating rate of instantaneous voltage
|
≤-15%/ +20%
|
|
The time of steady voltage
|
≤1.5sec
|
|
The waving rate of voltage
|
≤1.0%
|
|
The regulating rate of steady frequency
|
≤3%
|
|
The regulating rate of instantaneous frequency
|
≤±10%
|
|
The time of steady frequency
|
3sec
|
|
Dimension (L×W×H) (mm)
|
2650*760*1600
|
|
Genset weight (kg)
|
1450
|
|
Diesel Engine
|
|
Brand
|
CUMMINS
|
|
Model
|
6LTAA8.3-G2
|
|
Number of Cylinders
|
6
|
|
Rotating Speed
|
1500RPM
|
|
Cycle
|
Four stroke
|
|
Type
|
waste gas turbine boost,direct spurting type
|
|
Bore×Stroke(mm)
|
100*127
|
|
Displacement(L)
|
6
|
|
Lubricating Capacity(L)
|
19
|
|
Speed Governor
|
Electrical
|
|
Cooling System
|
Water-cooled
|
|
Speed Stability (%)
|
≤5%
|
|
Fuel Consumption at 100% Load
|
208g/kw.h
|
|
Starting Method
|
DC24V Electrical starting
|
|
Alternator
|
|
Brand
|
Stamford
|
|
Model
|
UCD274K
|
|
Number of Phase
|
3
|
|
Connecting Type
|
Three Phase and Four Lines
|
|
Number of Bearing
|
1
|
|
Grading Protection
|
IP23
|
|
Altitude
|
≤1000m
|
|
Exciter Type
|
Brushless (AVR automatic voltage regulating)
|
|
Insulation Class
|
H degree
|
|
The components of the genset
|
|
(1) Cummins Diesel Engine; (2) Stamford Alternator; (3) Control Panel
|
|
Control Panel
|
|
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.
|
There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.
ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.
Standard Supply Scope:
Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
Documents included: manual book, product qualified card
Optional supply scope:
1.ATS
2. SynchronizationSystem
3. External daily fuel tank
4. Silent Canopy
5. Trailer
6. Auto Fuel Pump
7. Fuel and Water Separator
8. Lub Oil Heater
9. Coolant Heater
10. Fuel Drain Pump
